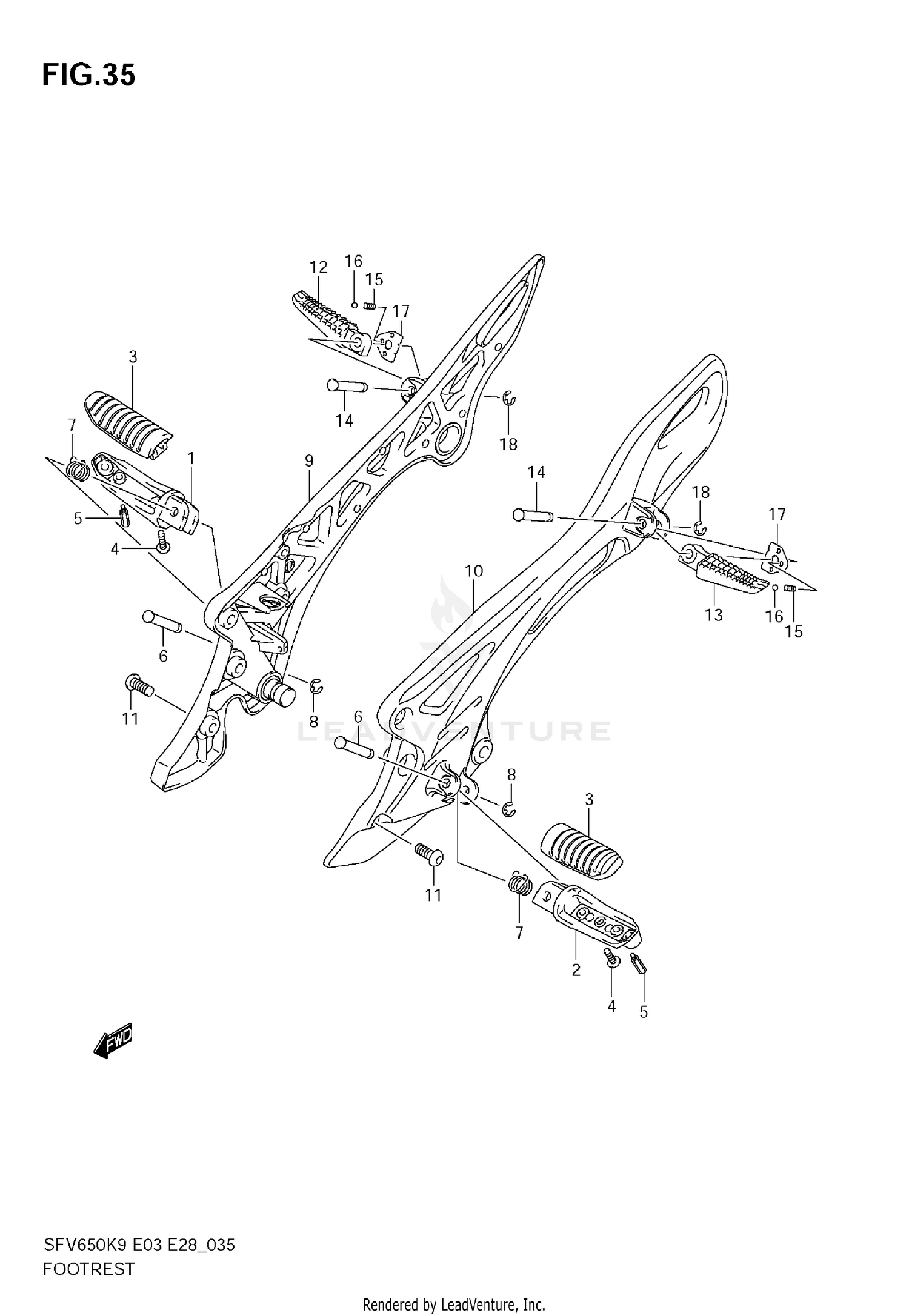

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAR, FR FOOTREST RH
43511-44G10
|
$59.97 | ||
|
Available to order. Add to View Price |
|||
|
#2
BAR, FR FOOTREST LH
43521-44G10
|
$58.30 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER,FOOTREST BAR
43550-44G10
|
$36.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
02142-0512A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, BANK SENSOR
43576-48B30
|
$16.22 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN
09208-08019
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING
09448-14046
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
E-RING
08332-1106A
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET,FOOTRES
43510-44H00
Superseded by 43510-44H00-13L
|
$297.68 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET,FOOTRES
43521-44H00
Superseded by 43521-44H00-13L
|
$242.32 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
09106-08161
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAR,PILLION FOOTREST RH
43611-37H00
Superseded by 43611-37H20
|
$48.24 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAR,PILLION FOOTREST LH
43621-37H00
Superseded by 43621-37H20
|
$46.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN
09208-08020
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING
09440-05003
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
BALL
06111-07004
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#17
.PLATE, PILLION FOOTREST
43816-01H10
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
E-RING
08332-1106A
|
$1.73 | ||
|
Unavailable |
|||
