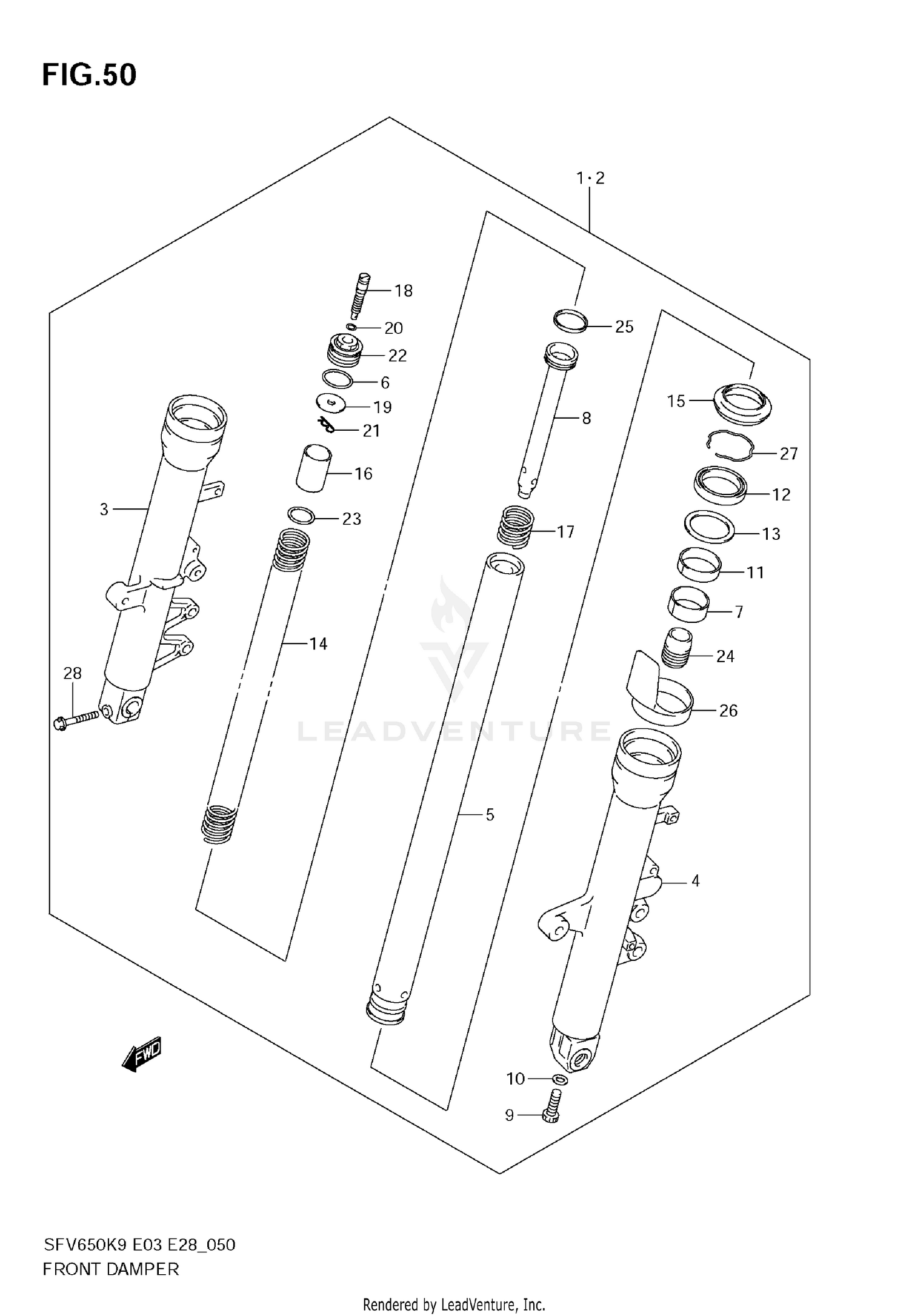

Front Damper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER ASSY, FRONT FORK RH
51103-44H00
|
$1,023.58 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER ASSY, FRONT FORK LH
51104-44H00
|
$1,023.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE, OUTER RH
51130-17GA0
|
$376.98 | ||
|
Unavailable |
|||
|
#4
TUBE, OUTER LH
51140-17GA0
|
$517.43 | ||
|
Available to order. Add to View Price |
|||
|
#5
TUBE, INNER
51110-44H00
|
$505.36 | ||
|
Available to order. Add to View Price |
|||
|
#6
.O RING
51117-12C00
|
$4.94 | ||
|
Available to order. Add to View Price |
|||
|
#7
.BUSH, SLIDE
51121-44H00
|
$24.63 | ||
|
Available to order. Add to View Price |
|||
|
#8
CYLINDER
51146-17G20
|
$72.65 | ||
|
Unavailable |
|||
|
#9
BOLT, 8X27
51147-48130
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#10
.GASKET (8.2X13X1.5)
51148-36011
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSH, GUIDE
51152-01H10
|
$22.54 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL, OIL
51153-01H10
|
$33.24 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER, SEAL
51168-17G80
|
$6.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, FRONT
51171-44H00
|
$41.88 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL, DUST
51173-01H00
|
$14.38 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR, SPRING, 32.9X34X50
51176-12C10
|
$15.04 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, REBOUND
51177-17G50
|
$5.63 | ||
|
Unavailable |
|||
|
#18
.ADJUSTER BOLT,SPRING
51185-17G00
|
$34.56 | ||
|
Unavailable |
|||
|
#19
SEAT, SPRING
51186-12C00
|
$8.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
.O-RING (D:1.9,ID:8.6)
09280-09005
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, SEAT SPRING
51188-32B00
|
$86.27 | ||
|
Unavailable |
|||
|
#22
.BOLT,FORK
51189-12C00
|
$73.12 | ||
|
Available to order. Add to View Price |
|||
|
#23
JOINT, SPRING
51192-19C00
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIECE, OIL LOCK
51195-48B30
|
$23.47 | ||
|
Unavailable |
|||
|
#25
RING, PISTON
51196-12C00
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#26
PROTECTOR
51201-32F00
|
$26.62 | ||
|
Available to order. Add to View Price |
|||
|
#27
RING, STOPPER
51556-38B00
|
$8.92 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
51166-01H10
|
$10.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
