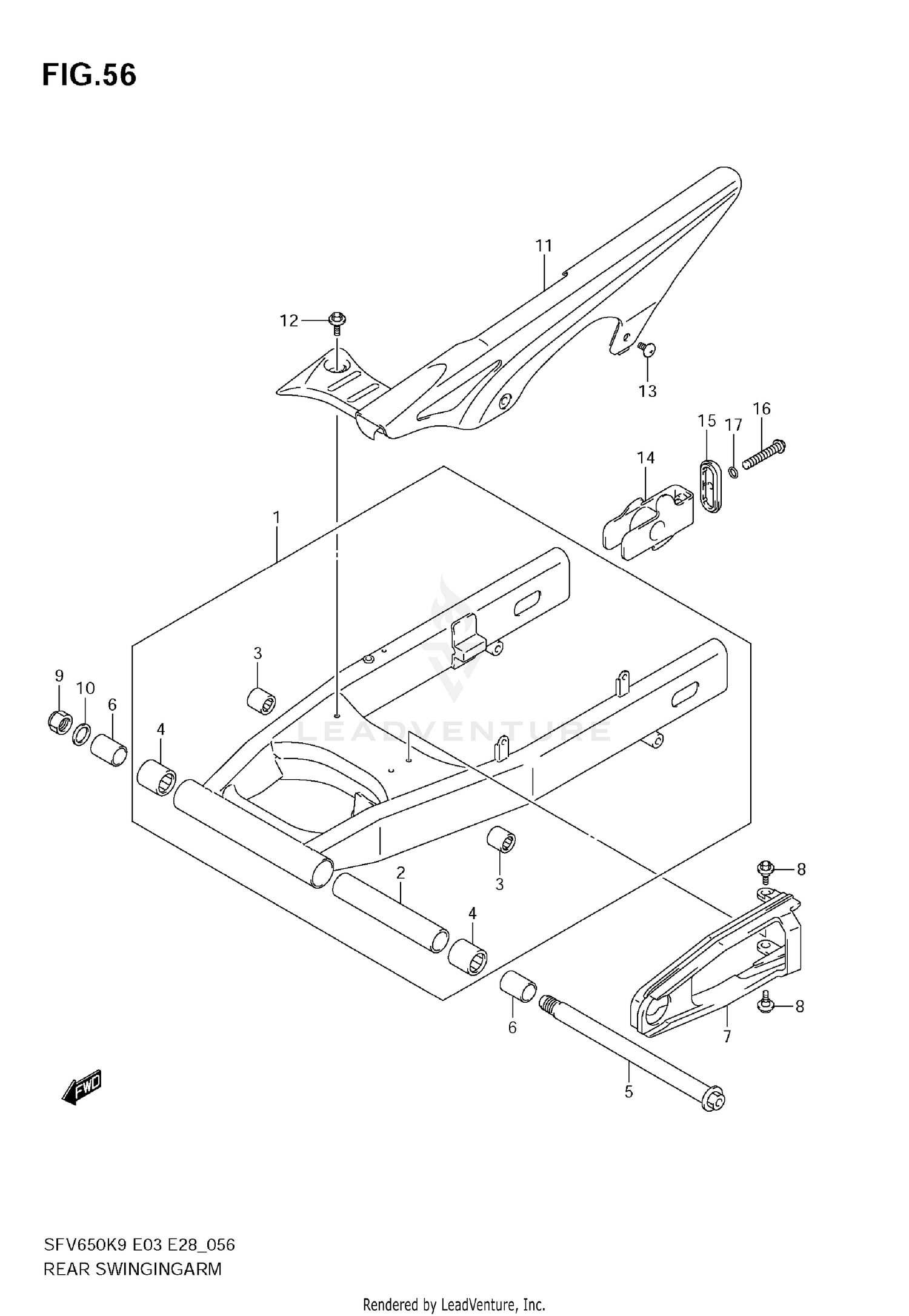

Rear Swingingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWINGINGARM ASS
61000-44H00-YAP
Superseded by 61000-44H01-YAP
|
$1,024.34 | ||
|
Available to order. Add to View Price |
|||
|
#2
.SPACER,RR SWGARM PIVOT,CENTE
61282-17C00
|
$32.08 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BEARING (17X24X25)
09263-17037
Superseded by 09263-17053
|
$27.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING (25X33X35)
09263-25059
Superseded by 09263-25073
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT,REAR SWINGINGARM PIVOT
61211-31E00
|
$144.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER, RR SWGARM PIVOT
61251-21E00
|
$33.92 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUFFER,CHAIN TOUCH DEFENSE
61273-44H00
Superseded by 61273-44H01
|
$38.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, CHAIN BUFFER
09111-06072
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, RR SWGARM PIVOT
09159-18007
|
$21.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, RR SWGARM PIVOT
09160-18030
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#11
CASE,CHAIN
61310-44H00
|
$103.28 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, PROTECTOR (6X16)
09111-06065
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW (6X16)
09139-06168
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#14
ADJUSTER,CHAIN
61410-44H00
|
$45.04 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, ADJUSTER GUIDE (SILVER)
61421-44H00-13L
|
$48.28 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, CHAIN ADJUSTER
09106-08119
|
$5.17 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, CHAIN ADJUSTER
09164-08015
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
