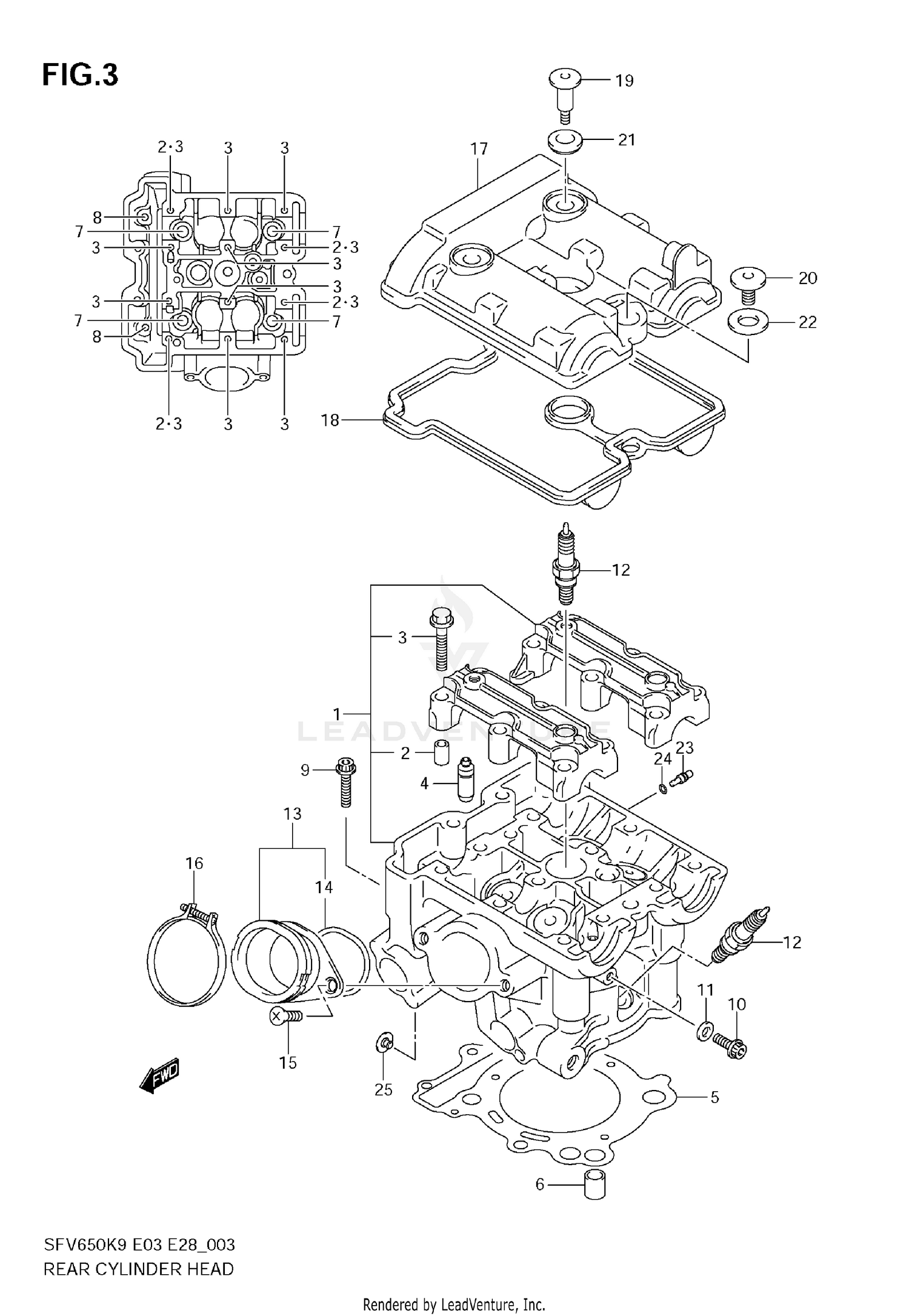

Rear Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER REAR
11103-44H00
|
$855.00 | ||
|
Unavailable |
|||
|
#2
PIN (6.2X8X11)
09206-08001
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (6X39)
09103-06026
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, VALVE
11115-18D72
|
$45.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
.GASKET,CYLINDER HEAD
11141-20F00
|
$57.79 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN
04211-13189
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOLT,CYL HEAD (10X160)
11117-44H00
|
$22.28 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (6X70)
09103-06103
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
07120-0640B
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
07120-0612B
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SPARK PLUG (NGK,CR8EIA-9)
09482-00556
|
$13.41 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPARK PLUG (DENSO,IU24D)
09482-00555
|
$23.03 | ||
|
Unavailable |
|||
|
#12
SPARK PLUG (NGK,CR9EIA-9)
09482-00558
|
$15.01 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPARK PLUG (DENSO,IU27D)
09482-00557
|
$21.29 | ||
|
Unavailable |
|||
|
#12
SPARK PLUG (NGK,CR7EIA-9)
09482-00554
|
$14.79 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPARK PLUG (DENSO,IU22D)
09482-00553
|
$19.09 | ||
|
Unavailable |
|||
|
#13
PIPE ASSY,INTAKE REAR
13102-17G10
Superseded by 13102-17G11
|
$63.51 | ||
|
Available to order. Add to View Price |
|||
|
#14
.O-RING (D:2.4,ID:47X42)
09280-46006
Superseded by 09280-46007
|
$8.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SCREW
02122-0616B
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP,INTAKE PIPE
13827-40H00
Superseded by 13827-40H01
|
$17.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
COVER,CYLINDER HEAD REAR
11172-19F20
|
$150.31 | ||
|
Available to order. Add to View Price |
|||
|
#18
.GASKET,CYLINDER HEAD COVER
11173-19F01
|
$44.01 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT (7X17.5)
09106-07009
Superseded by 09106-07021
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT (L:19)
09106-07010
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, CYL HEAD COVER (L:5.5
11191-27E00
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#22
CUSHION,HEAD COVER BOLT
11192-13E00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#23
JET (#80)
09493-80005
|
$17.58 | ||
|
Available to order. Add to View Price |
|||
|
#24
O RING (D:1.2,ID:4)
09280-04004
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#25
CAP,ENGINE MOUNTING RR RH
11151-27G00
Superseded by 11151-27G01
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
