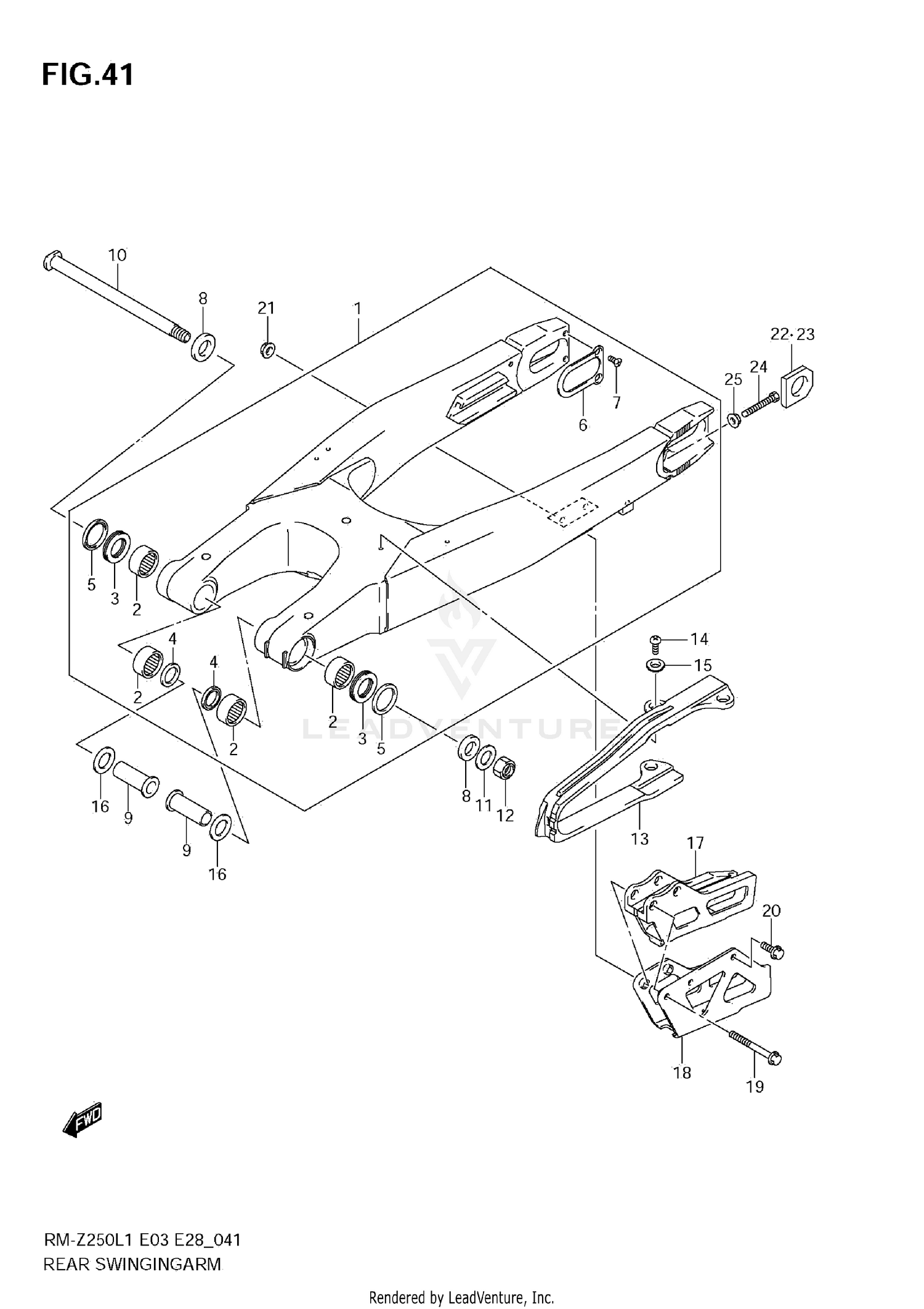

Rear Swinging Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWINGARM ASSY, REAR
61000-49H00
|
$1,838.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING (22X29X30)
09263-22070
|
$37.30 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BEARING (22X35X2)
09263-22064
|
$30.13 | ||
|
Available to order. Add to View Price |
|||
|
#4
.OIL SEAL
09285-22001
Superseded by 09285-22006
|
$4.81 | ||
|
Available to order. Add to View Price |
|||
|
#5
.SEAL,REAR SWGARM PIVOT,OUTER
61262-36E00
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, SWINGARM, REAR
61128-35G00
|
$15.73 | ||
|
Unavailable |
|||
|
#7
SCREW
02122-0410B
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER, PIVOT OUTER
61251-36E01
|
$17.47 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER, PIVOT INNER
61252-37F01
|
$49.83 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT, PIVOT
61211-35G00
|
$95.37 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
08322-0116B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
09159-16007
|
$15.81 | ||
|
Available to order. Add to View Price |
|||
|
#13
BUFFER, CHAIN TOUCH DEFENSE
61273-35G10
|
$60.36 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
02112-0508B
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
09169-05022
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
08211-22365
|
$6.50 | ||
|
Available to order. Add to View Price |
|||
|
#17
GUIDE, CHAIN
61341-35G10
|
$64.71 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE,CHAIN GUIDE
61342-37F00
|
$72.75 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT (6X45)
09103-06242
|
$3.44 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT (6X12)
09103-06233
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
08316-1006B
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
WASHER,CHAIN ADJUSTER,R
61445-28H11
|
$54.94 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER,CHAIN ADJUSTER,L
61446-35G01
|
$41.32 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT (8X50)
09100-08287
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
09159-08034
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
