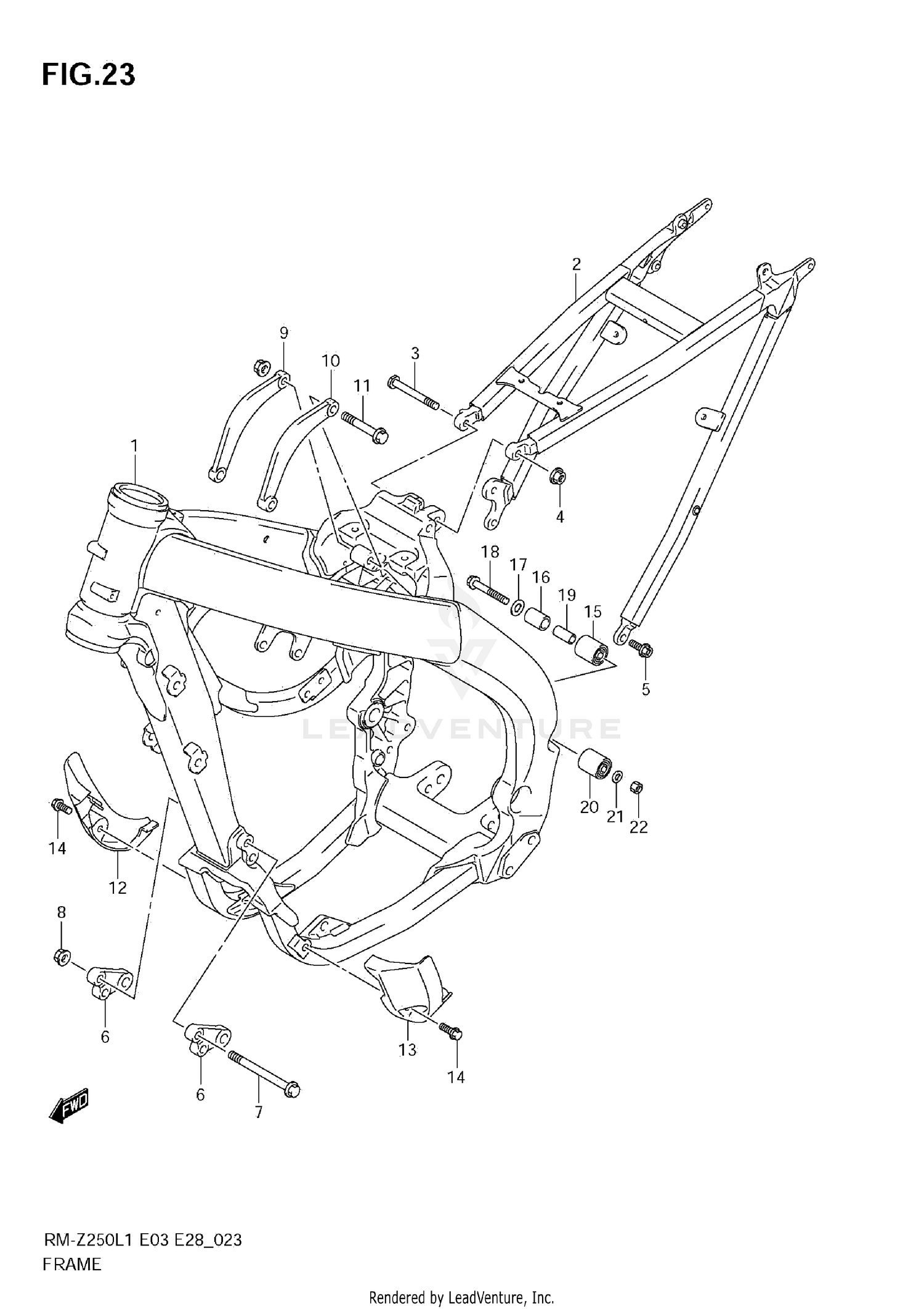

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
41100-49H10
|
$3,966.09 | ||
|
Available to order. Add to View Price |
|||
|
#2
RAIL, SEAT
41200-49H10
|
$724.74 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, UPPER
41311-28H20
|
$21.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
09159-08146
|
$8.08 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (8X20)
09103-08426
|
$5.88 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, ENGINE MOUNT FRONT
41991-10H01
|
$66.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (8X95)
09103-08433
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
09159-08146
|
$8.08 | ||
|
Unavailable |
|||
|
#9
BRACKET, MOUNT UPPER RH
41994-49H00
|
$122.98 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, MOUNT UPPER LH
41995-49H00
|
$117.06 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (8X55)
09103-08339
|
$4.44 | ||
|
Available to order. Add to View Price |
|||
|
#12
PROTECTOR, FRONT RH
42520-10H02
|
$34.47 | ||
|
Available to order. Add to View Price |
|||
|
#13
PROTECTOR, FRONT LH
42530-49H00
|
$30.74 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT (6X16)
09116-06200
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
ROLLER, CHAIN UPPER
43911-28H00
|
$11.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR, CHAIN ROLLER
43912-28H00
|
$5.32 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER (8.5X23X1.5)
09160-08081
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT (8X45)
09103-08207
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER (8.6X12.2X25.5)
09180-08214
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#20
ROLLER, CHAIN LOWER
43910-35G00
|
$73.58 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHIM (8X12X1)
09181-08111
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
08319-2108A
|
$2.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
