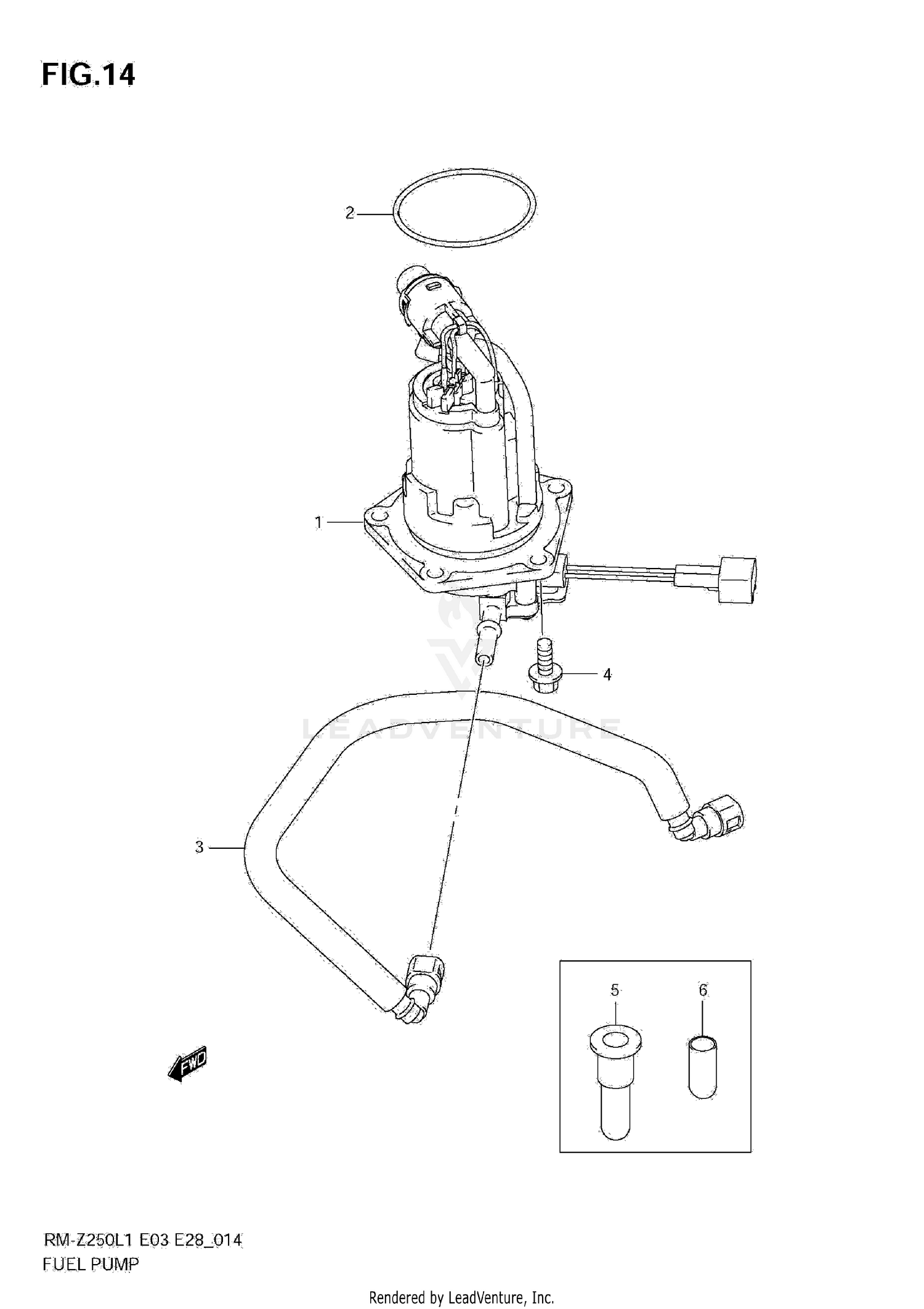

Fuel Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY, FUEL
15100-28H00
Superseded by 15100-28H11
|
$527.65 | ||
|
Available to order. Add to View Price |
|||
|
#2
O RING,FUEL PUMP
15111-28H00
|
$31.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE, FUEL
15810-49H10
|
$88.01 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01547-06207
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, FULE HOSE
15819-28H00
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, FUEL PUMP
15114-28H00
|
$5.84 | ||
|
Available to order. Add to View Price |
|||
