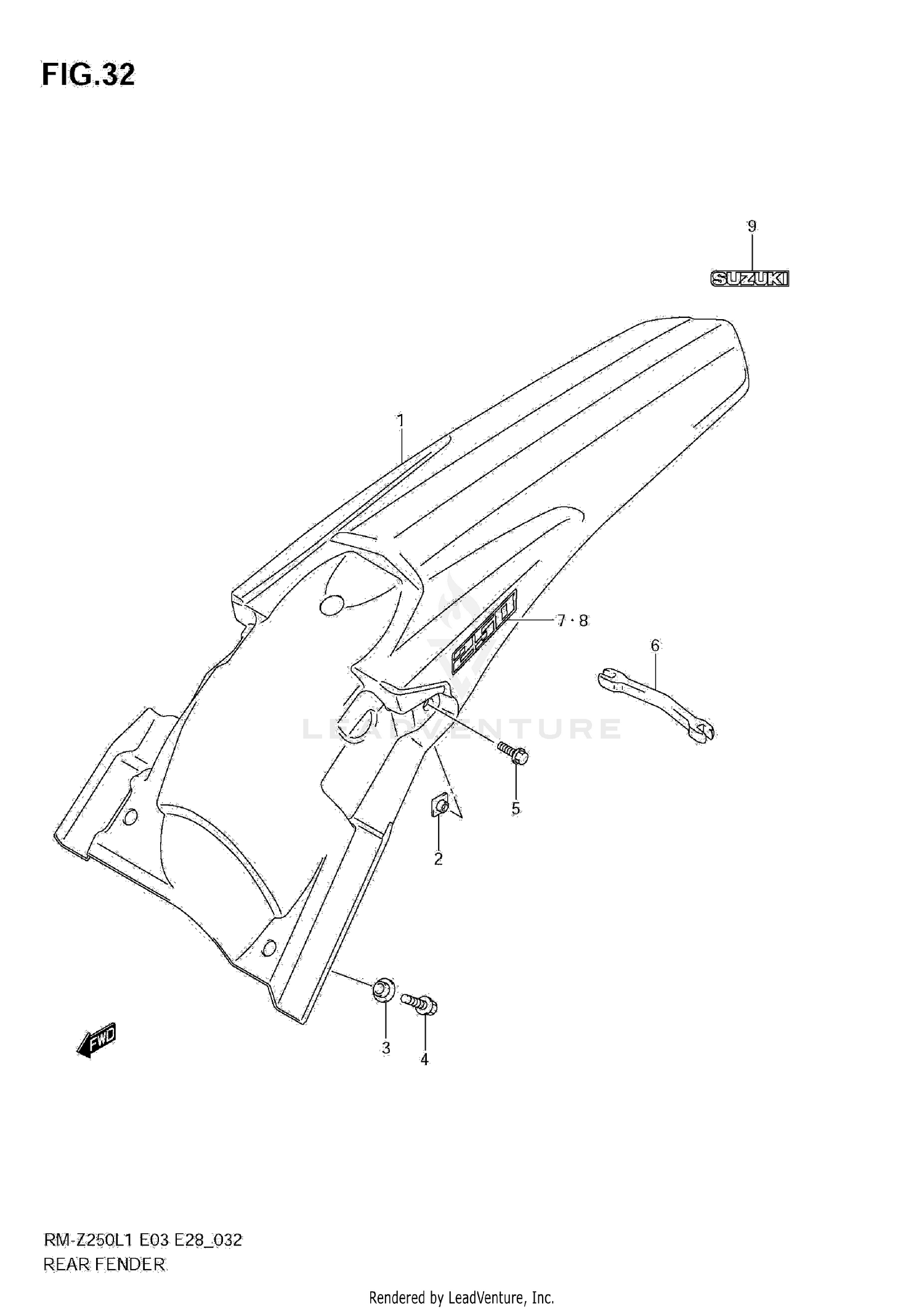

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, REAR (YELLOW)
63111-49H00-YU1
Superseded by 63111-49H01-YU1
|
$72.34 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT
63131-02J00
|
$14.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER
63191-28H00
|
$13.66 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01547-06207
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (6X16)
09103-06234
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
OPEN SPANNER (6.4X6.8)
09813-00134
|
$20.68 | ||
|
Available to order. Add to View Price |
|||
|
#7
TAPE, RH
68175-49H00-GY8
|
$19.61 | ||
|
Available to order. Add to View Price |
|||
|
#8
TAPE, LH
68176-49H00-GY8
|
$19.61 | ||
|
Available to order. Add to View Price |
|||
|
#9
EMBLEM,SUZUKI
68131-21H00-019
Superseded by 68131-21H01-019
|
$10.71 | ||
|
Available to order. Add to View Price |
|||
