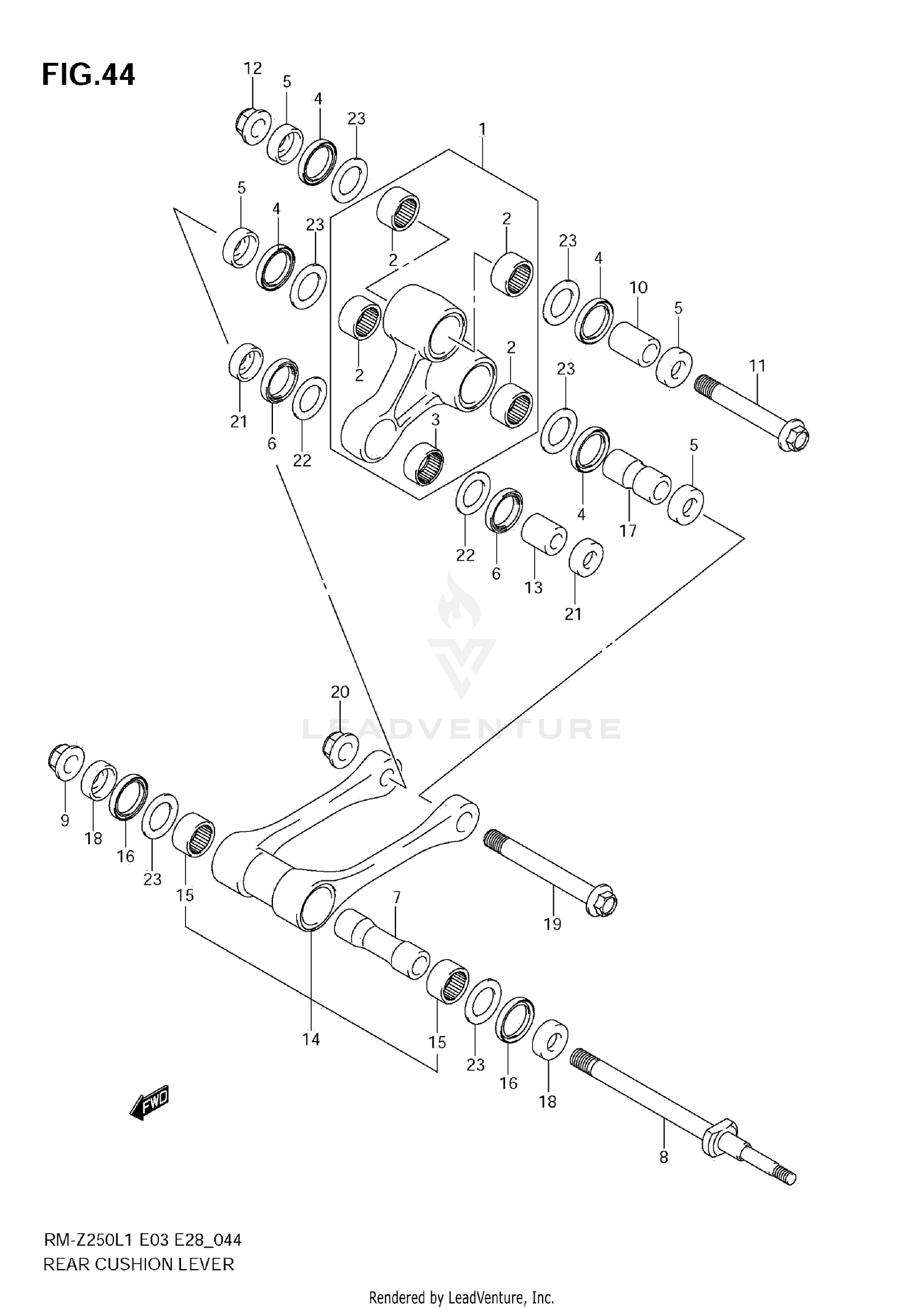

Rear Cushion Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER SET, REAR CUSHION
62600-28880
|
$514.74 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING (20X26X14)
09263-20090
|
$20.74 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING (16X22X12)
09263-16033
|
$25.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL (24X31X5)
09285-24001
|
$7.86 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER
62647-28H10
|
$25.43 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL (22X28X4)
09284-22003
|
$13.03 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER, RR CUSHION ROD
62317-28H10
|
$43.52 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, RR CUSHION ROD
62621-28H00
|
$52.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
09159-12056
|
$9.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER, CENTER (15X20X44)
62648-28H10
|
$25.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT,RR CUSHION LEVER UPPER
62658-37F10
|
$11.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
09159-12056
|
$9.25 | ||
|
Unavailable |
|||
|
#13
SPACER, REAR CUSHION LEVER
62684-28H10
|
$27.68 | ||
|
Available to order. Add to View Price |
|||
|
#14
ROD SET, REAR CUSHION LEVER
62600-28890
|
$379.57 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING (20X26X14)
09263-20090
|
$20.74 | ||
|
Unavailable |
|||
|
#16
OIL SEAL (24X31X5)
09285-24001
|
$7.86 | ||
|
Unavailable |
|||
|
#17
SPACER, RR CUSHION LOWER
62646-28H10
|
$35.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER
62647-28H10
|
$25.43 | ||
|
Unavailable |
|||
|
#19
BOLT,RR CUSHION LEVER LOWER
62657-37F10
|
$12.03 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
09159-12056
|
$9.25 | ||
|
Unavailable |
|||
|
#21
SPACER, SIDE
62686-28H10
|
$27.68 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM (16X28X0.5)
09181-16214
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER
08211-20301
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
