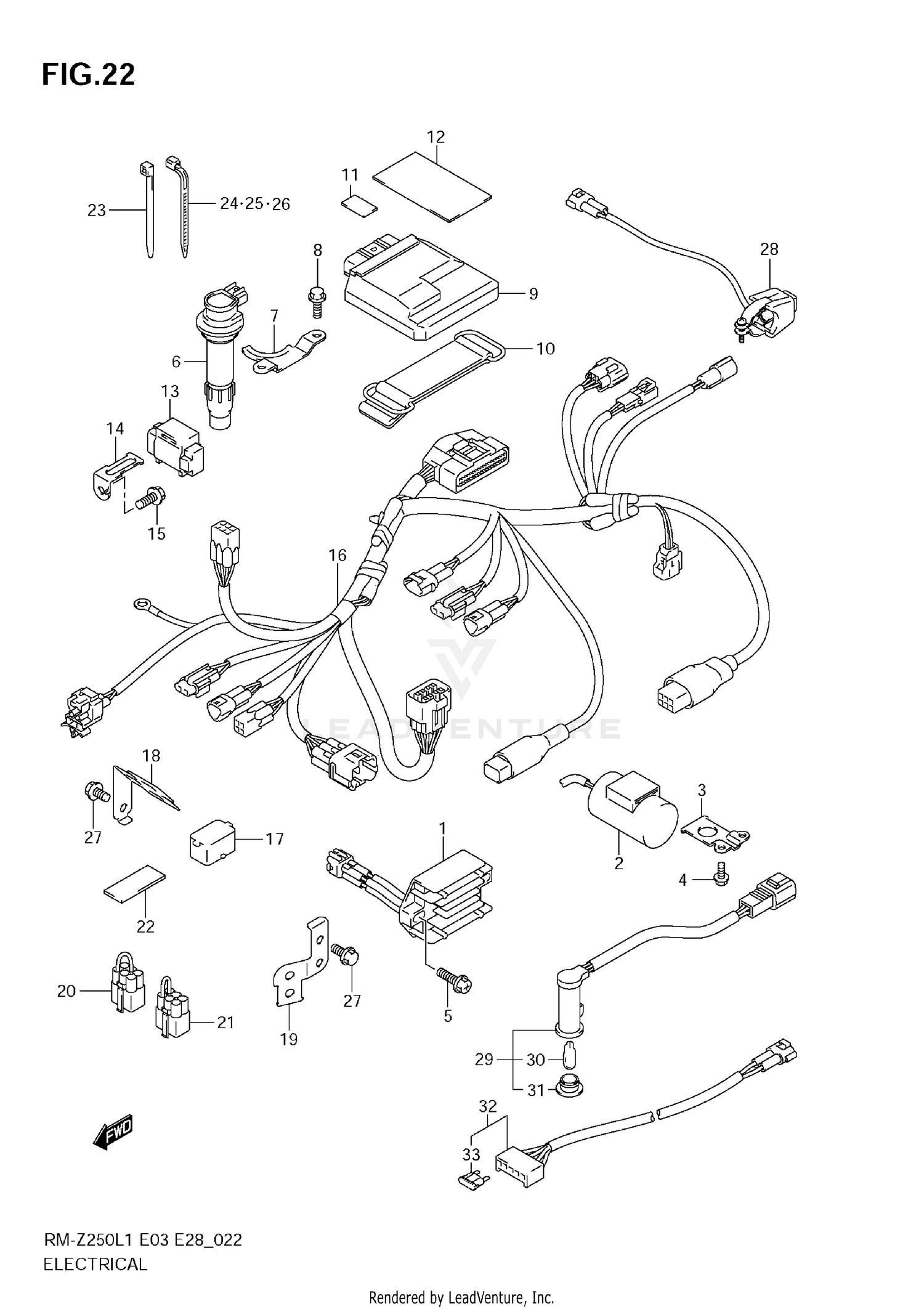

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RECTIFIER ASSY
32800-28H00
|
$262.36 | ||
|
Available to order. Add to View Price |
|||
|
#2
CONDENSER ASSY
33640-28H00
|
$206.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, CONDENSER
33641-28H00
|
$9.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X10)
09103-06188
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
02162-0620C
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
COIL ASSY, IGNITION
33410-49H00
|
$194.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
RETAINER, IGNITION COIL
33414-49H00
|
$12.21 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
01550-0610B
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
CONTROL UNIT, FI
32920-49H20
|
$754.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, FI CONTROL
32942-14301
|
$15.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
PROTECTOR, CDI (30X50X3.0)
33652-36000
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#12
PROTECTOR, CDI (30X50X3.0)
33652-36000
|
$2.88 | ||
|
Unavailable |
|||
|
#13
SENSOR ASSY,FUEL CUT
33960-06G10
|
$116.08 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET
33961-49H00
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW (6X16)
02162-0616A
Superseded by 02162-0616B
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#16
HARNESS, WIRING
36610-49H10
|
$495.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP,TS
36654-46H00
Superseded by 36654-46H01
|
$14.24 | ||
|
Unavailable |
|||
|
#18
BRACKET, COUPLER
36672-49H00
|
$7.05 | ||
|
Unavailable |
|||
|
#19
BRACKET, COUPLER
36672-49H10
|
$10.71 | ||
|
Available to order. Add to View Price |
|||
|
#20
WIRE,SHORT
36852-28H00
Superseded by 36852-28H01
|
$14.89 | ||
|
Available to order. Add to View Price |
|||
|
#21
WIRE,SHORT
36852-49H00
Superseded by 36852-49H01
|
$14.81 | ||
|
Available to order. Add to View Price |
|||
|
#22
PROTECTOR,WIRING HARNESS (20X
36920-45G00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP (L:95)
09407-10403
|
$1.58 | ||
|
Unavailable |
|||
|
#24
CLAMP (L:95)
09407-11401
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
01550-0610A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#28
SWITCH ASSY, ENGINE STOP
37820-49H00
|
$66.95 | ||
|
Available to order. Add to View Price |
|||
|
#29
LAMP ASSY, FI INDICATOR
36380-28H00
|
$87.53 | ||
|
Available to order. Add to View Price |
|||
|
#30
BULB (12V3.4W)
09471-12028
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#31
LENS (RED)
36321-28H00
|
$11.95 | ||
|
Available to order. Add to View Price |
|||
|
#32
WIRE, BATTERY
36890-28H00
|
$51.96 | ||
|
Available to order. Add to View Price |
|||
|
#33
FUSE (10A)
09481-10101
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
