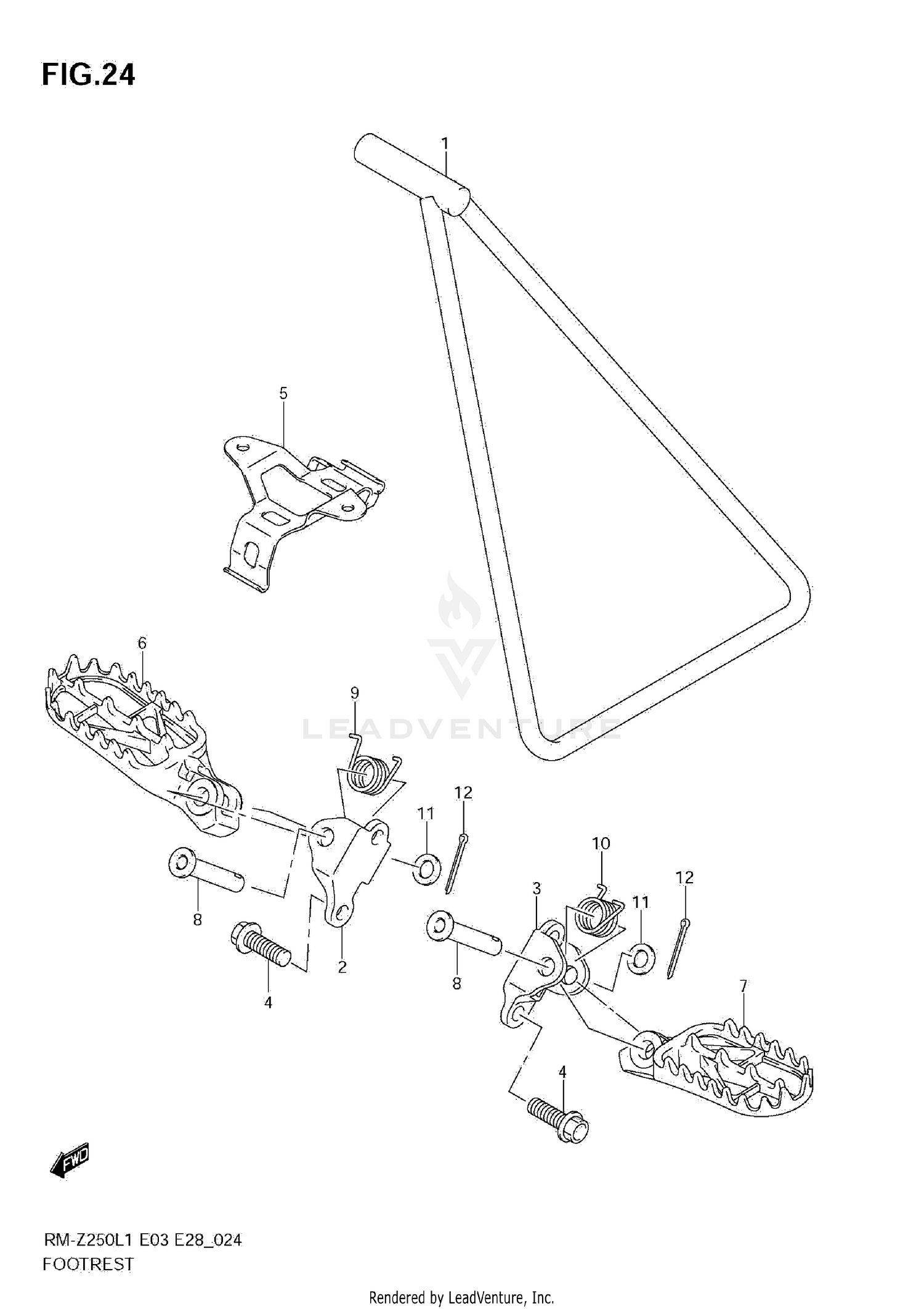

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND
42310-28H00
|
$119.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, FOOTREST RH
41855-28H10
|
$170.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, FOOTREST LH
41865-28H10
|
$164.43 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (10X25)
09103-10415
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, ECU
41347-49H00
|
$12.71 | ||
|
Unavailable |
|||
|
#6
FOOTREST, RH
43551-28H10
|
$98.37 | ||
|
Available to order. Add to View Price |
|||
|
#7
FOOTREST, LH
43561-28H10
|
$96.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN
09200-10019
|
$8.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING
09448-21012
|
$8.04 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING
09448-21013
|
$7.63 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (10.5X18X1)
09160-10121
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#12
COTTER PIN
04111-2520A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
