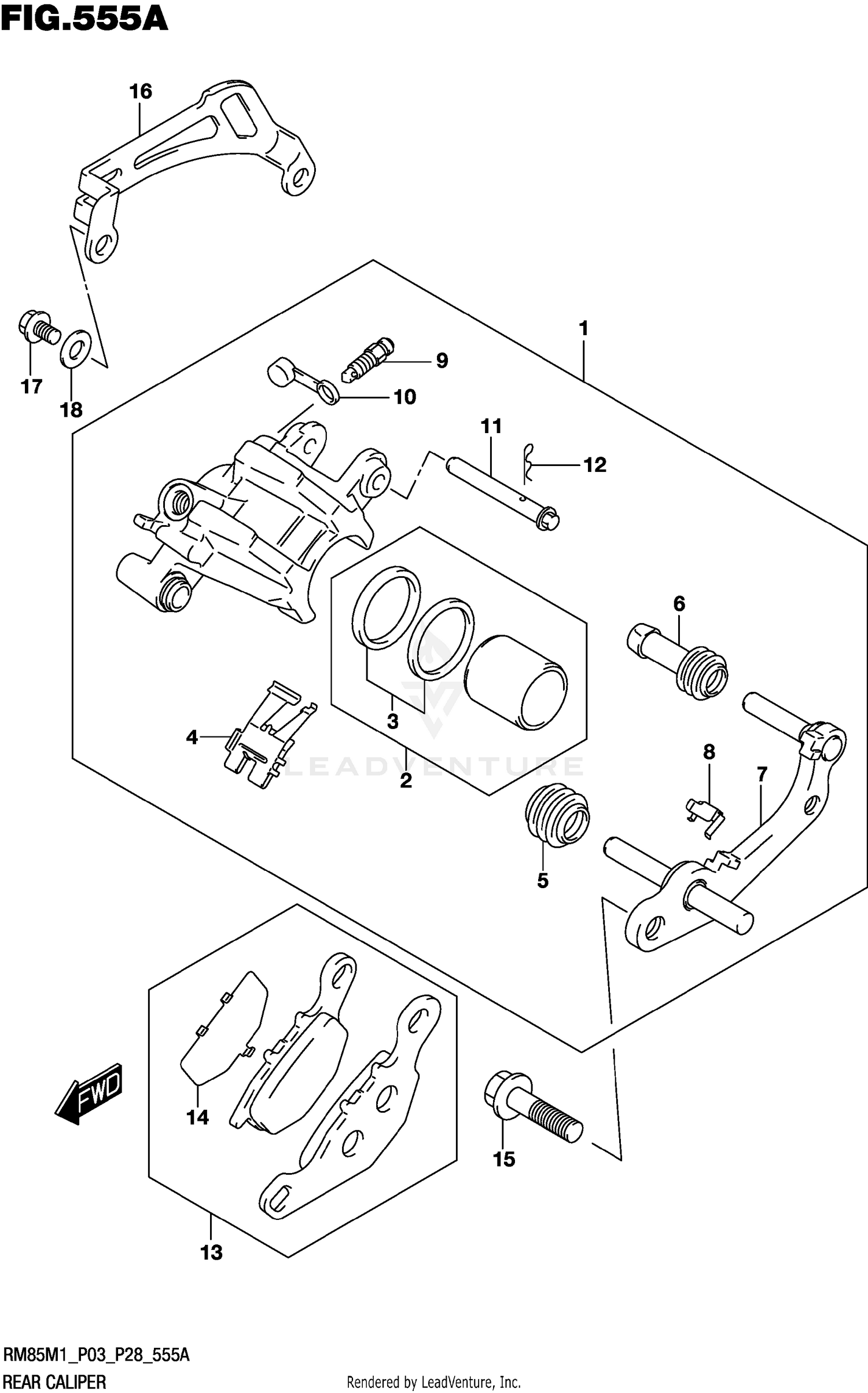

Rear Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CALIPER ASSY, REAR
69100-03B10-999
|
$325.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
.PISTON SET
59300-01810
|
$72.22 | ||
|
Available to order. Add to View Price |
|||
|
#3
..SEAL SET, PISTON
59100-04841
|
$10.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
.SPRING, PAD
59315-03B00
|
$19.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
.BOOT, AXLE
59312-36500
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
.INSULATOR,AXLE
59313-36500
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
.CARRIER, CALIPER
69350-03B00
|
$164.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
.GUIDE, PAD
59116-03B00
|
$16.39 | ||
|
Available to order. Add to View Price |
|||
|
#9
.BLEEDER
59121-03B00
|
$22.17 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, BLEEDER
59122-02B40
Superseded by 55156-66310
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#11
.PIN, PAD
69141-03B00
|
$25.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
.CLIP,PAD PIN
69142-45000
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#13
PAD & SHIM SET
69100-03880
|
$52.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
.SHIM, PAD
59371-20E00
|
$16.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (8X18)
09103-08171
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
GUARD, CALIPER
69725-03B10
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
01547-0610A
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
08322-01067
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
