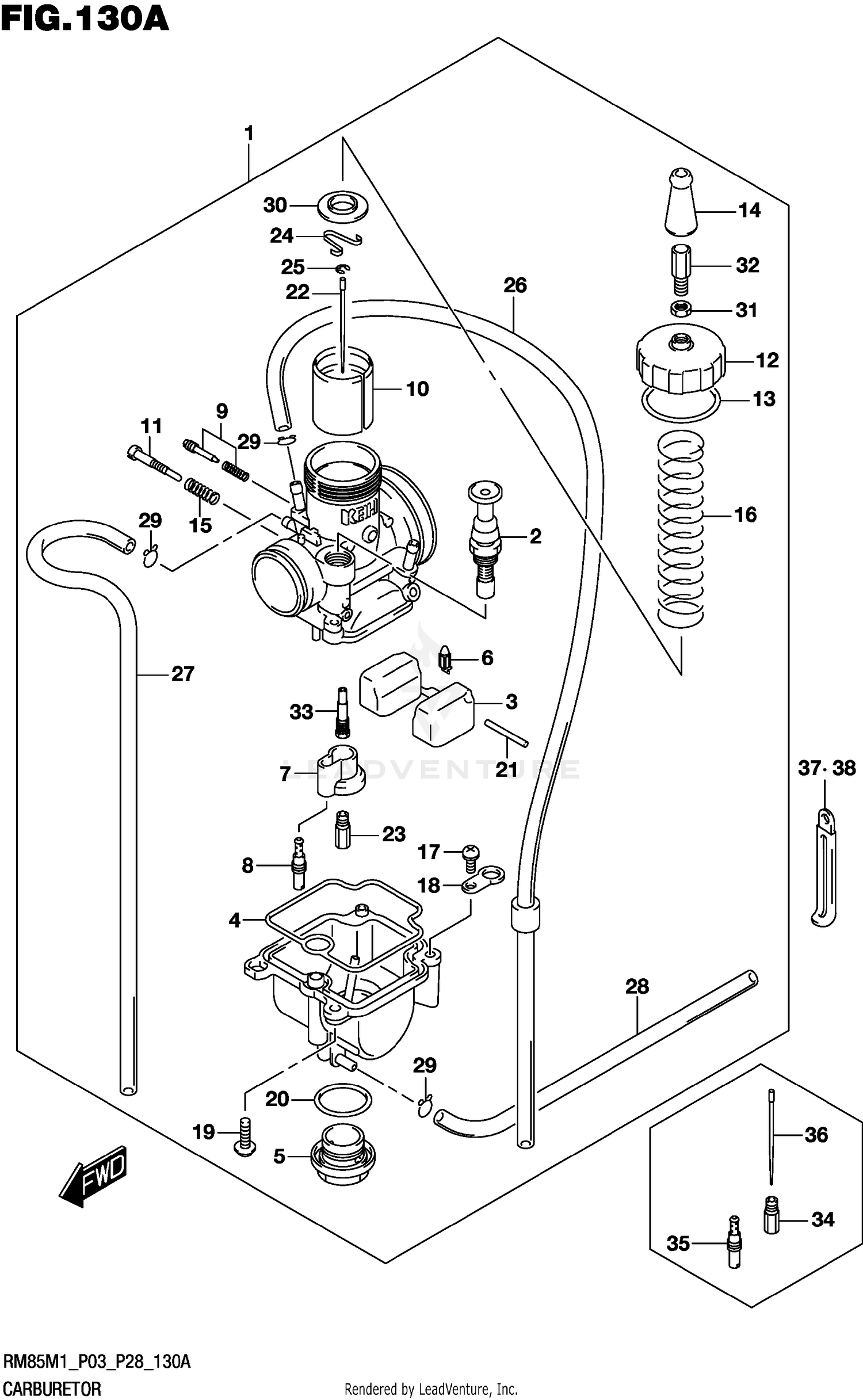

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY
13200-03B31
|
$206.46 | ||
|
Available to order. Add to View Price |
|||
|
#2
.VALVE ASSY, STARTER
13410-03B00
|
$100.23 | ||
|
Available to order. Add to View Price |
|||
|
#3
.FLOAT ASSY
13252-03B00
|
$38.24 | ||
|
Available to order. Add to View Price |
|||
|
#4
.GASKET
13251-03B00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
.BOLT, DRAIN
13247-28E00
|
$27.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
.VALVE ASSY, NEEDLE
13370-03B01
|
$59.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
.HOLDER, JET
13331-03B00
|
$27.23 | ||
|
Available to order. Add to View Price |
|||
|
#8
.JET, SLOW (50)
09492-50023
|
$18.24 | ||
|
Available to order. Add to View Price |
|||
|
#9
.ADJUST SCREW SET
13269-03B00
|
$39.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
.THROTTLE VALVE
13551-03B00
|
$119.12 | ||
|
Available to order. Add to View Price |
|||
|
#11
.SCREW, STOP
13267-03B00
|
$16.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
.COVER
13261-03B00
|
$39.08 | ||
|
Available to order. Add to View Price |
|||
|
#13
.GASKET
13266-03B00
|
$6.74 | ||
|
Available to order. Add to View Price |
|||
|
#14
.CAP
13681-03B00
|
$6.24 | ||
|
Available to order. Add to View Price |
|||
|
#15
.SPRING
13268-03B00
|
$8.86 | ||
|
Available to order. Add to View Price |
|||
|
#16
.SPRING
13573-03B00
|
$18.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
.SCREW
02112-14087
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#18
.PLATE
13693-28E00
|
$8.86 | ||
|
Available to order. Add to View Price |
|||
|
#19
.SCREW
13601-14F80
|
$3.88 | ||
|
Available to order. Add to View Price |
|||
|
#20
.O RING
13246-28E00
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#21
.PIN,FLOAT
13254-92311
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#22
.NEEDLE (24NAAH)
13383-03B20
|
$21.30 | ||
|
Available to order. Add to View Price |
|||
|
#23
.JET, MAIN (128)
09491-25020
|
$18.57 | ||
|
Available to order. Add to View Price |
|||
|
#24
.CLIP
13398-03B00
|
$9.30 | ||
|
Available to order. Add to View Price |
|||
|
#25
.CLIP, NEEDLE
13394-28E00
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#26
.PIPE ASSY
13686-03B00
Superseded by 13686-03B01
|
$8.28 | ||
|
Unavailable |
|||
|
#27
.HOSE, (4X7X620)
13686-36E00
|
$12.69 | ||
|
Available to order. Add to View Price |
|||
|
#28
.HOSE, (4X7X620)
13686-36E00
|
$12.69 | ||
|
Unavailable |
|||
|
#29
CLIP (ID:6.5)
09401-06101
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#30
.VALVE PLATE
13629-03B00
|
$6.03 | ||
|
Available to order. Add to View Price |
|||
|
#31
.NUT
13661-03B00
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#32
.ADJUST BOLT
13577-03B00
|
$9.22 | ||
|
Available to order. Add to View Price |
|||
|
#33
.JET, NEEDLE
13341-03B00
|
$19.37 | ||
|
Available to order. Add to View Price |
|||
|
#34-1
JET, MAIN (115)
09491-23027
|
$18.92 | ||
|
Available to order. Add to View Price |
|||
|
#34-2
JET, MAIN (118)
09491-23028
|
$11.55 | ||
|
Unavailable |
|||
|
#34-3
JET, MAIN (120)
09491-24030
|
$18.92 | ||
|
Available to order. Add to View Price |
|||
|
#34-4
JET, MAIN (122)
09491-24031
|
$18.92 | ||
|
Available to order. Add to View Price |
|||
|
#34-5
JET, MAIN (125)
09491-25019
|
$18.92 | ||
|
Available to order. Add to View Price |
|||
|
#34-6
.JET, MAIN (128)
09491-25020
|
$18.57 | ||
|
Unavailable |
|||
|
#34-7
JET, MAIN (130)
09491-26017
|
$18.92 | ||
|
Available to order. Add to View Price |
|||
|
#34-8
JET, MAIN (132)
09491-26018
|
$18.92 | ||
|
Available to order. Add to View Price |
|||
|
#34-9
JET, MAIN (135)
09491-27016
|
$16.58 | ||
|
Available to order. Add to View Price |
|||
|
#34-10
JET, MAIN (138)
09491-27017
|
$17.00 | ||
|
Available to order. Add to View Price |
|||
|
#34-11
JET, MAIN (140)
09491-28019
|
$17.00 | ||
|
Available to order. Add to View Price |
|||
|
#34-12
JET, MAIN (142)
09491-28020
|
$18.92 | ||
|
Available to order. Add to View Price |
|||
|
#34-13
JET, MAIN (145)
09491-29014
|
$17.00 | ||
|
Available to order. Add to View Price |
|||
|
#35-1
JET, PILOT (45)
09492-45032
|
$18.24 | ||
|
Available to order. Add to View Price |
|||
|
#35-2
JET, PILOT (48)
09492-48013
|
$18.24 | ||
|
Available to order. Add to View Price |
|||
|
#35-3
.JET, SLOW (50)
09492-50023
|
$18.24 | ||
|
Unavailable |
|||
|
#35-4
JET, PILOT (52)
09492-52011
|
$18.57 | ||
|
Available to order. Add to View Price |
|||
|
#35-5
JET, PILOT (55)
09492-55017
|
$18.92 | ||
|
Available to order. Add to View Price |
|||
|
#35-6
JET, PILOT (58)
09492-58001
|
$19.46 | ||
|
Available to order. Add to View Price |
|||
|
#36-1
NEEDLE (24NAAF)
13383-03B00
|
$19.30 | ||
|
Available to order. Add to View Price |
|||
|
#36-2
NEEDLE (24NAAG)
13383-03B10
|
$19.30 | ||
|
Available to order. Add to View Price |
|||
|
#36-3
.NEEDLE (24NAAH)
13383-03B20
|
$21.30 | ||
|
Unavailable |
|||
|
#36-4
NEEDLE (24NAAJ)
13383-03B30
|
$22.10 | ||
|
Available to order. Add to View Price |
|||
|
#36-5
NEEDLE (24NAAK)
13383-03B40
|
$22.10 | ||
|
Available to order. Add to View Price |
|||
|
#36-6
NEEDLE (24NCDF)
13383-03B50
|
$13.11 | ||
|
Unavailable |
|||
|
#36-7
NEEDLE (24NCDG)
13383-03B60
|
$13.11 | ||
|
Unavailable |
|||
|
#36-8
NEEDLE (24NCDH)
13383-03B70
|
$19.30 | ||
|
Available to order. Add to View Price |
|||
|
#36-9
NEEDLE (24NCDJ)
13383-03B80
|
$19.30 | ||
|
Available to order. Add to View Price |
|||
|
#36-10
NEEDLE (24NCDK)
13383-03B90
|
$13.11 | ||
|
Unavailable |
|||
|
#37
.CLAMP (L:65)
09404-08421
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLAMP (L:45)
09404-06429
|
$2.20 | ||
|
Unavailable |
|||
