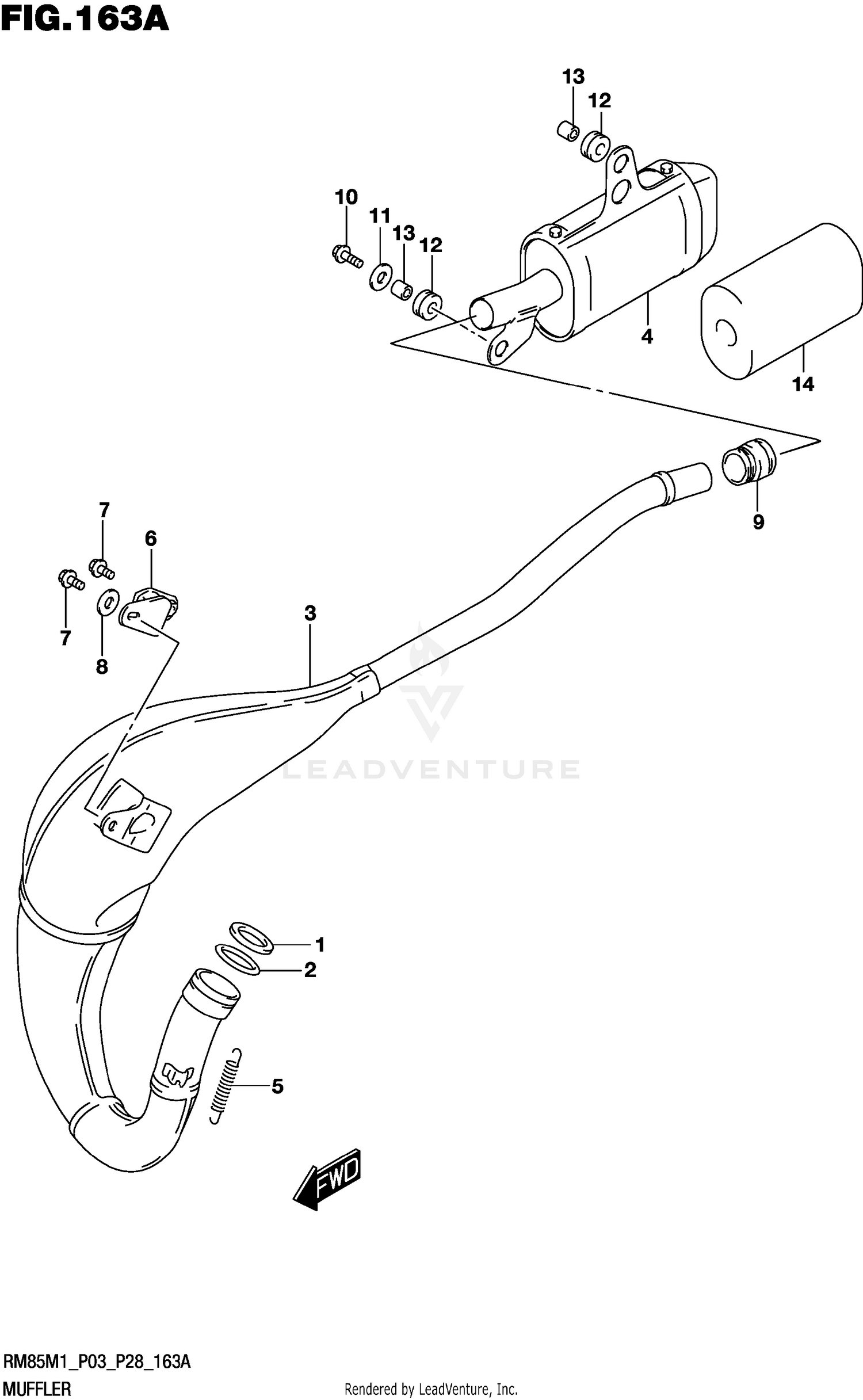

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
.GASKET, EXHAUST
14181-40C00
|
$8.92 | ||
|
Available to order. Add to View Price |
|||
|
#2
.O RING, EXHAUST FLANGE
14171-03B00
|
$18.66 | ||
|
Available to order. Add to View Price |
|||
|
#3
BODY, MUFFLER 1ST
14310-03B01
|
$393.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
MUFFLER, 2ND
14330-03B10
|
$322.47 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING
09443-11027
|
$8.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER,MUFFLER
14770-20402
|
$14.51 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
01547-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, CLUTCH RLSE NO.2
09160-06079
Superseded by 09160-06052
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
CONNECTOR, 2ND MUFFLER
14771-17300
|
$19.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01547-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (6.5X20X1.2)
09160-06077
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION (8.5X20X8)
09320-08510
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER (6.5X9X8)
09180-06261
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
SILENCER, MUFFLER
14351-03B10
|
$87.94 | ||
|
Available to order. Add to View Price |
|||
