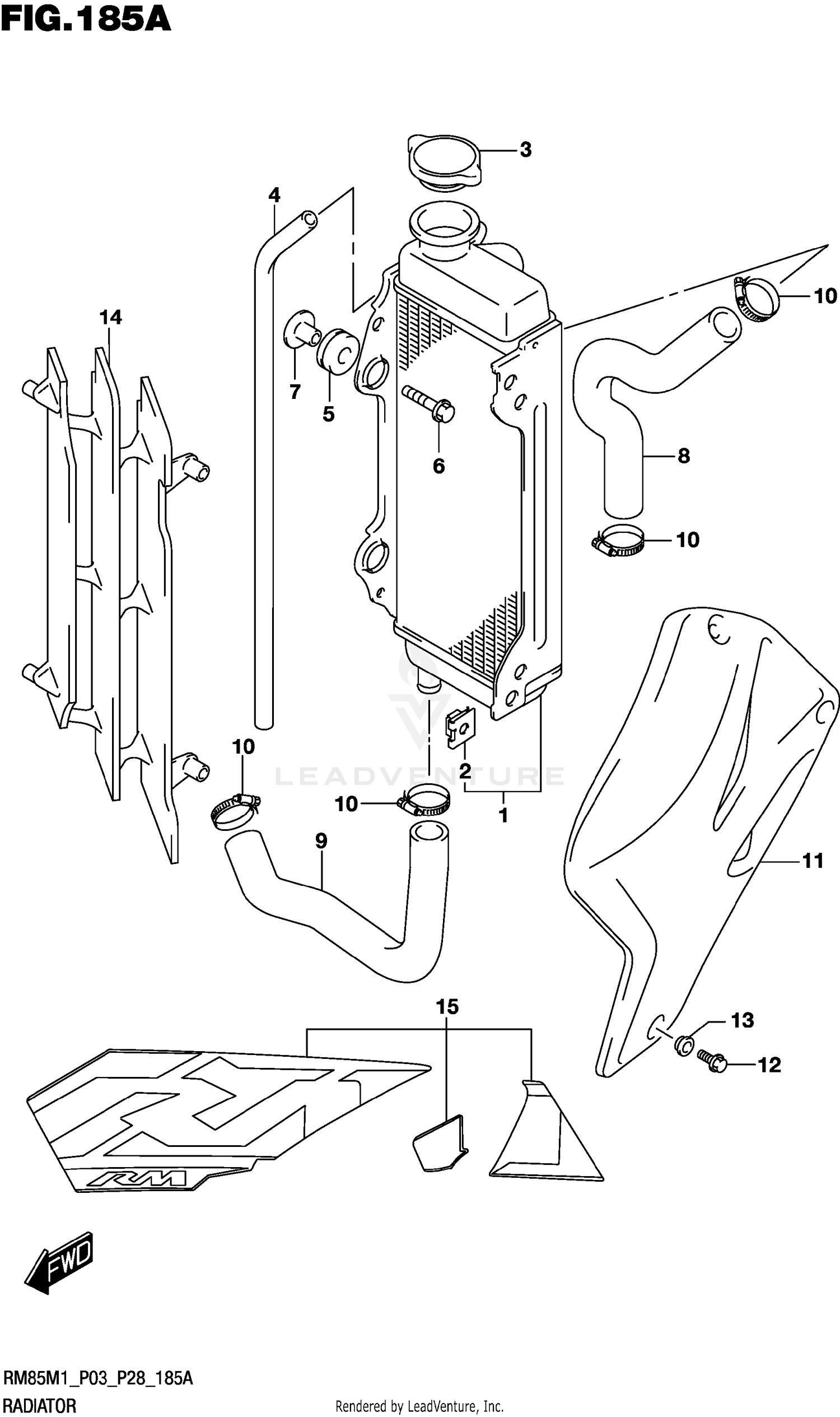

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR, WATER
17710-03B00
|
$676.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
.NUT
09148-06015
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP,RADIATOR (1.1)
17730-08J00
|
$52.50 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE (5X8X2000)
09351-50803-00A
Superseded by 09351-50803-00B
|
$11.08 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION,RADIATOR,LOWER
17787-19A00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (6X25)
09116-06186
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER (6.5X10.5X14.1)
09180-06243
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE, RADIATOR INLET
17851-03B00
|
$24.92 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE, RADIATOR OUTLET
17852-03B00
|
$29.54 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP
09402-28513
|
$8.51 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, RADIATOR (YELLOW)
17762-37F10-YU1
|
$55.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01547-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
09169-06053
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
LOUVER, RADIATOR
17831-36E00
|
$23.56 | ||
|
Available to order. Add to View Price |
|||
|
#15
TAPE SET,RADIATOR COVER (ORAN
68670-03BP0-B7F
Superseded by 68670-03BP0-BLE
|
$211.36 | ||
|
Available to order. Add to View Price |
|||
