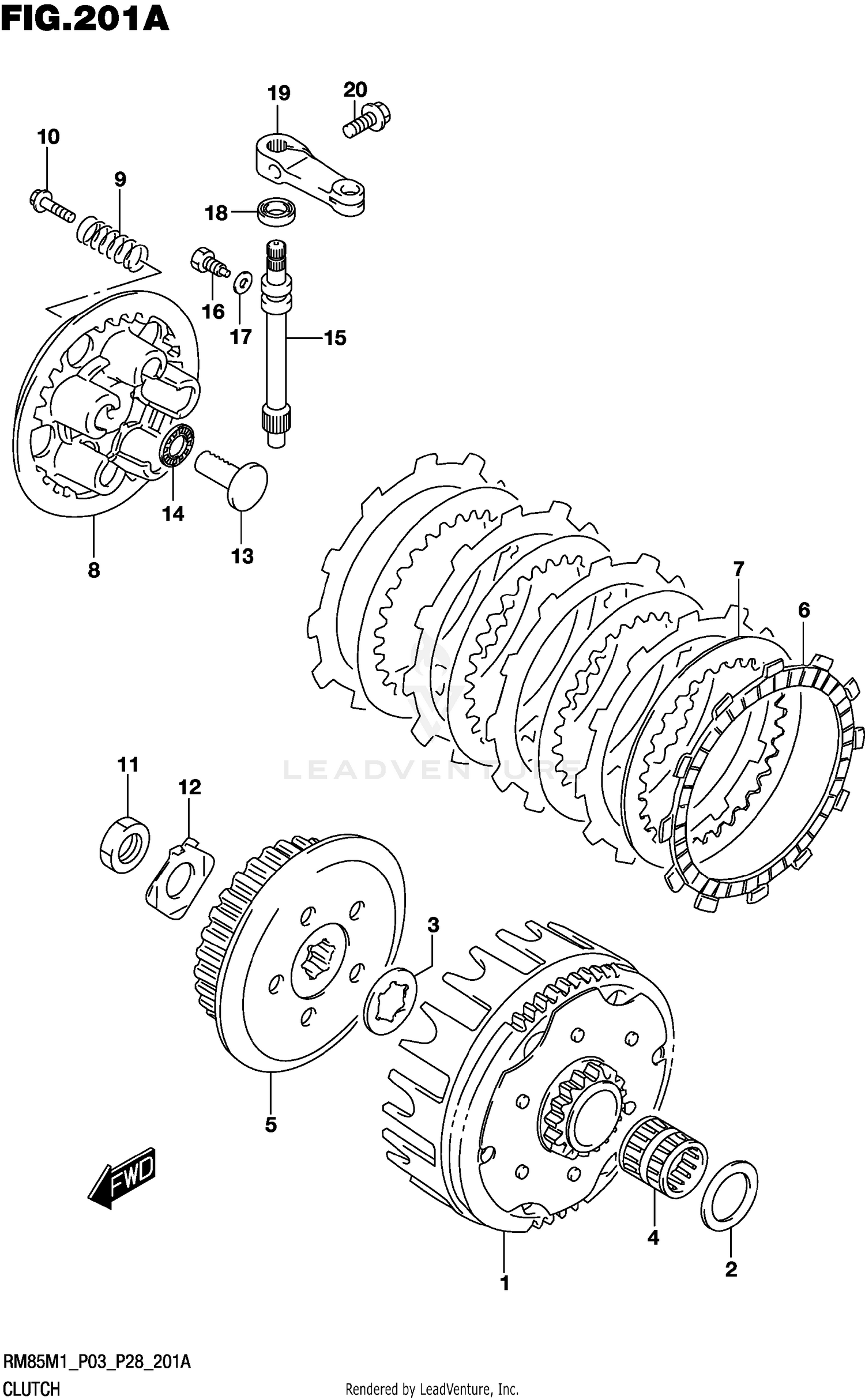

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR ASSY, PRIMARY DRIVEN
21200-02B41
|
$282.27 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHIM (20X32X1)
09181-20223
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
LOCK WASHER
09167-20024
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING (20X25X26)
09263-20023
|
$24.68 | ||
|
Available to order. Add to View Price |
|||
|
#5
HUB, CLUTCH SLEEVE
21410-01B01
|
$87.08 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE,CLUTCH DRIVE (T:3.0)
21441-13A01
|
$18.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH DRIVEN (T:2.0)
21451-36200
|
$9.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
DISC, PRESSURE
21462-02B41
|
$31.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING
09440-16017
|
$5.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (5X20)
09116-05021
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
09140-16027
|
$7.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
09169-16005
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
RACK
23165-44B01
|
$26.92 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING (10X22X2.8)
09263-10002
|
$12.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PINION
23261-20A01
|
$57.22 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (6X10)
09135-06501
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET (6.2X11X1.2)
09168-06004
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL (10X17X5)
09285-10004
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#19
ARM,CLUTCH RELEASE
23271-20902
|
$36.56 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
01547-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
