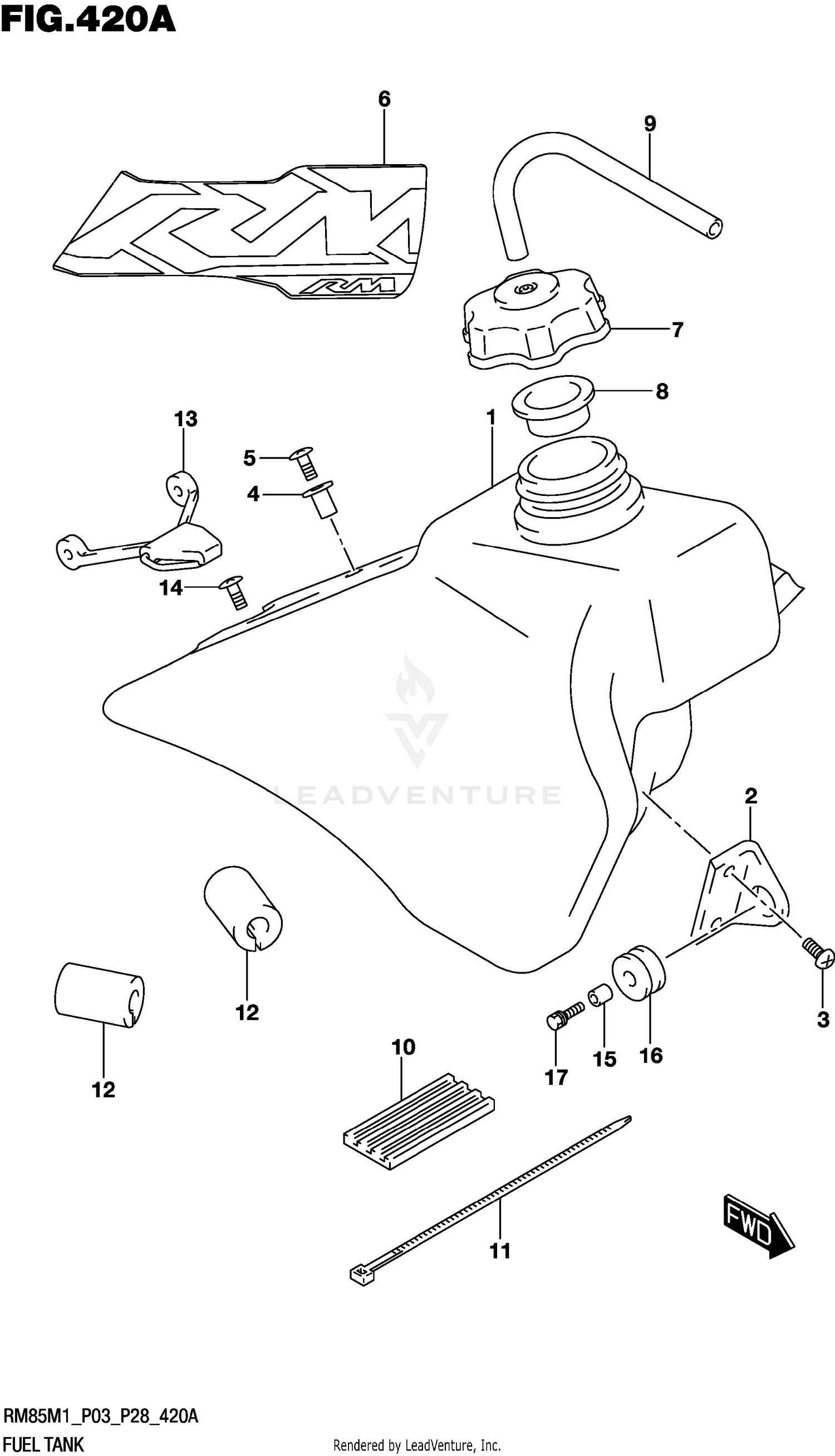

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK, FUEL (YELLOW)
44110-03B10-YU1
|
$541.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BRACKET, FRONT
44131-27C01
|
$16.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW (6X12)
02142-0612B
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOOK, SEAT FRONT
44132-27C01
|
$18.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
.SCREW
02142-0620B
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
TAPE,FUEL TANK (ORANGE,YELLOW
68111-03B90-B7F
Superseded by 68111-03B90-BLE
|
$190.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, FUEL TANK FILLER
44210-37F00
|
$37.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET,FUEL TANK FILLER CAP
44248-27C01
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE,5X8.2X600
09352-50005-600
Superseded by 44420-44AR0
|
$10.79 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION, UPPER FRONT
44541-14300
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
09407-20405
Superseded by 09407-25402
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION, UPPER REAR
44542-17300
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAND, REAR
44560-26C00
|
$17.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW (6X13.5)
09139-06134
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER (6.5X9X13.5)
09180-06268
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
CUSHION (8.7X26X14)
14762-01B02
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (6X35)
09116-06195
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
