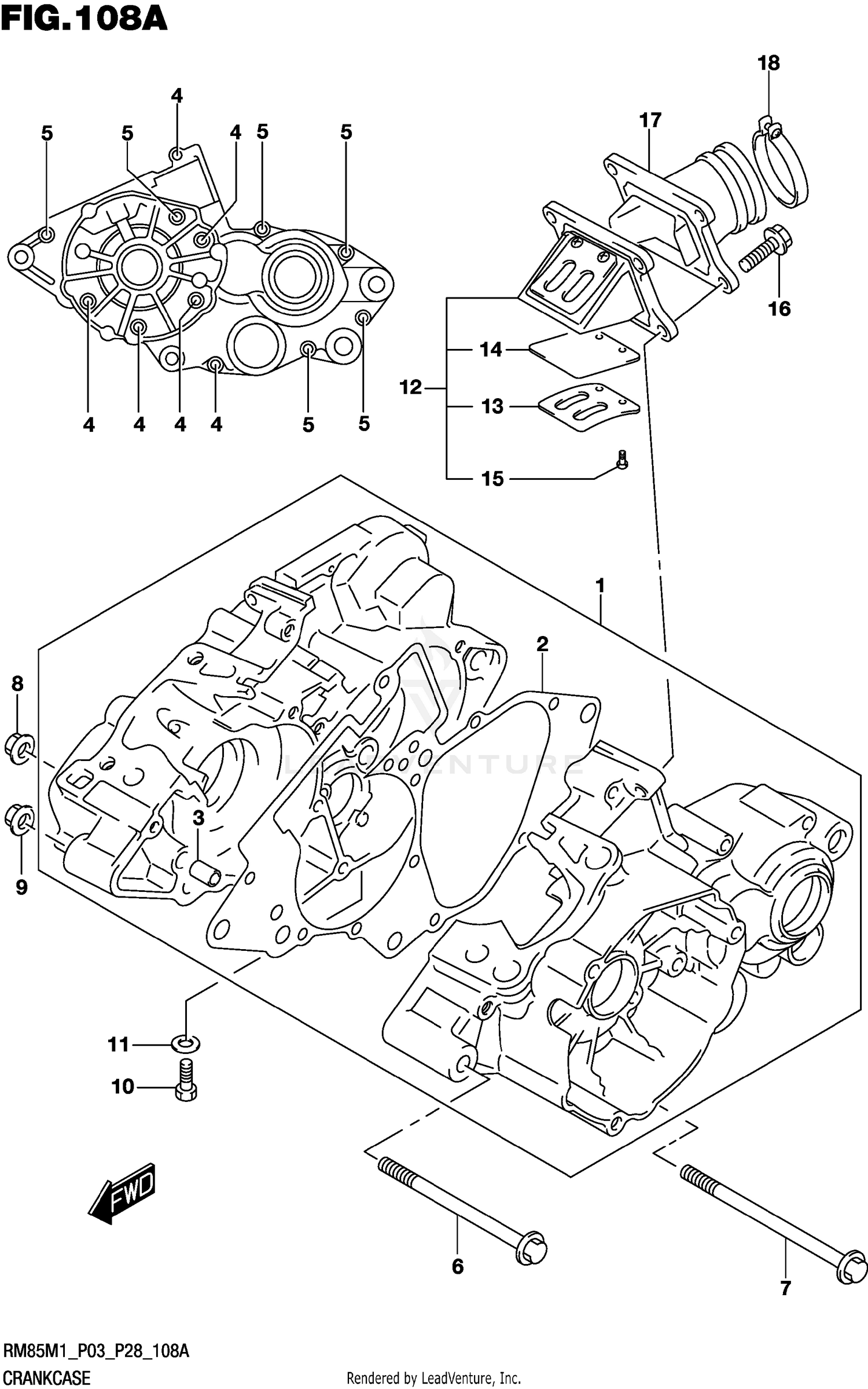

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11300-03822
|
$860.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
.GASKET, CRANKCASE
11481-03B00
|
$16.96 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN
04211-09129
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01547-0640A
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01547-0650A
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (10X95)
09103-10345
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (8X102)
09103-08296
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT (M8X1.25)
09159-08067
|
$6.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
09159-10060
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01500-0816A
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET (8.2X14X1)
09168-08016
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
VALVE ASSY, REED
13150-02B51
|
$155.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
.STOPPER, REED VALVE
13152-02B50
|
$8.53 | ||
|
Available to order. Add to View Price |
|||
|
#14
.VALVE, REED
13153-02B40
|
$14.27 | ||
|
Available to order. Add to View Price |
|||
|
#15
.SCREW
02112-0306B
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01547-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIPE, INTAKE
13110-03B01
|
$62.74 | ||
|
Available to order. Add to View Price |
|||
|
#18
.CLAMP
09402-42208
|
$7.24 | ||
|
Available to order. Add to View Price |
|||
