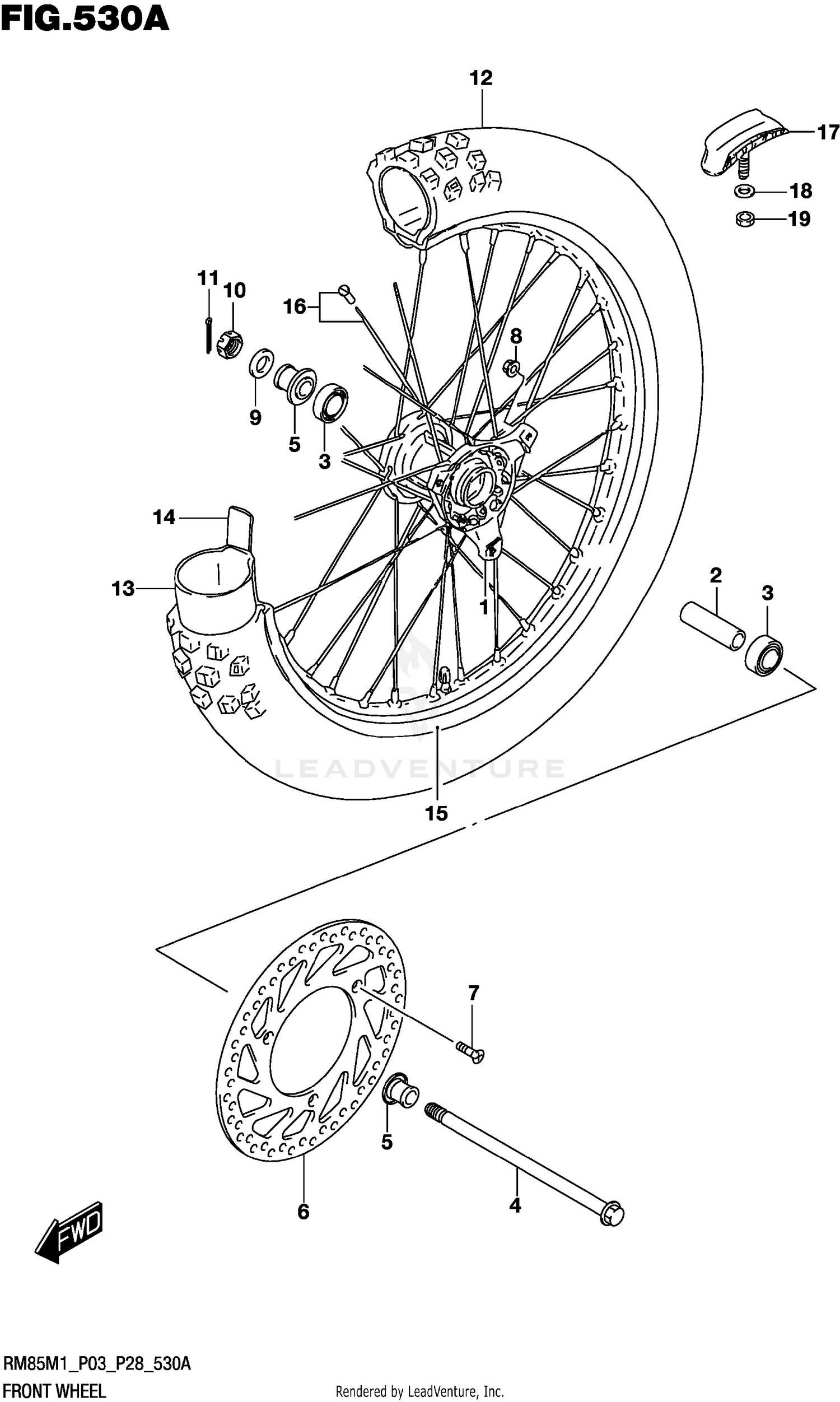

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT WHEEL
54111-02B42
|
$338.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER, BEARING
54731-02B40
|
$14.77 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
08123-6201B
|
$24.83 | ||
|
Unavailable |
|||
|
#4
AXLE, FRONT
54711-03B00
|
$50.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER, FRONT AXLE
54740-02B40
|
$19.92 | ||
|
Available to order. Add to View Price |
|||
|
#6
DISC, FRONT BRAKE
59221-03B00
|
$243.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW (6X22)
09126-06009
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
08319-3106A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
08211-12204
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
08314-4012B
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN
04111-2020A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#12
TIRE, FRONT
55110-02B70
|
$98.68 | ||
|
Unavailable |
|||
|
#13
TUBE ASSY, INNER
55200-02B70
|
$20.35 | ||
|
Unavailable |
|||
|
#14
PROTECTOR, INNER TUBE
55261-02B40
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#15
RIM, FRONT WHEEL (17X1.40)
55311-02B10
|
$291.77 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPOKE SET, FRONT WHEEL
55320-02B10
|
$69.09 | ||
|
Available to order. Add to View Price |
|||
|
#17
STOPPER, BEAD
65270-28600
|
$59.13 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
08322-0108B
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
08310-0008B
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
