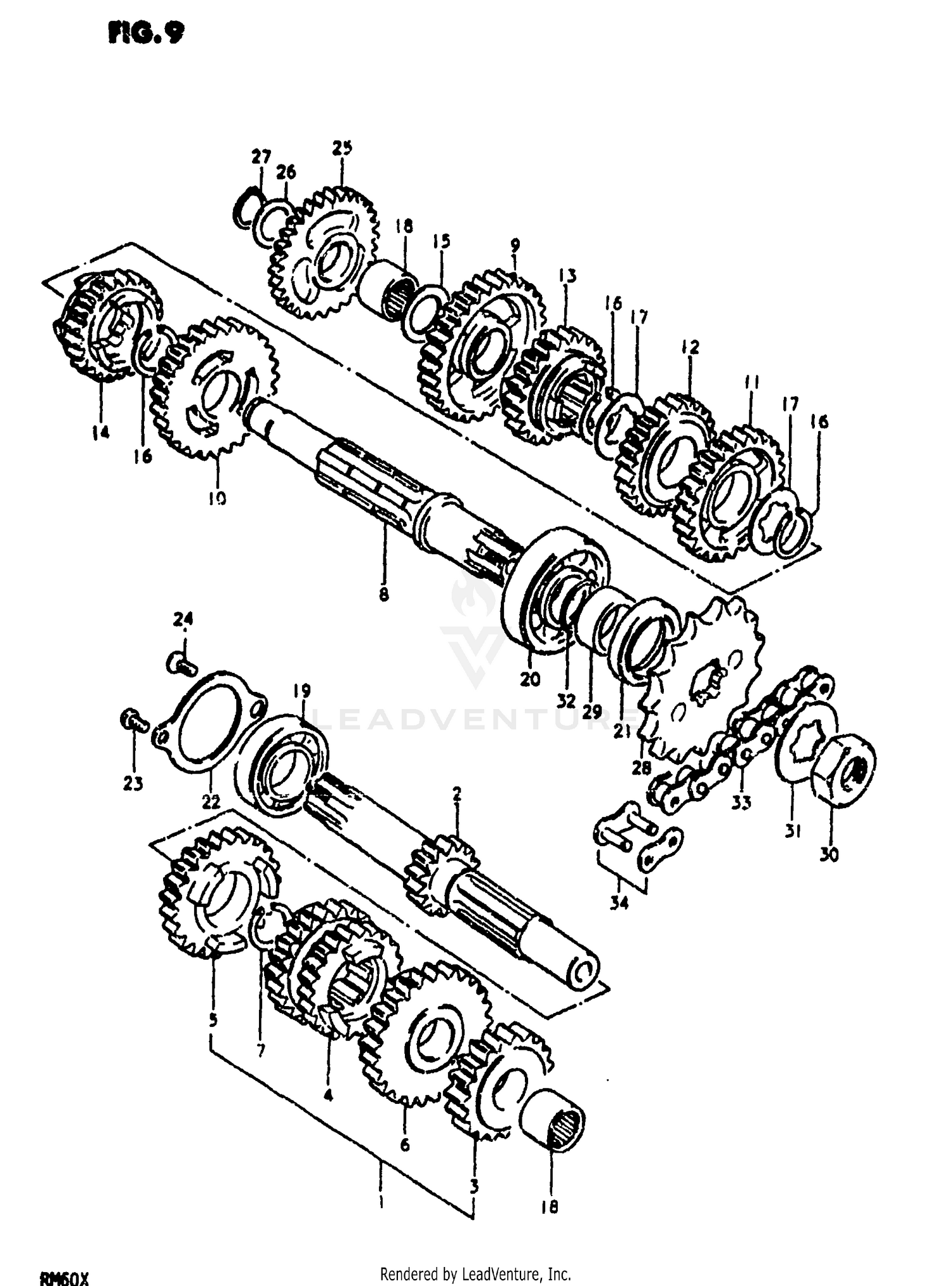

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COUNTERSHAFT ASSY
24120-46910
|
$115.93 | ||
|
Unavailable |
|||
|
#2
COUNTERSHAFT (NT:14)
24121-46900
|
$75.85 | ||
|
Unavailable |
|||
|
#3
GEAR, 2ND DRIVE (NT:18)
24221-46910
|
$30.09 | ||
|
Unavailable |
|||
|
#4
GEAR, 3/4 DRIVE (NT:20/20)
24231-46910
|
$61.44 | ||
|
Unavailable |
|||
|
#5
GEAR, 5TH DRIVE (NT:24)
24251-46900
|
$39.63 | ||
|
Unavailable |
|||
|
#6
GEAR, 6TH DRIVE (NT:26)
24261-46900
|
$47.33 | ||
|
Unavailable |
|||
|
#7
CIRCLIP
09380-17007
|
$1.46 | ||
|
Available to order. Add to View Price |
|||
|
#8
DRIVESHAFT
24131-46900
|
$95.35 | ||
|
Unavailable |
|||
|
#9
GEAR, 1ST DRIVEN (NT:36)
24310-46900
|
$39.93 | ||
|
Unavailable |
|||
|
#10
GEAR, 2ND DRIVEN (NT:34)
24321-46910
|
$39.31 | ||
|
Unavailable |
|||
|
#11
GEAR, 3RD DRIVEN (NT:30)
24331-46910
|
$42.59 | ||
|
Unavailable |
|||
|
#12
GEAR, 4TH DRIVEN (NT:25)
24341-46910
|
$47.85 | ||
|
Unavailable |
|||
|
#13
GEAR, 5TH DRIVEN (NT:26)
24341-46000
|
$48.54 | ||
|
Unavailable |
|||
|
#14
GEAR, 6TH DRIVEN (NT:25)
24361-46910
|
$49.22 | ||
|
Unavailable |
|||
|
#15
WASHER (13X24X1)
09160-13006
|
$1.62 | ||
|
Unavailable |
|||
|
#16
CIRCLIP
09380-17007
|
$1.46 | ||
|
Unavailable |
|||
|
#17
WASHER
09167-17003
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING (13X19X12)
09263-13001
Superseded by 09263-13002
|
$16.46 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, DRIVE SHAFT RH
09262-17008
Superseded by 09262-17023
|
$20.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BEARING
08113-63030
|
$24.83 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL
09283-21004
|
$6.73 | ||
|
Unavailable |
|||
|
#22
HOLDER, BEARING
24741-46000
|
$2.87 | ||
|
Unavailable |
|||
|
#23
SCREW
02112-06108
Superseded by 02112-06107
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW
02122-06108
Superseded by 02122-0610A
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#25
GEAR, KICK IDLE (NT:26)
26260-46000
Superseded by 26260-46001
|
$60.28 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER
08211-12261
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#27
CIRCLIP
08331-31128
Superseded by 08331-3112A
|
$2.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
SPROCKET, ENGINE (NT:12)*
27511-04000
|
$20.46 | ||
|
Unavailable |
|||
|
#29
SPACER
09180-17050
|
$4.32 | ||
|
Unavailable |
|||
|
#30
NUT
09140-16002
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER
09167-16001
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#32
O RING
09280-17001
|
$1.68 | ||
|
Available to order. Add to View Price |
|||
|
#33
CHAIN, DRIVE (420x94L)
27600-46610
|
$21.66 | ||
|
Unavailable |
|||
|
#33
CHAIN, DRIVE (420x94L)
27600-46611
Superseded by 27600-46610
|
$21.66 | ||
|
Unavailable |
|||
|
#33
CHAIN, DRIVE (420x94L)
27600-46650
Superseded by 27600-46610
|
$21.66 | ||
|
Unavailable |
|||
|
#34
JOINT (DID)
27620-01011
Superseded by 27620-01012
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
