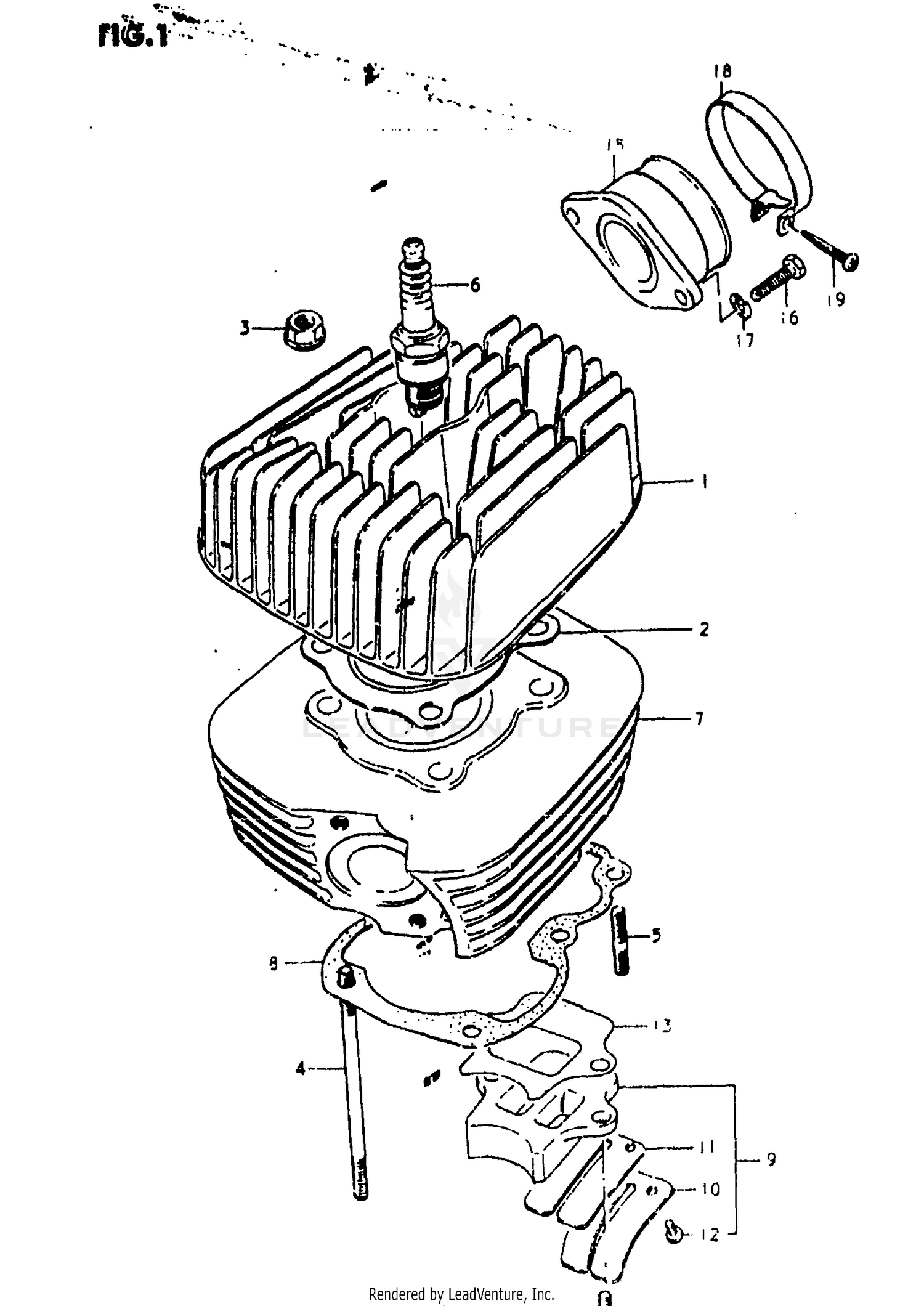

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD
11111-46610
|
$69.08 | ||
|
Unavailable |
|||
|
#2
GASKET
11141-46601
|
$7.28 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT (CHROME)
08316-16088
Superseded by 08316-10087
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
08316-16068
Superseded by 08319-31067
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
STUD BOLT, NO.1
09108-08066
|
$1.28 | ||
|
Unavailable |
|||
|
#5
STUD BOLT
01421-08168
Superseded by 01421-0816A
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT,STUD
01421-06168
Superseded by 01421-0616A
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPARK PLUG B8HS
09482-00151
Superseded by 09482-00198
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPARK PLUG ASSY
09482-00178
Superseded by 09482-00058
|
$2.61 | ||
|
Unavailable |
|||
|
#7
CYLINDER
11210-46620
Superseded by 11210-46630
|
$157.72 | ||
|
Unavailable |
|||
|
#7
CYLINDER
11210-46630
|
$157.72 | ||
|
Unavailable |
|||
|
#8
GASKET, CYLINDE
11241-46900
Superseded by 11241-46900-H17
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
REED VALVE ASSY
13150-46011
|
$102.19 | ||
|
Available to order. Add to View Price |
|||
|
#10
STOPPER
13152-23011
|
$4.12 | ||
|
Unavailable |
|||
|
#11
REED VALVE
13153-27110
|
$8.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
13154-19011
Superseded by 02112-0308A
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, REED VALVE
13156-46000
Superseded by 13156-46001-H17
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, REED VALVE
13156-46001
Superseded by 13156-46001-H17
|
$3.30 | ||
|
Unavailable |
|||
|
#14
SCREW
02112-06168
Superseded by 02112-06167
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIPE, INTAKE
13110-46630
|
$22.27 | ||
|
Unavailable |
|||
|
#16
BOLT, CANISTER
01107-06168
Superseded by 01500-06167
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CLAMP
09402-46306
Superseded by 09402-46208
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
03211-04208
Superseded by 03211-04207
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
