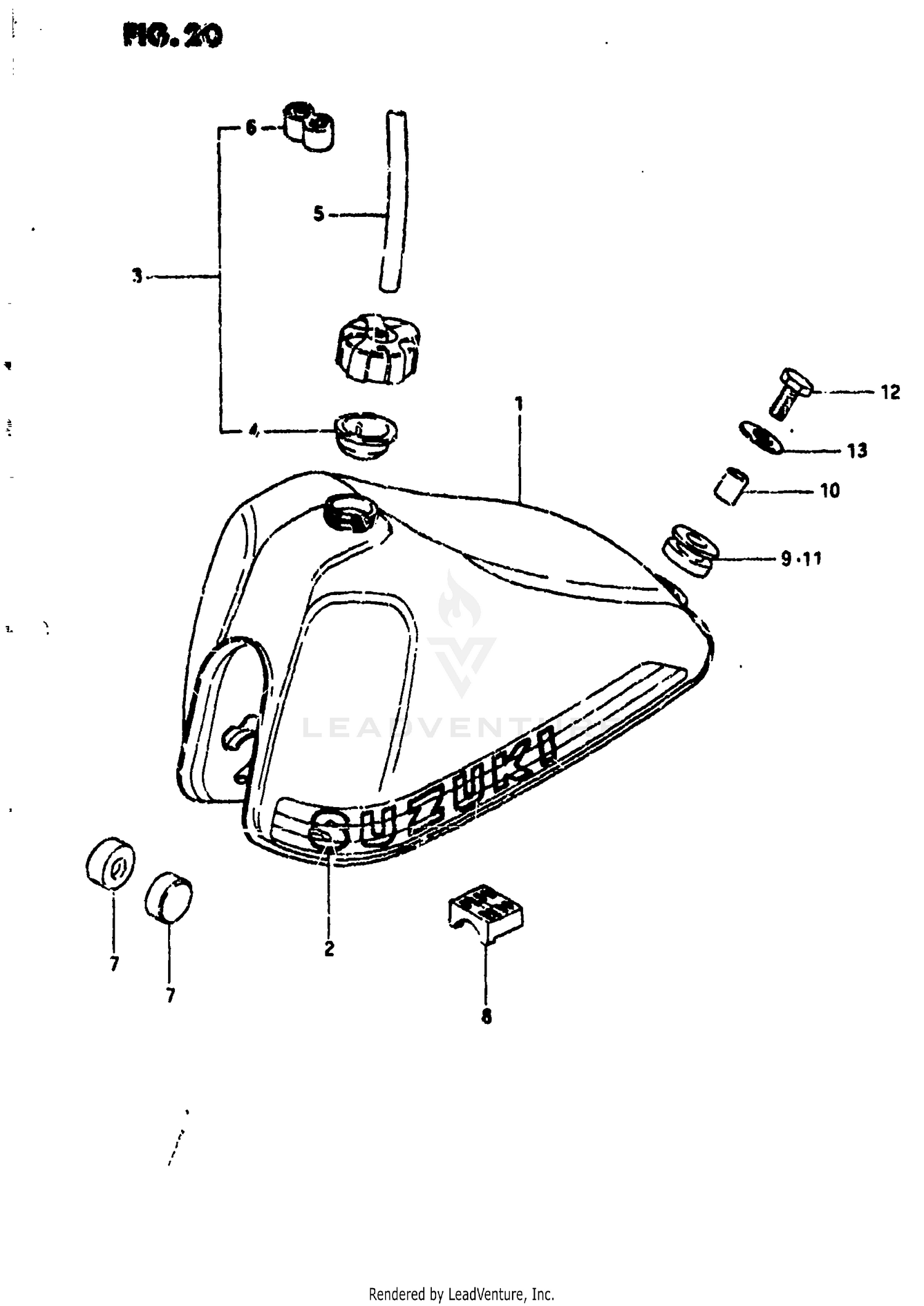

Fuel Tank (rm60x) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
44100-46610-163
Superseded by 44110-46901-13L
|
$152.17 | ||
|
Unavailable |
|||
|
#2
TAPE SET, STRIPING
68110-20310-76P
|
$13.83 | ||
|
Unavailable |
|||
|
#3
CAP ASSY, FUEL TANK
44200-46900
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
44248-46900
|
$4.39 | ||
|
Unavailable |
|||
|
#5
HOSE,5X10X600
09343-05129
Superseded by 44421-13ER0
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP
44486-32101
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION, FRONT
09329-10005
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION, REAR NO. 1
44541-46000
|
$3.92 | ||
|
Unavailable |
|||
|
#9
CUSHION, REAR NO. 2
09320-12013
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER
09180-08003
Superseded by 09180-08191
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION, REAR NO. 3
09320-12020
|
$1.43 | ||
|
Unavailable |
|||
|
#12
BOLT
01107-08258
Superseded by 01500-08257
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, EXHAUST SUPPORT
09160-08002
Superseded by 09160-08135
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
