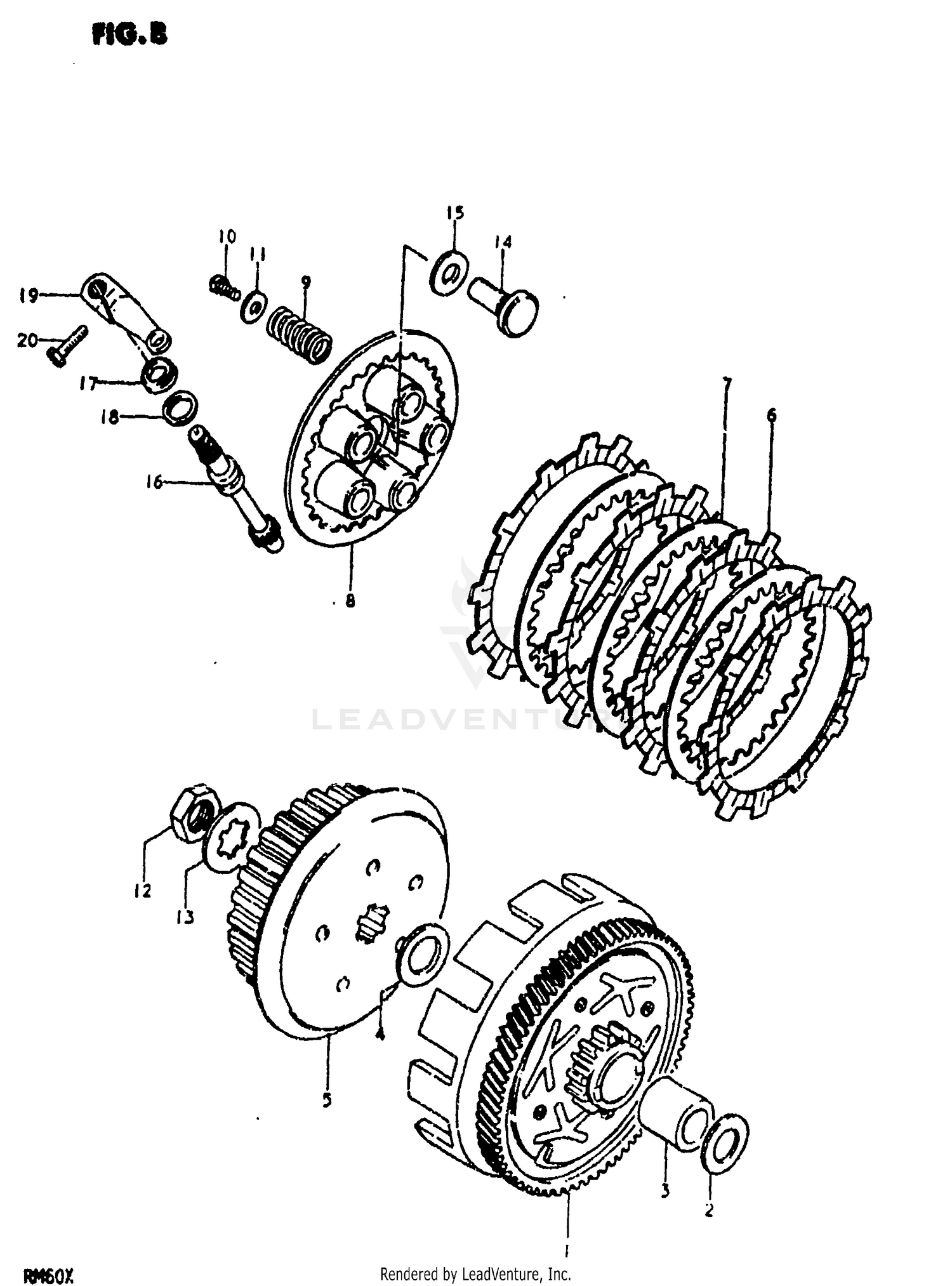

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVEN
21200-46900
Superseded by 21200-46901
|
$116.69 | ||
|
Unavailable |
|||
|
#1
GEAR, PRIMARY DRIVEN
21200-46901
|
$116.69 | ||
|
Unavailable |
|||
|
#2
WASHER, 2ND DRIVE GEAR
08211-17301
Superseded by 09181-17223
|
$3.66 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER
09180-17049
|
$8.61 | ||
|
Unavailable |
|||
|
#4
WASHER
08211-17282
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
HUB, SLEEVE
21411-46900
Superseded by 21411-46901
|
$60.06 | ||
|
Unavailable |
|||
|
#5
HUB, SLEEVE
21411-46901
|
$60.06 | ||
|
Unavailable |
|||
|
#6
PLATE, CLUTCH DRIVE
21441-28300
Superseded by 21441-13A01
|
$18.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH DRIVEN (T:1.6)
21451-28000
Superseded by 21451-19A00
|
$9.37 | ||
|
Available to order. Add to View Price |
|||
|
#8
DISC, PRESSURE
21462-46900
Superseded by 21462-02B41
|
$31.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING
09440-15008
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
09100-05002
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (5.5X16X1.2)
09160-05017
Superseded by 09160-05043
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
09140-16001
Superseded by 09140-16005
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
09167-17002
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
RACK
23165-28300
Superseded by 23165-46000
|
$28.22 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
09263-10002
|
$12.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PINION, RELEASE (NT:12)
23261-41301
|
$47.19 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL (10X17X5)
09285-10002
Superseded by 09285-10004
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER (12.5X17X1)
09160-12035
Superseded by 09160-12086
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#19
ARM, CLUTCH RELEASE
23271-46000
Superseded by 23271-46010
|
$31.29 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, CANISTER
01107-06168
Superseded by 01500-06167
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
