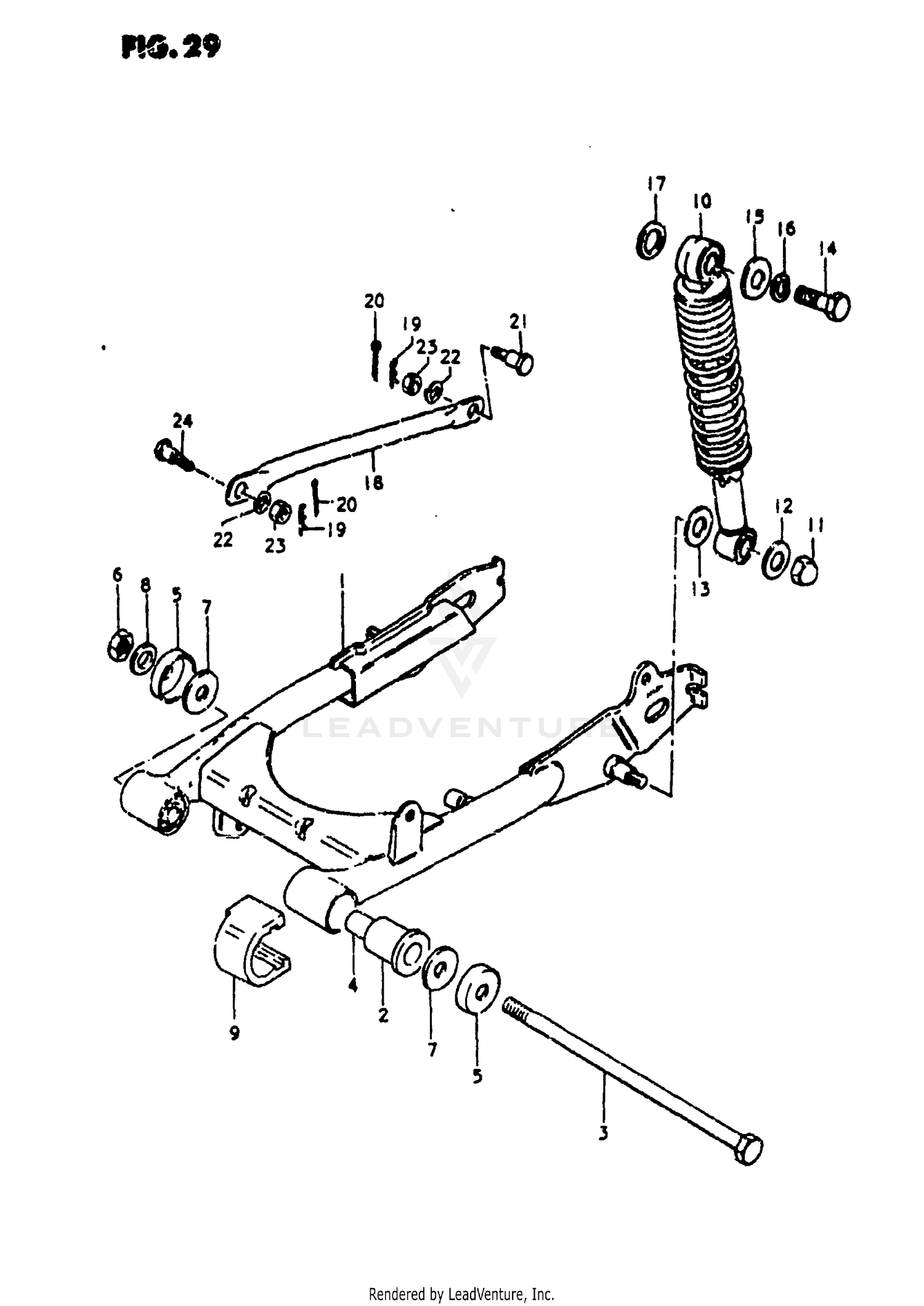

Rear Swinging Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWINGING ARM, REAR
61101-46830-08C
|
$55.01 | ||
|
Unavailable |
|||
|
#1
SWINGING ARM, REAR
61101-46890-08C
|
$76.43 | ||
|
Unavailable |
|||
|
#2
BUSHING
09307-18003
|
$8.47 | ||
|
Unavailable |
|||
|
#3
SHAFT, PIVOT
61211-25300
|
$8.70 | ||
|
Unavailable |
|||
|
#4
SPACER
61251-46910
|
$15.78 | ||
|
Unavailable |
|||
|
#5
COVER, DUST SEAL
61262-46910
|
$8.62 | ||
|
Unavailable |
|||
|
#6
NUT
08319-21108
Superseded by 09159-10027
|
$3.83 | ||
|
Available to order. Add to View Price |
|||
|
#7
THRUST WASHER
09160-10052
|
$1.89 | ||
|
Unavailable |
|||
|
#8
WASHER
08322-21108
Superseded by 08322-01107
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BUFFER
61273-46630
Superseded by 61273-46631
|
$5.57 | ||
|
Unavailable |
|||
|
#10
SHOCK ABSORBER, REAR
62100-46640
|
$88.68 | ||
|
Unavailable |
|||
|
#11
NUT
08313-11108
Superseded by 08313-10107
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, LOWER (10.5X24X2.3)
09160-10001
Superseded by 09160-10093
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
08322-11128
Superseded by 08322-01127
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01107-06128
Superseded by 01500-06127
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, FRONT
09160-06004
Superseded by 09160-06134
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER (12.5X26X1.6)
09160-12006
Superseded by 09160-12089
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#18
TORQUE LINK, REAR (GOLD)
64311-46610
Superseded by 64311-46600-08C
|
$5.63 | ||
|
Unavailable |
|||
|
#19
CLIP
09385-10001
Superseded by 09385-10005
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN
04111-16158
Superseded by 04111-1620A
|
$1.54 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, REAR BRAKE PANEL
09111-08013
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#22
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
NUT
09140-08008
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, TORQUE LINK FRONT
09111-08015
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
