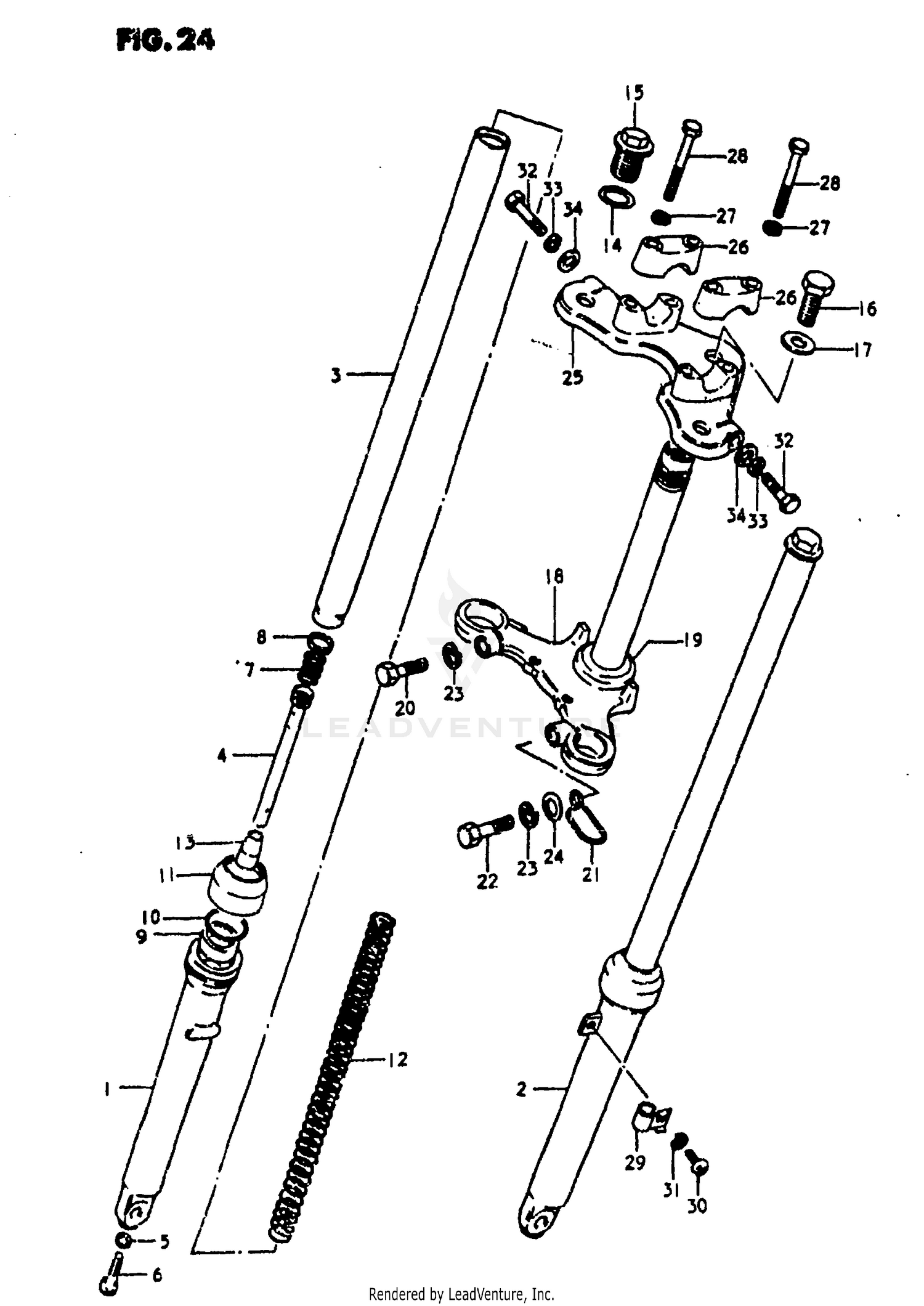

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#0
FRONT FORK ASSY (GOLD)
51100-46684-08C
|
$344.81 | ||
|
Unavailable |
|||
|
#1
TUBE, OUTER RH
51131-46684
|
$54.31 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER LH
51141-46684
|
$72.87 | ||
|
Unavailable |
|||
|
#3
TUBE, INNER
51110-46684
|
$51.11 | ||
|
Unavailable |
|||
|
#4
CYLINDER
51146-46684
Superseded by 51146-03400
|
$35.11 | ||
|
Unavailable |
|||
|
#5
.GASKET (8.2X13X1.5)
51148-31030
Superseded by 51148-36011
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
51147-48130
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING
51177-46100
|
$3.18 | ||
|
Unavailable |
|||
|
#8
RING, PISTON
51196-46100
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL
51153-46100
Superseded by 51153-03400
|
$17.23 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING, OIL SEAL STOPPER
51156-46100
Superseded by 51156-48130
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL,DUST
51571-46100
Superseded by 51571-46101
|
$7.16 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING
51171-46684
|
$12.93 | ||
|
Unavailable |
|||
|
#13
PIECE, OIL LOCK
51195-46684
|
$13.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (D:2.4,ID:17.8)
51181-46190
Superseded by 09280-18004
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
51351-46680
|
$9.05 | ||
|
Unavailable |
|||
|
#16
BOLT
51352-46030
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
51356-46030
|
$4.34 | ||
|
Unavailable |
|||
|
#18
STEM, STEERING (GOLD)
51410-46680-08C
|
$72.46 | ||
|
Unavailable |
|||
|
#19
RACE, OUTER LOWER
51621-33001
|
$17.56 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
01107-10308
Superseded by 01500-1030A
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP
51455-46030
|
$2.30 | ||
|
Unavailable |
|||
|
#22
BOLT, HANDLE HOLDER
01107-10358
Superseded by 01500-1035B
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#23
LOCK WASHER
08321-21108
Superseded by 08321-01107
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER
08322-11108
Superseded by 08322-01107
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
STEM HEAD, STEERING (GOLD)
51311-46680-08C
|
$66.15 | ||
|
Unavailable |
|||
|
#26
HOLDER, HANDLE (GOLD)
56211-46680-08C
|
$8.66 | ||
|
Unavailable |
|||
|
#27
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BOLT
01107-08358
Superseded by 01500-0835B
|
$3.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
CLIP
51452-46030
Superseded by 51452-46040
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW
02112-04128
Superseded by 02112-0412A
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#31
LOCK WASHER
08321-21048
Superseded by 08321-0104A
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
01107-08408
Superseded by 01500-0840A
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#33
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.22 | ||
|
Unavailable |
|||
|
#34
WASHER
08322-21088
Superseded by 08322-01087
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
