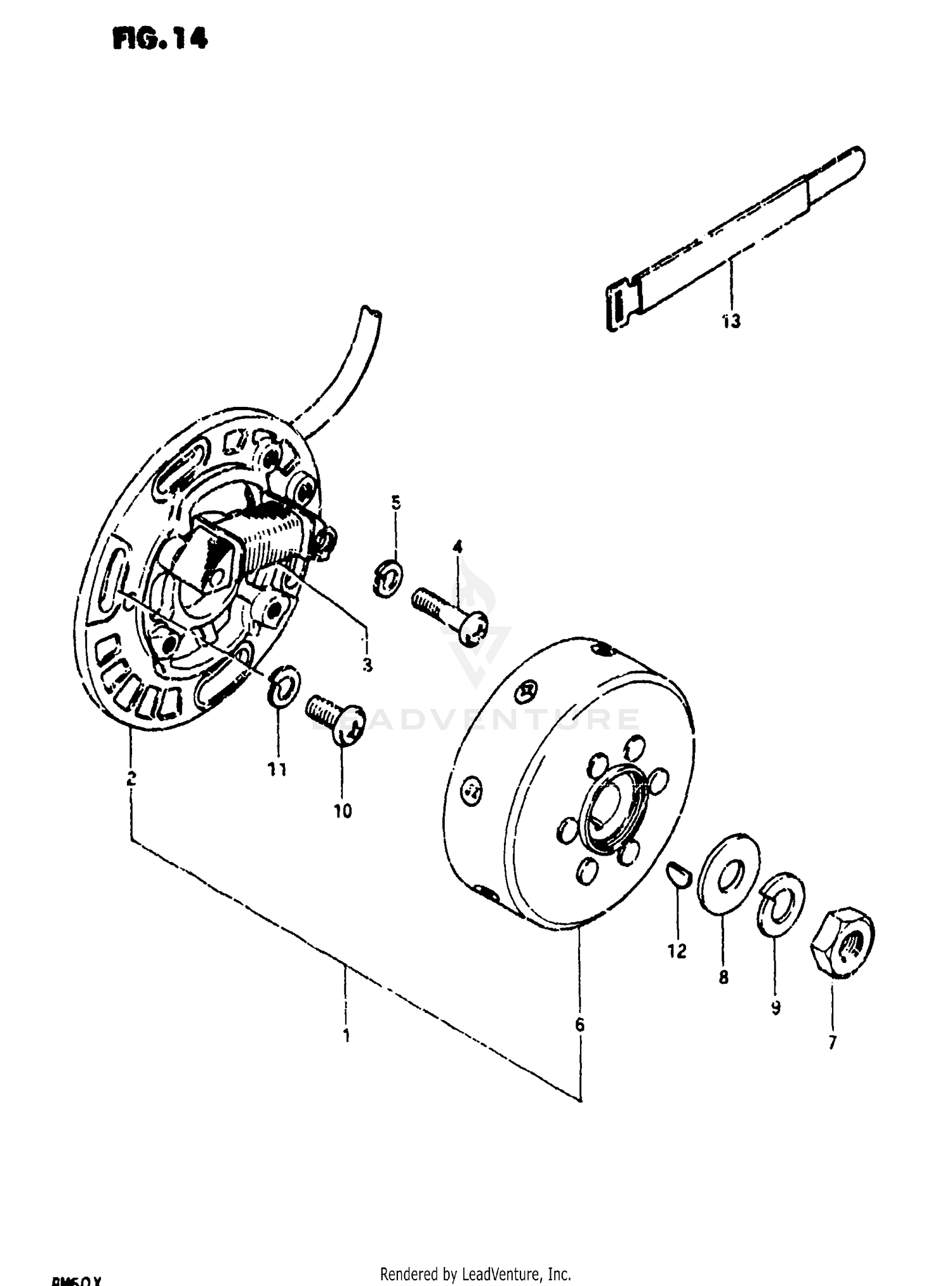

Magneto (rm60x) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STATOR ASSY
32100-46630
Superseded by 32101-46630
|
$118.79 | ||
|
Unavailable |
|||
|
#2
STATOR ASSY
32101-46630
|
$118.79 | ||
|
Unavailable |
|||
|
#3
COIL, PRIMARY
32140-46630
|
$30.36 | ||
|
Unavailable |
|||
|
#4
SCREW
02112-05258
Superseded by 02112-05257
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#5
LOCK WASHER
08321-21058
Superseded by 08321-0105A
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#6
FLYWHEEL
32102-46630
|
$117.08 | ||
|
Unavailable |
|||
|
#7
NUT
09140-10003
Superseded by 09140-10041
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
08322-21108
Superseded by 08322-01107
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
LOCK WASHER
08321-21108
Superseded by 08321-01107
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
02112-06168
Superseded by 02112-06167
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
08322-21068
Superseded by 08322-01067
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
KEY
08341-31039
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CLAMP
09407-18301
Superseded by 09407-18302
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
