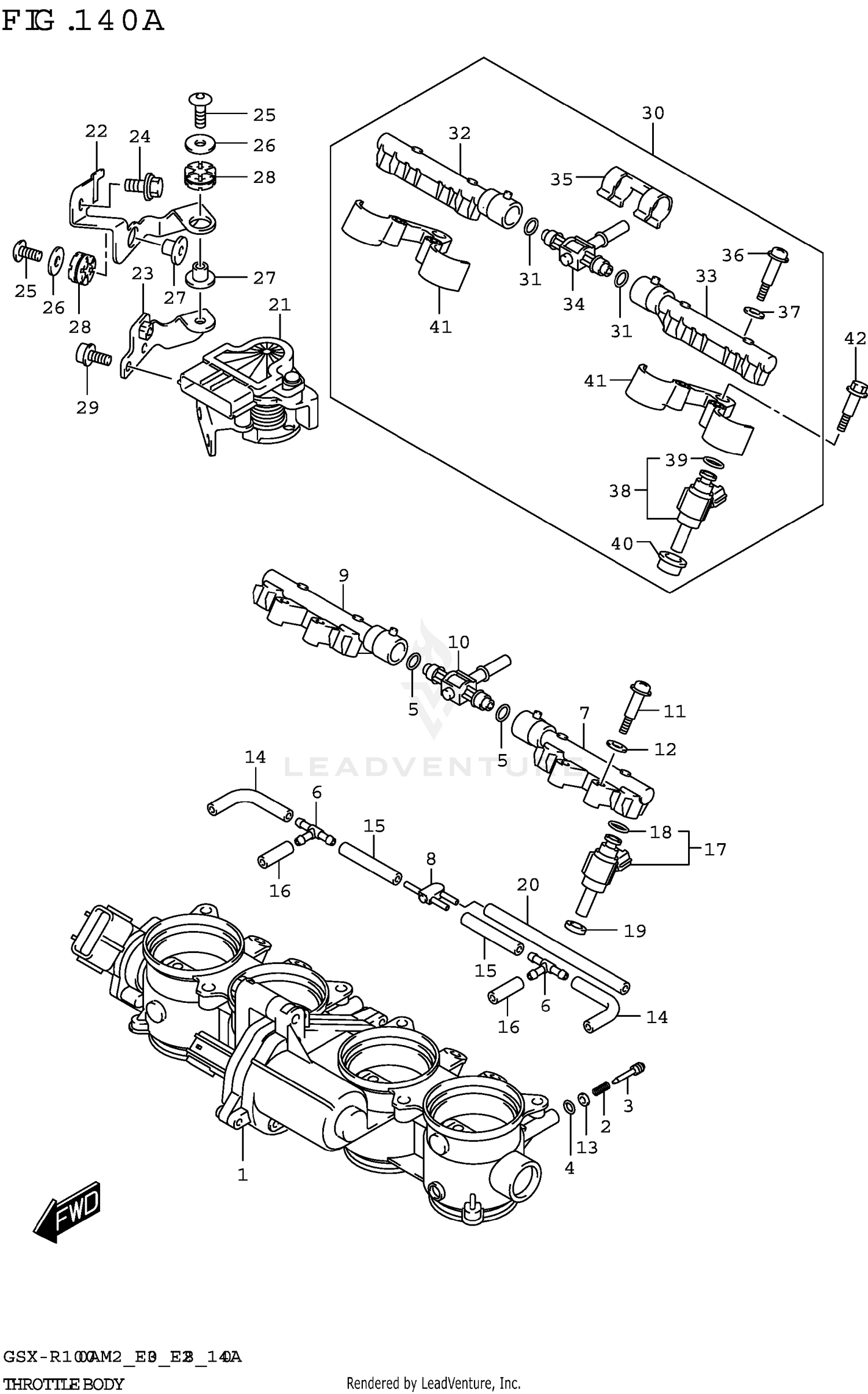

Throttle Body (e03,e28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSY,THROTTLE
13405-17K02
|
$1,555.00 | ||
|
Unavailable |
|||
|
#2
.SPRING,THROTTLE SCREW
13268-48700
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
.SCREW
13269-33E00
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
.O-RING
13295-29901
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
.O-RING
13374-32G00
|
$8.16 | ||
|
Available to order. Add to View Price |
|||
|
#6
.3WAY, VACUUM HOSE
13685-02FA0
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#7
DELIVERY PIPE
13471-17K00
|
$79.91 | ||
|
Available to order. Add to View Price |
|||
|
#8
JOINT
13471-18H00
|
$11.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
DELIVERY PIPE
13472-17K00
|
$79.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
NIPPLE ASSY
13473-17K00
|
$80.54 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
13601-29G00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
.PACKING
13602-29G01
|
$3.07 | ||
|
Available to order. Add to View Price |
|||
|
#13
.WASHER
13606-47A00
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE (3.2X7.4X60)
13681-39F01-060
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#15
.HOSE
13683-10F61
|
$19.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
.HOSE
13683-10F61
|
$19.30 | ||
|
Unavailable |
|||
|
#17
INJECTOR ASSY
15710-04K00
|
$302.17 | ||
|
Available to order. Add to View Price |
|||
|
#18
..O-RING
15717-58B00
|
$12.86 | ||
|
Available to order. Add to View Price |
|||
|
#19
.SEAL
15722-14J00
|
$15.08 | ||
|
Available to order. Add to View Price |
|||
|
#20
.HOSE (3X7X600)
09355-30001-600
|
$10.94 | ||
|
Available to order. Add to View Price |
|||
|
#21
BODY ASSY,ACCELERATOR
13500-17K00
|
$372.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRACKET,ACCEL SENSOR NO.1
13571-17K00
|
$15.22 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET,ACCEL SENSOR NO.2
13572-17K00
|
$10.57 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT (6X12)
09116-06197
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
09139-06208
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER (6.5X20X1.6)
09160-06088
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#27
.SPACER (6.5X10X11.6)
09180-06319
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#28
CUSHION
09320-10055
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
07120-0612B
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#30
BODY ASSY,2ND INJECTOR
15900-17K00
|
$682.78 | ||
|
Available to order. Add to View Price |
|||
|
#31
.O-RING
13374-32G00
|
$8.16 | ||
|
Unavailable |
|||
|
#32
DELIVERY PIPE
13471-17K00
|
$79.91 | ||
|
Unavailable |
|||
|
#33
DELIVERY PIPE
13472-17K00
|
$79.91 | ||
|
Unavailable |
|||
|
#34
NIPPLE ASSY
13473-17K00
|
$80.54 | ||
|
Unavailable |
|||
|
#35
.CLIP
13474-17K00
|
$19.30 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW
13601-29G00
|
$4.55 | ||
|
Unavailable |
|||
|
#37
.PACKING
13602-29G01
|
$3.07 | ||
|
Unavailable |
|||
|
#38
.INJECTOR ASSY
15710-17K10
|
$273.72 | ||
|
Available to order. Add to View Price |
|||
|
#39
..O-RING
15717-58B00
|
$12.86 | ||
|
Unavailable |
|||
|
#40
.INSULATOR
15722-17K00
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#41
.BRACKET,2ND INJECTOR
15910-17K00
|
$58.04 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT
09111-06250
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
