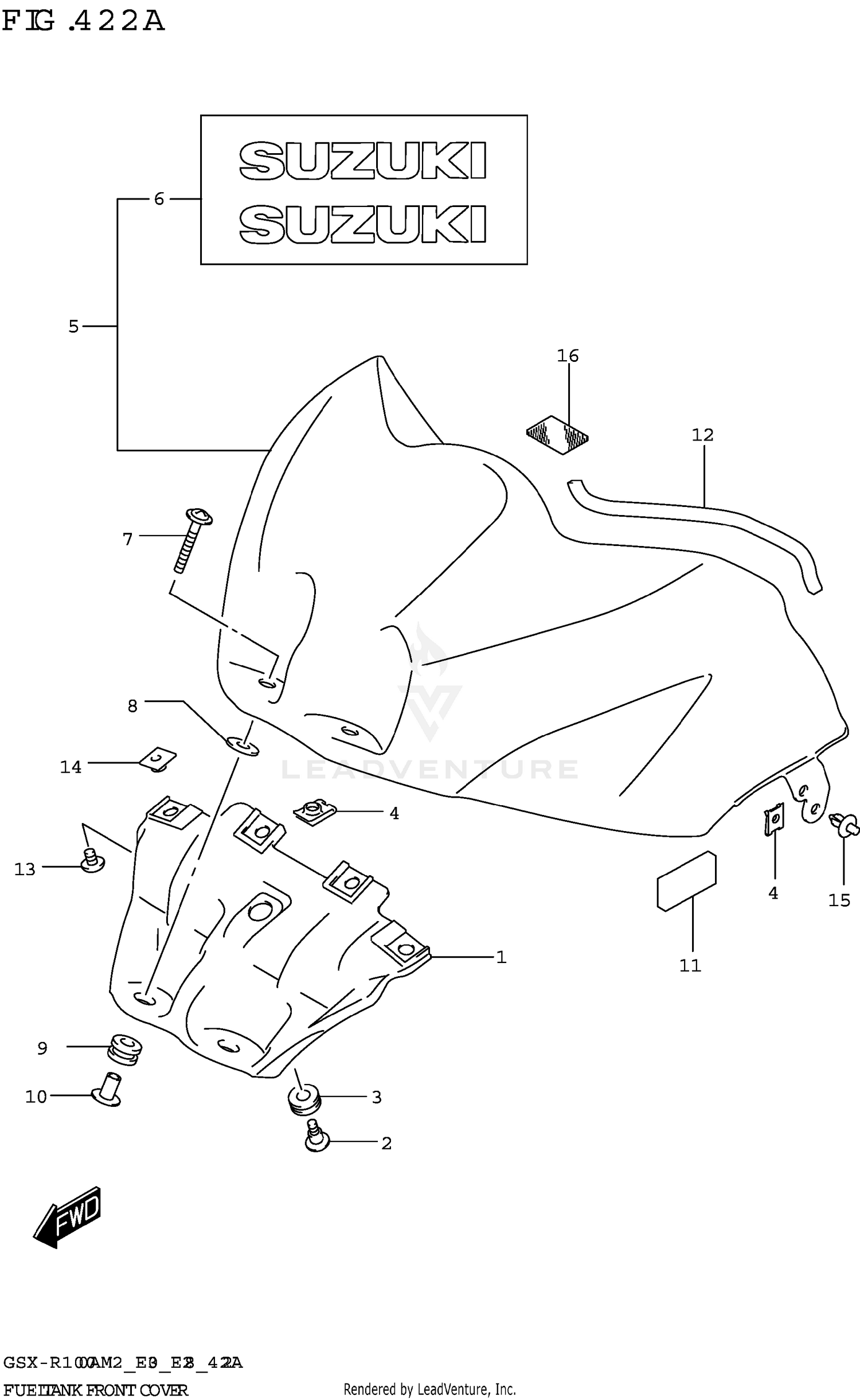

Fuel Tank Front Cover (gsx-r1000a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET,FUEL TANK FRONT
44521-17K00
|
$96.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW (5X16.4)
09139-05078
|
$4.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
CUSHION (8.5X20X8)
09320-08510
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
09148-05052
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#5-1
COVER,FUEL TANK FR (BLACK)
44290-17KF0-YKV
|
$218.76 | ||
|
Unavailable |
|||
|
#5-2
COVER,FUEL TANK FR (GRAY)
44290-17KF0-QT7
|
$218.76 | ||
|
Unavailable |
|||
|
#6
.EMBLEM,SUZUKI (BLACK)
68111-17K00-019
|
$32.01 | ||
|
Unavailable |
|||
|
#7
SCREW (6X40)
09139-06210
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
09160-06012
Superseded by 09160-06054
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION (10X22X13)
09320-10050
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER, FUEL TANK FRONT
44512-17K00
|
$6.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
PROTECTOR (50X50X5)
33652-21G00
Superseded by 33652-20C00
|
$3.86 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION,FUEL TANK COVER (L:38
44277-17K00
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW (6X10)
09139-06181
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT (M6)
44523-47H00
|
$13.30 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP
09409-06314
Superseded by 09409-06314-5PK
|
$3.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
FASTENER (20X15X2.6)
44572-44G00
|
$13.15 | ||
|
Available to order. Add to View Price |
|||
