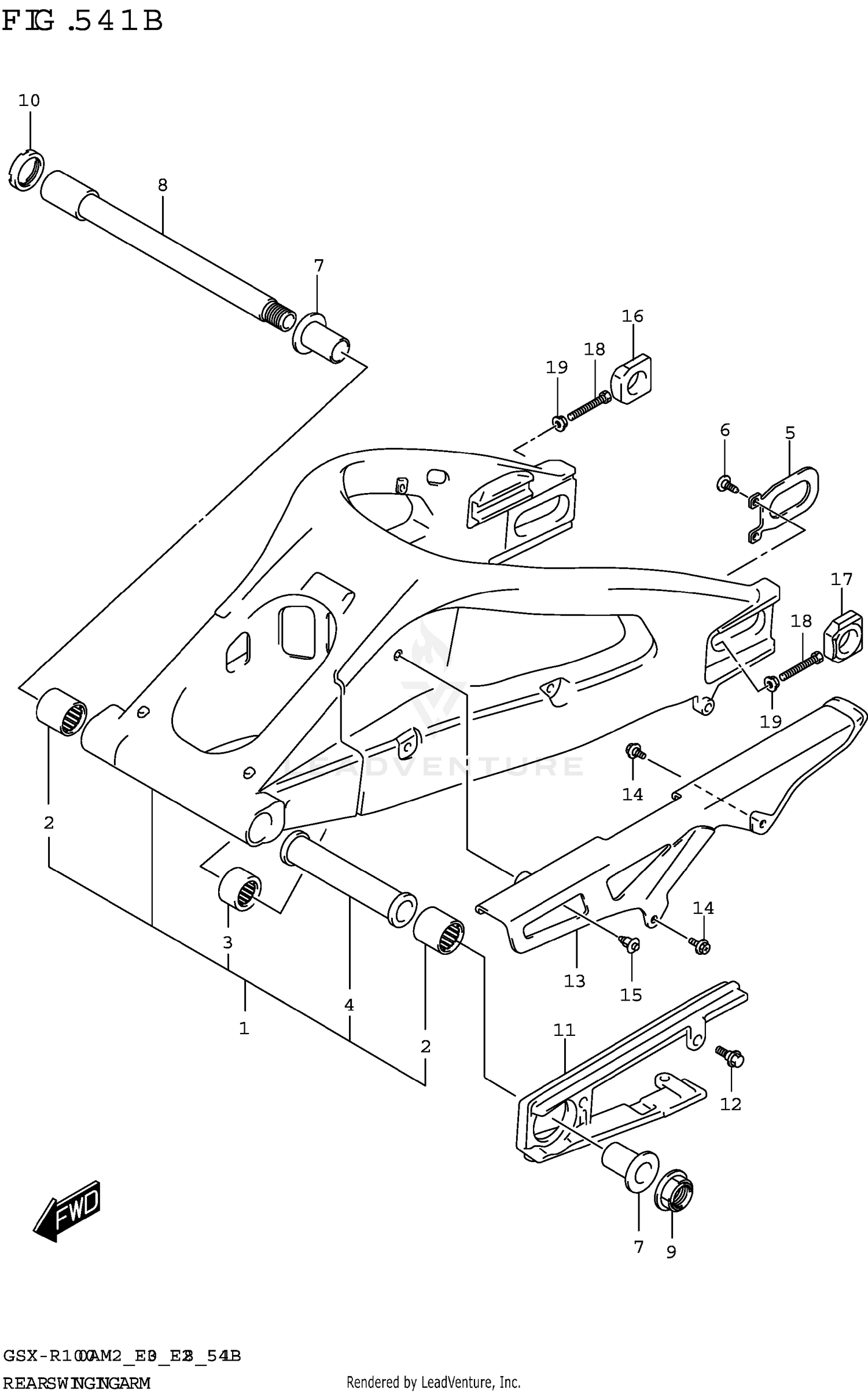

Rear Swingingarm (gsx-r1000a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWINGINGARM ASSY,REAR (BLACK)
61000-17K01-YAP
|
$2,562.90 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BEARING (27X35X35)
09263-27015
|
$34.56 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BEARING (20X27X30)
09263-20070
|
$41.01 | ||
|
Available to order. Add to View Price |
|||
|
#4
.SPACER,RR SWG PVT CTR
61281-41G00
|
$62.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, RR SWING ARM BRKT
61124-41G00
|
$9.88 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW (6X12)
09125-06060
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER,RR SWGARM PIVOT BEARIN
61251-41G00
|
$50.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT,RR SWGARM PIVOT
61211-01H00
|
$192.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
09159-20006
|
$34.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT,RR SWGARM PIVOT BOLT
61214-42E10
|
$48.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUFFER,CHAIN TOUCH DEFENSE
61273-17K00
|
$31.93 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW,CHAIN BUFFER (6X17.8)
09139-06226
|
$3.68 | ||
|
Unavailable |
|||
|
#13
CASE,CHAIN
61311-21H00
|
$71.76 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT,CHAIN CASE (6X12)
09139-06225
|
$3.64 | ||
|
Unavailable |
|||
|
#15
CLIP (7.6X25.7)
09409-08308
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#16
ADJUSTER,CHAIN LH
61446-40F00
|
$60.92 | ||
|
Available to order. Add to View Price |
|||
|
#17
ADJUSTER,CHAIN RH
61445-40F00
|
$60.92 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT (8X60)
09100-08305
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
08316-1008A
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
