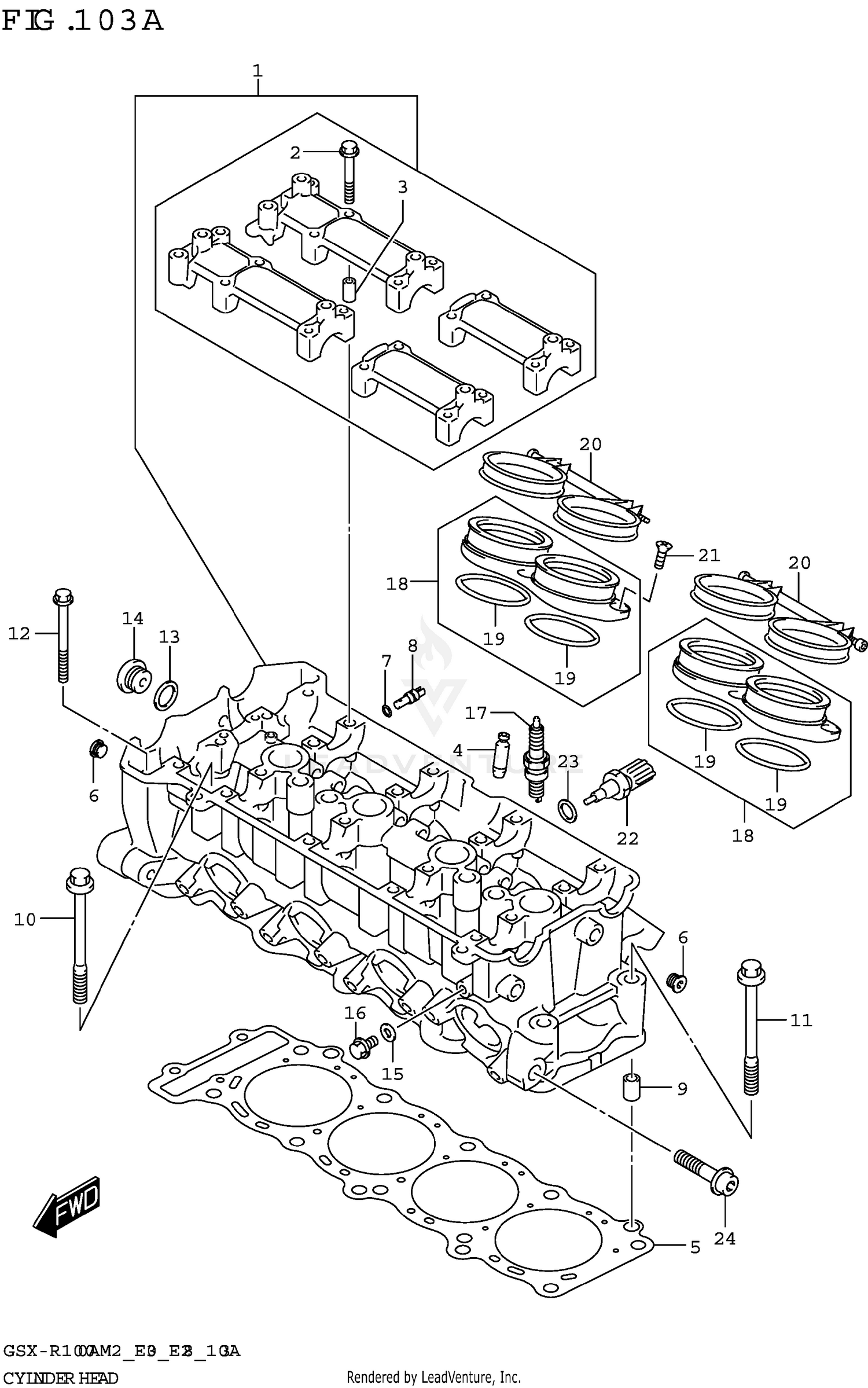

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY,CYLINDER
11100-17K00
|
$1,869.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BOLT (6X40)
09103-06266
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#3
.PIN (6.2X8X16)
09206-08007
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE,VALVE (OS:0.3)
11115-29G70
|
$43.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
.GASKET,CYLINDER HEAD
11141-17K00
|
$86.06 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG (10X5)
09248-10006
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
O RING (D:1.2,ID:4)
09280-04004
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
JET (#80)
09493-80005
|
$17.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
.PIN
04211-11169
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT,CYLINDER HEAD (10X95)
11117-29G00
|
$11.54 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT,CYLINDER HEAD (10X95)
11117-29G20
|
$9.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01547-0665A
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET (16X22X0.8)
09168-16009
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG (16X8)
09248-16012
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT
01550-0612A
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17-1
PLUG,SPARK (CR9EIA-9)
09482-00558
|
$15.01 | ||
|
Available to order. Add to View Price |
|||
|
#17-2
PLUG,SPARK (CR8EIA-9)
09482-00556
|
$13.41 | ||
|
Available to order. Add to View Price |
|||
|
#17-3
PLUG,SPARK (CR10EIA-9)
09482-00560
|
$13.91 | ||
|
Available to order. Add to View Price |
|||
|
#17-4
PLUG,SPARK (IU27D)
09482-00557
|
$21.29 | ||
|
Unavailable |
|||
|
#17-5
PLUG,SPARK (IU24D)
09482-00555
|
$23.03 | ||
|
Unavailable |
|||
|
#17-6
PLUG,SPARK (IU31D)
09482-00559
|
$21.92 | ||
|
Unavailable |
|||
|
#18
PIPE ASSY,INTAKE
13101-17K00
|
$71.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
.O-RING (D:2.4,ID:44.7)
09280-45004
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP,INTAKE PIPE
13170-17K00
|
$28.46 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
02122-0616A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#22
SENSOR,TEMP
13650-49X00
|
$116.42 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET (12X17X1)
09168-12017
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT (10X45)
09106-10069
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
