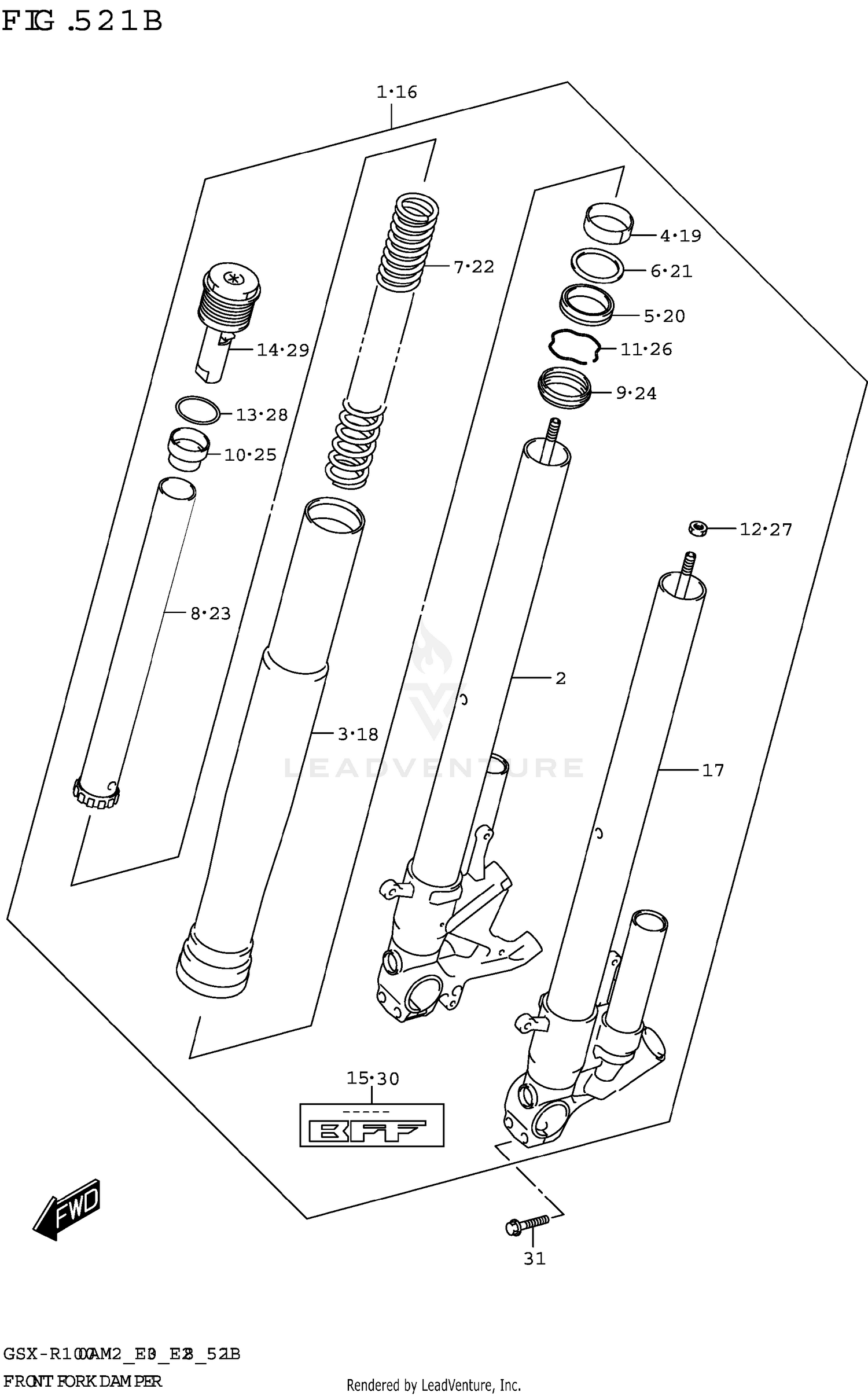

Front Fork Damper (gsx-r1000ra,gsx-r1000rza) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER ASSY,FR,R
51103-17K31
|
$3,871.92 | ||
|
Available to order. Add to View Price |
|||
|
#2
.TUBE,INNER,R
51110-17K30
|
$3,538.43 | ||
|
Available to order. Add to View Price |
|||
|
#3
.TUBE,OUTER
51131-17K10
|
$682.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
.BUSH,GUIDE
51152-47H00
|
$18.34 | ||
|
Available to order. Add to View Price |
|||
|
#5
.SEAL,OIL
51153-27G00
|
$29.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
.SPACER,SEAL
51168-29G00
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
.SPRING
51171-17K10
|
$145.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
.SPRING COLLAR
51198-17K10
|
$138.21 | ||
|
Available to order. Add to View Price |
|||
|
#9
.SEAL,DUST
51173-27G00
|
$34.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
.SPRING COLLAR
51175-17K10
|
$71.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
.RING,STOPPER
51556-38B00
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#12
..NUT
51827-29G00
|
$8.62 | ||
|
Unavailable |
|||
|
#13
.O-RING
51187-47H00
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
.BOLT
51189-17K30
|
$266.80 | ||
|
Unavailable |
|||
|
#15
.LABEL
68281-17K10
|
$8.50 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER ASSY,FR,L
51104-17K31
|
$3,871.92 | ||
|
Available to order. Add to View Price |
|||
|
#17
.TUBE,INNER,LH
51120-17K30
|
$3,452.12 | ||
|
Unavailable |
|||
|
#18
.TUBE,OUTER
51131-17K10
|
$682.78 | ||
|
Unavailable |
|||
|
#19
.BUSH,GUIDE
51152-47H00
|
$18.34 | ||
|
Unavailable |
|||
|
#20
.SEAL,OIL
51153-27G00
|
$29.78 | ||
|
Unavailable |
|||
|
#21
.SPACER,SEAL
51168-29G00
|
$8.65 | ||
|
Unavailable |
|||
|
#22
.SPRING
51171-17K10
|
$145.18 | ||
|
Unavailable |
|||
|
#23
.SPRING COLLAR
51198-17K10
|
$138.21 | ||
|
Unavailable |
|||
|
#24
.SEAL,DUST
51173-27G00
|
$34.32 | ||
|
Unavailable |
|||
|
#25
.SPRING COLLAR
51175-17K10
|
$71.45 | ||
|
Unavailable |
|||
|
#26
.RING,STOPPER
51556-38B00
|
$9.32 | ||
|
Unavailable |
|||
|
#27
..NUT
51827-29G00
|
$8.62 | ||
|
Unavailable |
|||
|
#28
.O-RING
51187-47H00
|
$9.20 | ||
|
Unavailable |
|||
|
#29
.BOLT
51189-17K30
|
$266.80 | ||
|
Unavailable |
|||
|
#30
.LABEL
68281-17K10
|
$8.50 | ||
|
Unavailable |
|||
|
#31
BOLT
51321-36F00
|
$7.68 | ||
|
Available to order. Add to View Price |
|||
