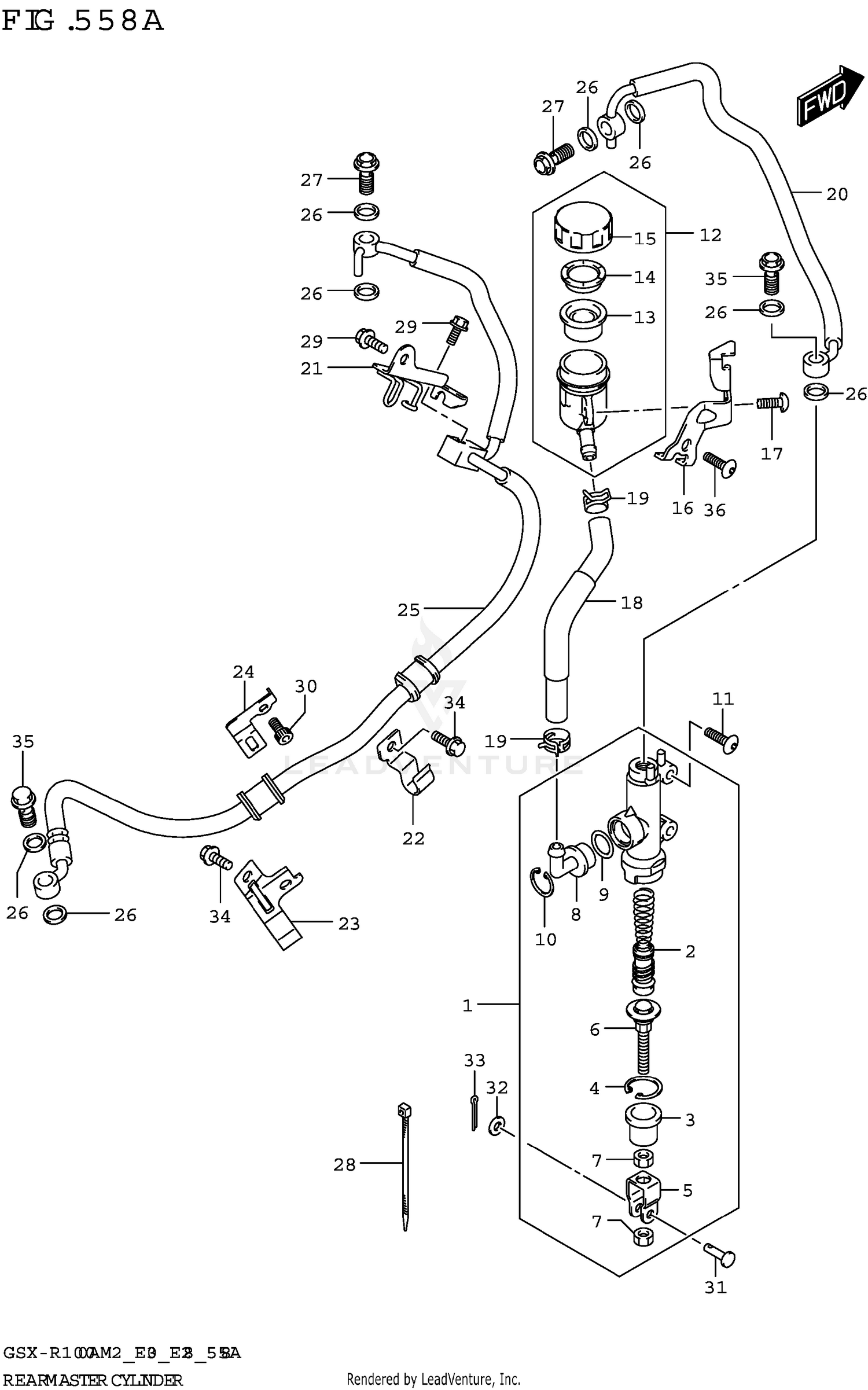

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY, REAR MASTER
69600-47H31
|
$247.57 | ||
|
Available to order. Add to View Price |
|||
|
#2
.PISTON/CUP SET
69600-34810
|
$63.77 | ||
|
Available to order. Add to View Price |
|||
|
#3
..BOOT
69691-04A00
|
$5.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
..CIRCLIP
69665-47H00
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
.YOKE
69692-47H00
|
$15.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
.ROD, PUSH
69670-17K00
|
$19.56 | ||
|
Available to order. Add to View Price |
|||
|
#7
.NUT
69693-47H00
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#8
.CONNECTOR
69672-00B20
|
$9.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
.O-RING
69686-34200
|
$3.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
.CIRCLIP
69674-00B20
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
09139-06224
|
$4.03 | ||
|
Unavailable |
|||
|
#12
TANK ASSY,REAR RESERVOIR
69740-17K00
|
$35.86 | ||
|
Available to order. Add to View Price |
|||
|
#13
.DIAPHRAGM
59667-33J00
|
$11.22 | ||
|
Available to order. Add to View Price |
|||
|
#14
.PLATE
59668-33J00
|
$6.76 | ||
|
Available to order. Add to View Price |
|||
|
#15
.CAP
69669-17K00
|
$15.00 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET,RR RESERVOIR TANK
69750-17K00
|
$20.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW (6X16)
09139-06139
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE,RR RESERVOIR TANK
69730-17K00
|
$17.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP
09401-12412
|
$1.97 | ||
|
Unavailable |
|||
|
#20
HOSE
69240-17K21
|
$65.42 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP,RR BRAKE HOSE
69260-17K00
|
$22.66 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP,RR BRAKE HOSE
69268-17K00
|
$9.07 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP,RR BRAKE HOSE
69270-17K00
|
$12.80 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP,RR BRAKE HOSE
69272-17K00
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOSE
69480-17K31
|
$128.22 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER (10X15X1.5)
09161-10009
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#27
UNION (10X1.25X22)
09360-10062
|
$8.08 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP (L:145)
09407-14407
|
$3.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BOLT
01547-0612A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
01547-0612B
|
$1.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
PIN (6X18.2)
09200-06068
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER
08322-0106A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN
04111-2015A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT
01547-0612B
|
$1.53 | ||
|
Unavailable |
|||
|
#35
UNION
09360-10042
Superseded by 09360-10062
|
$8.08 | ||
|
Unavailable |
|||
|
#36
SCREW (6X16)
09139-06214
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
