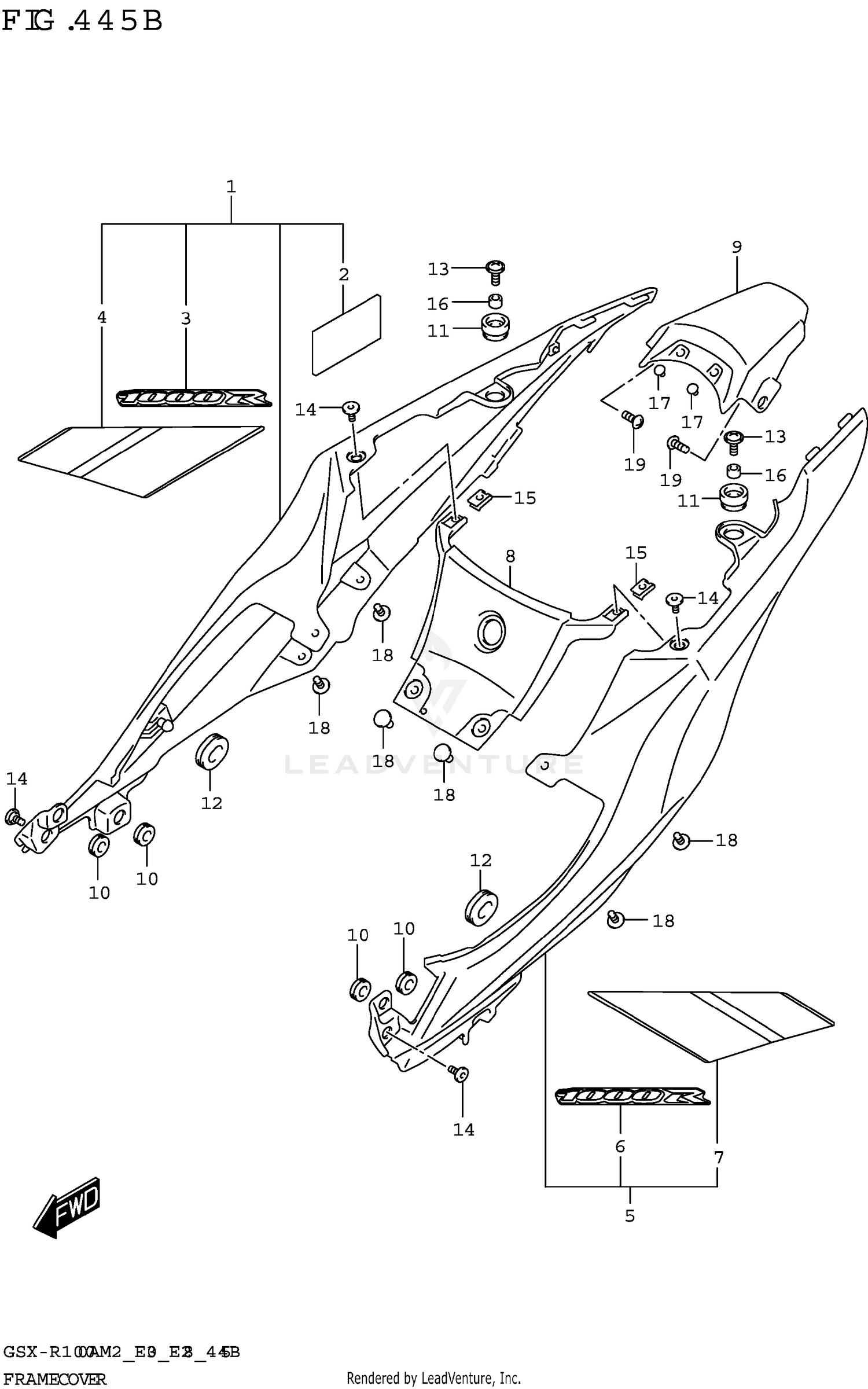

Frame Cover (gsx-r1000ra) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1-1
COVER,FRAME,R (BLACK)
47110-17KB0-4TX
|
$164.61 | ||
|
Available to order. Add to View Price |
|||
|
#1-2
COVER,FRAME,R (GRAY)
47110-17KB0-QT7
|
$156.58 | ||
|
Available to order. Add to View Price |
|||
|
#2
CUSHION (45X100X3)
33652-17K10
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#3-1
.EMBLEM,FRAME COVER (BLACK,SI
68131-17K00-B9Q
|
$16.84 | ||
|
Unavailable |
|||
|
#3-2
.EMBLEM,FRAME COVER (GRAY,SIL
68131-17K00-CGD
|
$16.84 | ||
|
Unavailable |
|||
|
#4-1
.TAPE,FRAME COVER,R (ORANGE,S
68135-17K70-B9N
|
$21.47 | ||
|
Unavailable |
|||
|
#4-2
.TAPE,FRAME COVER,R (BLACK,GR
68135-17K70-CGA
|
$21.47 | ||
|
Unavailable |
|||
|
#5-1
COVER,FRAME,L (BLACK)
47210-17KB0-4TX
|
$164.61 | ||
|
Available to order. Add to View Price |
|||
|
#5-2
COVER,FRAME,L (GRAY)
47210-17KB0-QT7
|
$156.58 | ||
|
Unavailable |
|||
|
#6-1
.EMBLEM,FRAME COVER (BLACK,SI
68131-17K00-B9Q
|
$16.84 | ||
|
Unavailable |
|||
|
#6-2
.EMBLEM,FRAME COVER (GRAY,SIL
68131-17K00-CGD
|
$16.84 | ||
|
Unavailable |
|||
|
#7-1
.TAPE,FRAME COVER,L (ORANGE,S
68145-17K70-B9N
|
$21.47 | ||
|
Unavailable |
|||
|
#7-2
.TAPE,FRAME COVER,L (BLACK,GR
68145-17K70-CGA
|
$21.47 | ||
|
Unavailable |
|||
|
#8
COVER,FRAME CENTER FRONT
47311-17K00
|
$34.62 | ||
|
Available to order. Add to View Price |
|||
|
#9-1
COVER,FRAME CTR RR (BLACK)
47411-17K00-YKV
|
$79.39 | ||
|
Available to order. Add to View Price |
|||
|
#9-2
COVER,FRAME CTR RR (GRAY)
47411-17K00-QT7
|
$64.77 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION,FUEL TANK COVER SIDE
44173-14J00
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
.CUSHION (10X24X13)
47312-37H10
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
|
#12
.CUSHION,UNDER COWL,R
94478-14J00
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW (6X16)
09139-06139
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW (5X13)
09139-05092
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
09148-05052
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER (6.5X10X7)
09180-06283
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLUG (OD:10)
09250-06017
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP
09409-06328
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
03541-0516A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
