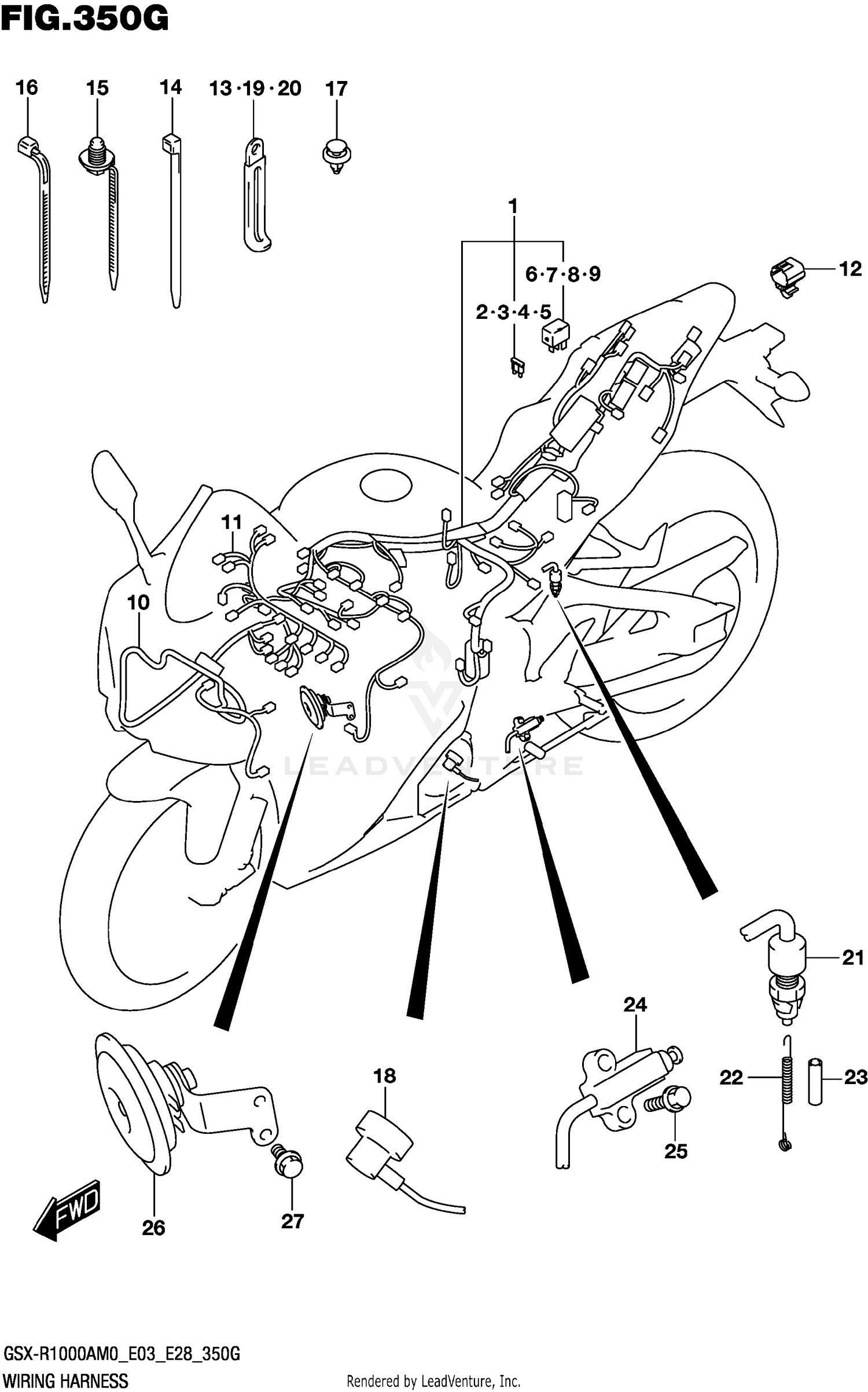

Wiring Harness (gsx-r1000a:e03,e28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS,WIRING NO.1
36610-17KH0
|
$898.21 | ||
|
Available to order. Add to View Price |
|||
|
#2
.FUSE (7.5A)
09481-07504
|
$1.56 | ||
|
Unavailable |
|||
|
#3
.FUSE (10A)
09481-10504
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
.FUSE (15A)
09481-15504
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
.FUSE (30A)
09481-30504
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#6
.RELAY ASSY
38860-76F01
|
$43.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
.RELAY ASSY
38860-76F01
|
$43.75 | ||
|
Unavailable |
|||
|
#8
.RELAY ASSY
38860-76F01
|
$43.75 | ||
|
Unavailable |
|||
|
#9
.RELAY ASSY
38860-76F01
|
$43.75 | ||
|
Unavailable |
|||
|
#10
HARNESS,WIRING NO.2
36620-17K20
|
$265.63 | ||
|
Available to order. Add to View Price |
|||
|
#11
HARNESS,WIRING NO.3
36630-17K00
|
$223.97 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP,TS
36654-06J30
Superseded by 36654-06J31
|
$16.41 | ||
|
Unavailable |
|||
|
#13
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#14
CLAMP (L:145)
09407-14407
|
$3.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
CLAMP (L:154)
09407-17403
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CLIP
09409-06328
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
WIRE,OIL PRESSURE SWITCH LEAD
36851-17K00
|
$18.02 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#20
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
SWITCH ASSY,STOP LAMP
37740-17K00
|
$28.63 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING
43232-17K00
|
$5.38 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE (5X8.2X60)
09352-50005-060
|
|||
|
Unavailable |
|||
|
#24
SWITCH ASSY,SIDE STAND
37840-35F01
Superseded by 37840-35F02
|
$63.94 | ||
|
Unavailable |
|||
|
#25
BOLT (6X20)
01550-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#26
HORN ASSY
38500-17K00
|
$75.56 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
01550-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
