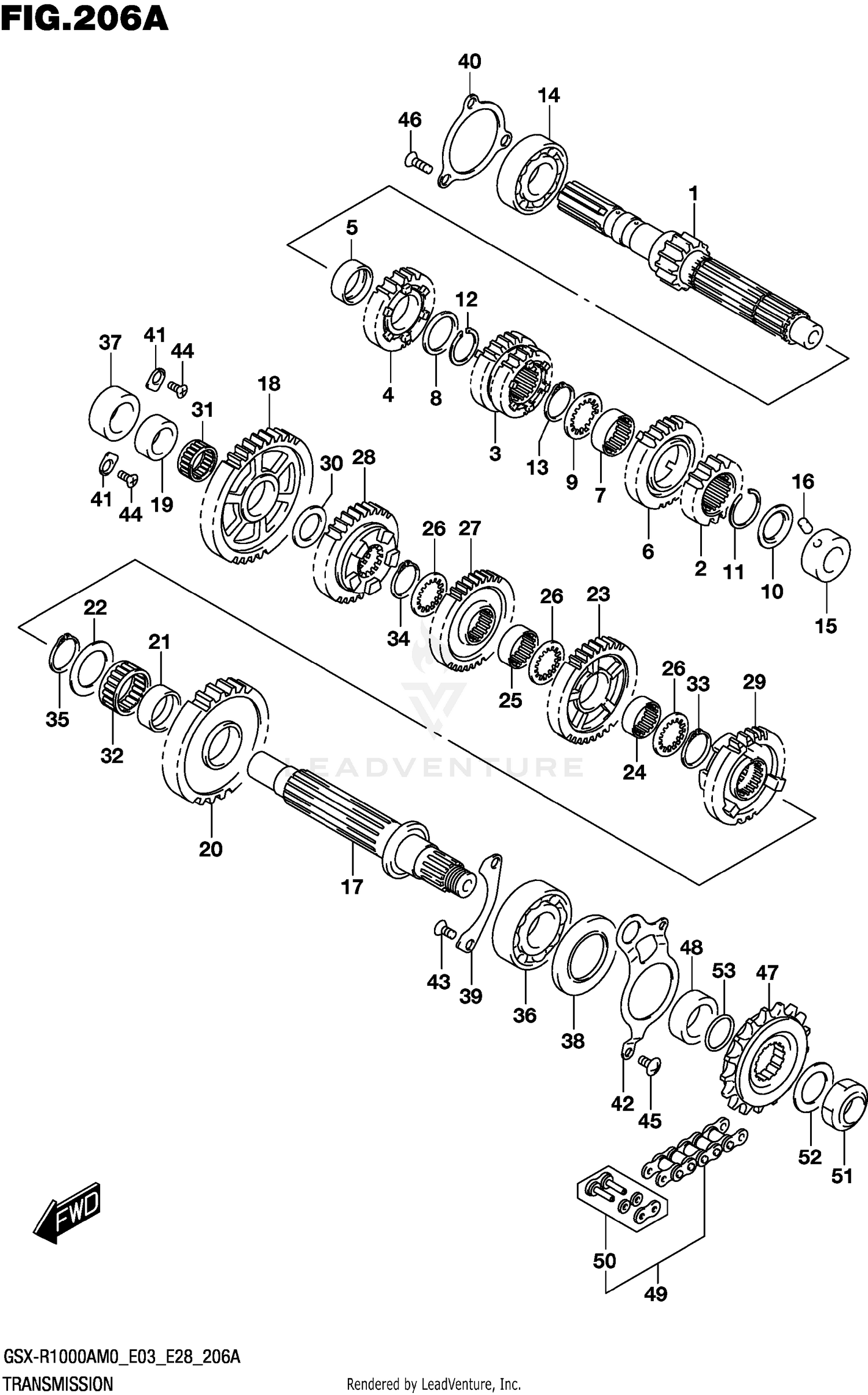

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT,CNTR (NT:16)
24120-17K10
|
$295.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, 2ND DRIVE (NT:19)
24221-40F30
|
$132.63 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR,3RD & 4TH DRIVE (NT:21/2
24231-47H10
|
$174.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR,5TH DRIVE (NT:25)
24251-47H20
|
$140.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH,5TH DRIVE GEAR
24252-24F20
|
$62.41 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR,6TH DRIVE (NT:26)
24261-47H20
|
$140.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH,6TH DRIVE GEAR
24262-24F20
|
$41.56 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER (27X36X1.0)
09160-27008
|
$4.01 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
WASHER,LOCK (27X36X1)
09167-27001
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL,OIL (20X31.2X2.7)
09285-20006
|
$8.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
CIRCLIP
09380-27004
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
09380-27006
|
$3.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CIRCLIP
09380-27006
|
$3.38 | ||
|
Unavailable |
|||
|
#14
BEARING
09262-25001
|
$57.66 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
09263-20114
|
$72.74 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN
04221-07129
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHAFT,DRIVE
24131-17K00
|
$266.84 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR,1ST DRIVEN (NT:41)
24311-47H00
|
$192.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER,1ST DRIVEN GEAR
24315-17K00
|
$32.30 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR,2ND DRIVEN (NT:39)
24321-17K00
|
$141.88 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUSH,2ND DRIVEN GEAR
24322-17K00
|
$35.86 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER,2ND DRIVEN GEAR
24323-17K00
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR,3RD DRIVEN (NT:36)
24331-47H20
|
$141.88 | ||
|
Available to order. Add to View Price |
|||
|
#24
BUSH,3RD DRIVEN GEAR
24332-24F20
|
$41.56 | ||
|
Available to order. Add to View Price |
|||
|
#25
BUSH,3RD DRIVEN GEAR
24332-24F20
|
$41.56 | ||
|
Unavailable |
|||
|
#26
WASHER,3RD & 4TH DRIVEN GEAR
24333-47H00
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#27
GEAR,4TH DRIVEN (NT:36)
24341-47H10
|
$209.27 | ||
|
Available to order. Add to View Price |
|||
|
#28
GEAR,5TH DRIVEN (NT:34)
24351-47H00
|
$192.09 | ||
|
Available to order. Add to View Price |
|||
|
#29
GEAR,6TH DRIVEN (NT:33)
24361-17K00
|
$145.18 | ||
|
Available to order. Add to View Price |
|||
|
#30
SHIM (24X34X1)
09181-24005
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING (24X28X13)
09263-24030
|
$27.57 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING (35X40X12)
09263-35045
|
$25.44 | ||
|
Available to order. Add to View Price |
|||
|
#33
CIRCLIP
09380-30009
|
$4.38 | ||
|
Available to order. Add to View Price |
|||
|
#34
CIRCLIP
09380-30009
|
$4.38 | ||
|
Unavailable |
|||
|
#35
CIRCLIP
09380-30009
|
$4.38 | ||
|
Unavailable |
|||
|
#36
BEARING
09262-30001
|
$61.25 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING
09263-22074
|
$72.74 | ||
|
Available to order. Add to View Price |
|||
|
#38
OIL SEAL
09283-40043
|
$29.28 | ||
|
Available to order. Add to View Price |
|||
|
#39
RETAINER,DRIVE SHAFT BRG
24741-06G00
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#40
RETAINER,COUNTER SHAFT BRG
24741-17K00
|
$22.46 | ||
|
Available to order. Add to View Price |
|||
|
#41
RETAINER, CL HSG BRG
24741-20A00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#42
RETAINER,CL PUSH ROD OIL SEAL
24751-17K00
|
$14.25 | ||
|
Available to order. Add to View Price |
|||
|
#43
SCREW (6X12)
09126-06011
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#44
SCREW (6X12)
09126-06011
|
$2.53 | ||
|
Unavailable |
|||
|
#45
SCREW (6X13)
09139-06153
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#46
SCREW (6X20)
09139-06159
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#47
SPROCKET,ENGINE (NT:17)
27510-17K00
|
$119.19 | ||
|
Available to order. Add to View Price |
|||
|
#48
SPACER,ENGINE SPROCKET
27531-17K00
|
$28.77 | ||
|
Available to order. Add to View Price |
|||
|
#49
CHAIN ASSY,DRIVE (DID525HV3)
27600-17K00-120
|
$335.07 | ||
|
Available to order. Add to View Price |
|||
|
#50
.JOINT SET (DID525HV3)
27620-17K00
|
$19.58 | ||
|
Available to order. Add to View Price |
|||
|
#51
NUT
09159-22008
|
$37.86 | ||
|
Available to order. Add to View Price |
|||
|
#52
SHIM (27X42X1.5)
09181-27016
|
$7.30 | ||
|
Available to order. Add to View Price |
|||
|
#53
O-RING (D:2.4,ID:26.2)
09280-26005
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
