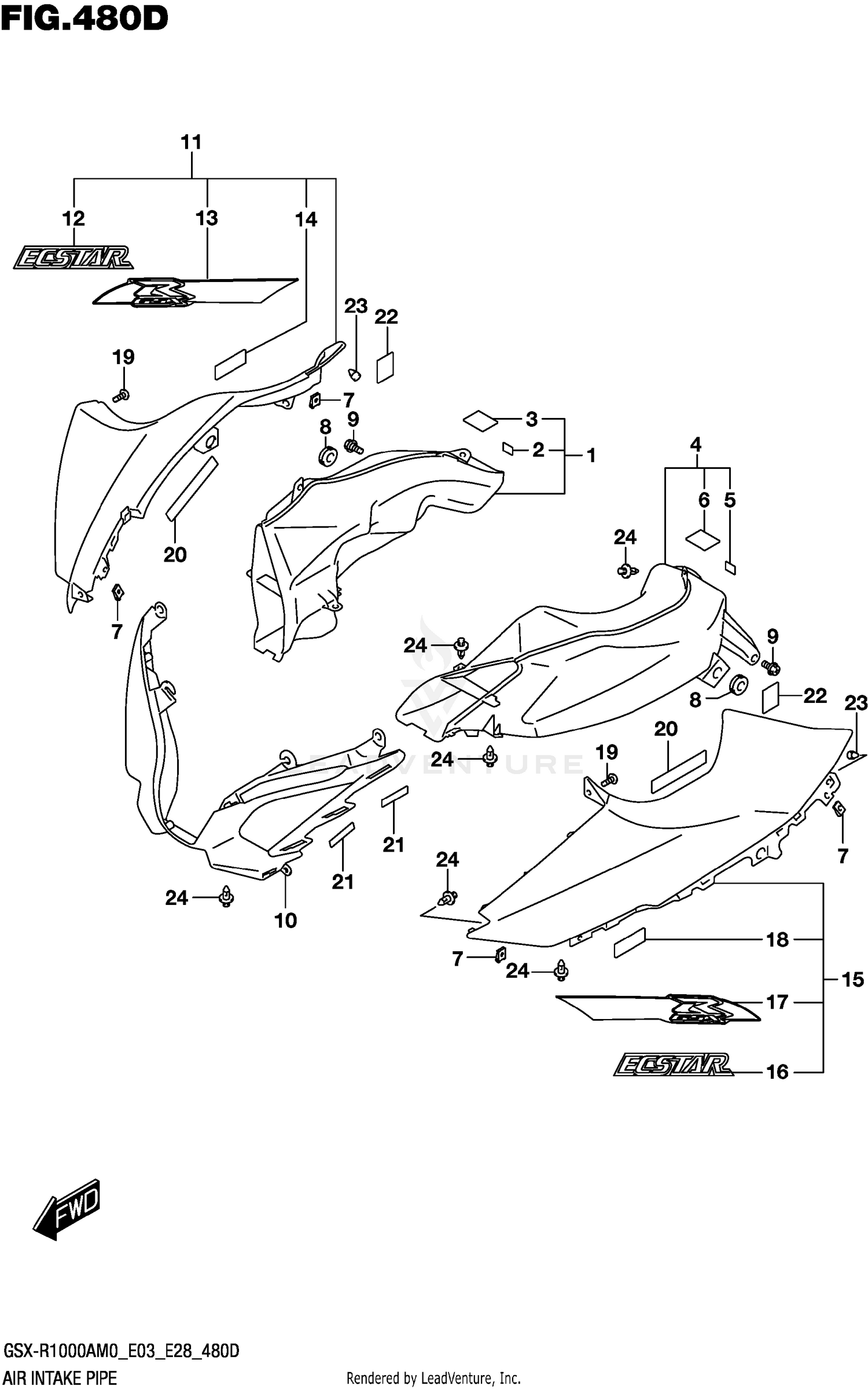

Air Intake Pipe (gsx-r1000ra)(see Note 1) 480d Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE,AIR INTAKE,R
94420-17K00
|
$81.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
.CUSHION (10X10X1)
63115-37H00
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER (30X45X2)
36930-60A10
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE,AIR INTAKE,L
94430-17K00
|
$81.38 | ||
|
Available to order. Add to View Price |
|||
|
#5
.CUSHION (10X10X1)
63115-37H00
|
$4.83 | ||
|
Unavailable |
|||
|
#6
COVER (30X45X2)
36930-60A10
|
$3.75 | ||
|
Unavailable |
|||
|
#7
NUT
09148-05052
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION
09320-08028
|
$3.81 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT (6X12)
09111-06106
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER,INTAKE (BLACK)
94671-17K00-YVB
|
$89.38 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER,INTAKE,RH (BLACK)
94670-17K50-YVB
|
$198.07 | ||
|
Available to order. Add to View Price |
|||
|
#12
.EMBLEM,INTAKE COVER (BLUE,WH
68275-17K50-BW1
|
$18.51 | ||
|
Available to order. Add to View Price |
|||
|
#13
.TAPE,INTAKE COVER,R (BLACK,B
68275-17K60-BWZ
|
$39.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
.PAD (8X20X2)
73415-70A00
|
$1.83 | ||
|
Unavailable |
|||
|
#15
COVER,INTAKE,LH (BLACK)
94680-17K50-YVB
|
$217.94 | ||
|
Available to order. Add to View Price |
|||
|
#16
.EMBLEM,INTAKE COVER (BLUE,WH
68275-17K50-BW1
|
$18.51 | ||
|
Unavailable |
|||
|
#17
.TAPE,INTAKE COVER,L (BLACK,B
68276-17K60-BWZ
|
$39.04 | ||
|
Available to order. Add to View Price |
|||
|
#18
.PAD (8X20X2)
73415-70A00
|
$1.83 | ||
|
Unavailable |
|||
|
#19
SCREW (5X12)
09132-05050
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER (30X100X2)
36930-82010
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
CUSHION,UNDER COWL,NO.1
94476-38C00
|
$2.67 | ||
|
Unavailable |
|||
|
#22
CUSHION,COVER SIDE
94633-31J00
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#23
CUSHION,LICENSE PLATE
09321-06036
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP
09409-06314
Superseded by 09409-06314-5PK
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLOR:KEL=YVB(BLACK)/YSF(BLUE)
SPECIAL NOTE
|
|||
|
Unavailable |
|||
