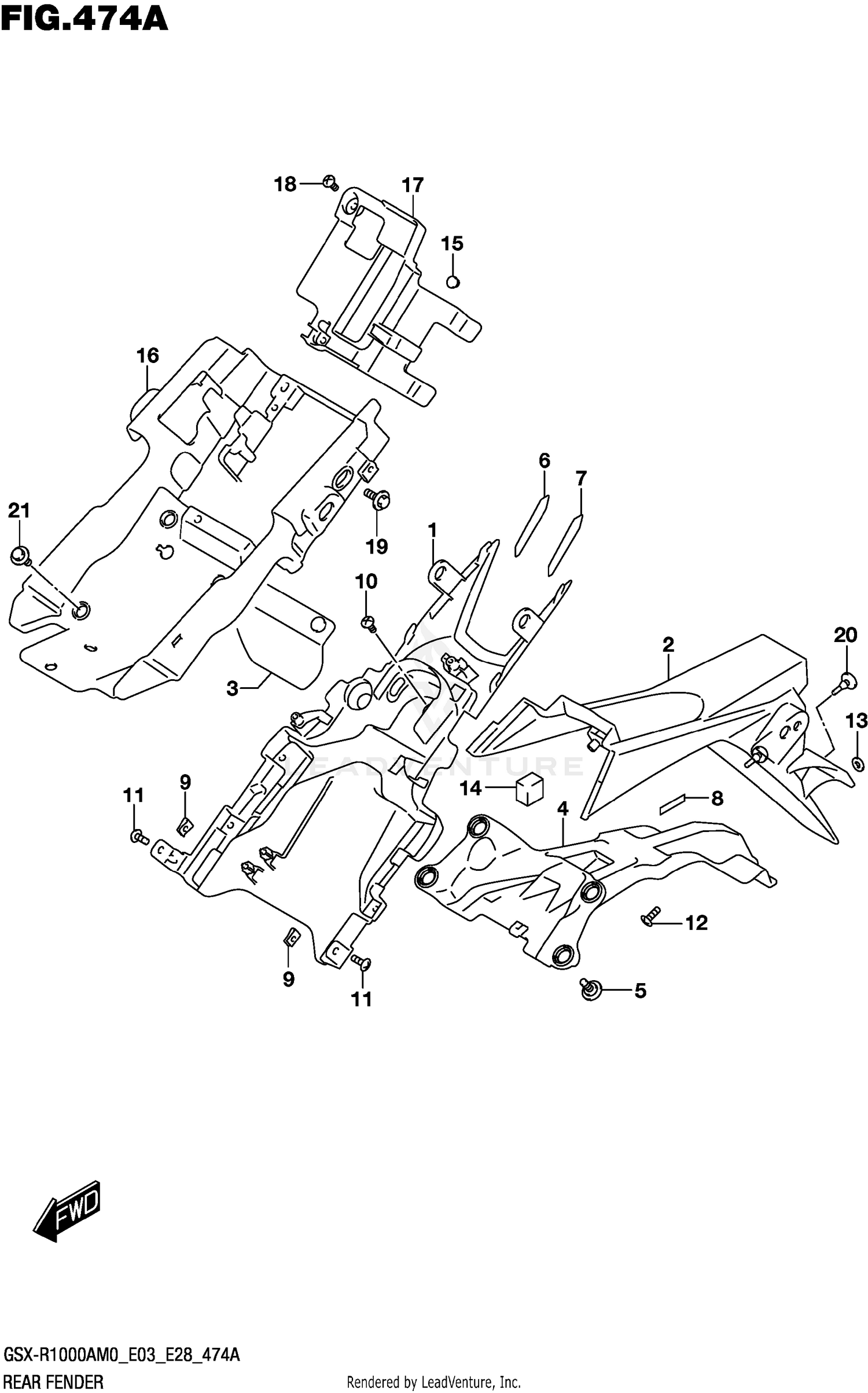

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER,REAR FRONT
63111-17K00
|
$33.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
FENDER,REAR REAR
63113-17K00
|
$40.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
MUDGUARD,REAR FENDER
63114-17K00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
FENDER,REAR REAR INNER
63116-17K00
|
$64.19 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT,REAR FENDER REAR
63117-17K00
Superseded by 63117-17K01
|
$2.08 | ||
|
Unavailable |
|||
|
#6
TAPE,REAR COMB,R
63121-17K00
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#7
TAPE,REAR COMB,L
63122-17K00
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#8
.TAPE (6X25X0.13)
94443-06G00
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT (M5)
09148-05038
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
03541-0512A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
03541-0516A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
03541-0516B
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
08322-0106A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION,RR LAMP (17X17X12)
33652-05G20
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION,SEAT MOUNT
45148-27J00
|
$19.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOLDER,BATTERY
47431-17K00
|
$31.93 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDER,ELECTRIC PARTS
47441-17K10
|
|||
|
Unavailable |
|||
|
#18
BOLT (6X18)
09111-06081
|
$5.37 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
03541-0516A
|
$1.70 | ||
|
Unavailable |
|||
|
#20
CUSHION
09321-06026
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
