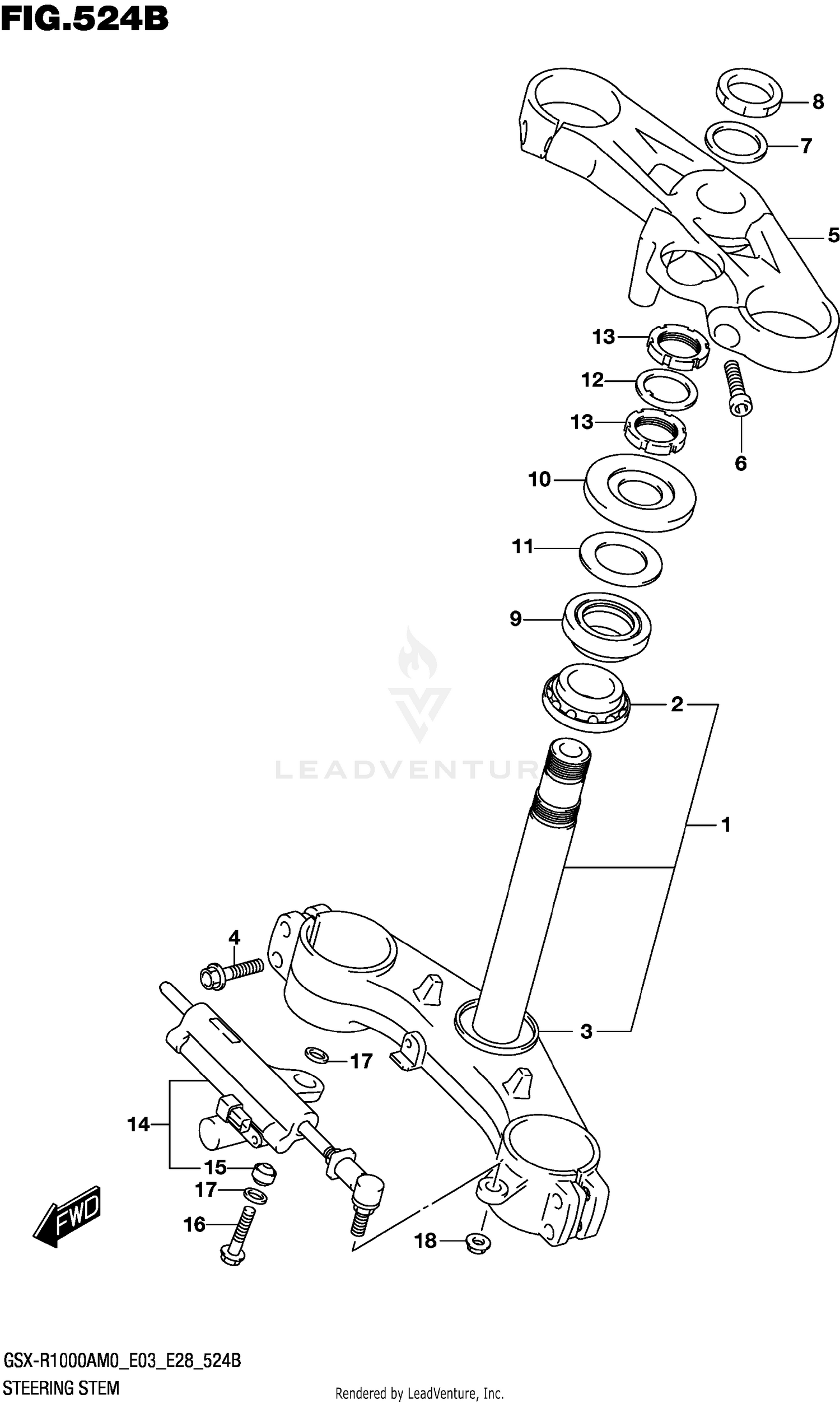

Steering Stem (gsx-r1000ra) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STEM,STEERING
51410-17K00
|
$814.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BEARING (30X55X17)
09267-30010
|
$60.34 | ||
|
Available to order. Add to View Price |
|||
|
#3
.SEAL,STEERING LOWER (30.1X56
51644-12C00
|
$12.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT,HOLDER AXLE (8X40)
51328-27E30
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, UPPER
51311-17K00
|
$492.26 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT,HOLDER (8X25)
51321-27E30
|
$6.61 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER,STEM HEAD
51354-01H00
|
$9.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT,STEM HEAD
51353-15J30
|
$23.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
.BEARING (30X55X17)
09267-30010
|
$60.34 | ||
|
Unavailable |
|||
|
#10
COVER,STEERING UPPER
51643-41G00
|
$11.57 | ||
|
Available to order. Add to View Price |
|||
|
#11
.SEAL,STEERING LOWER (30.1X56
51644-12C00
|
$12.20 | ||
|
Unavailable |
|||
|
#12
WASHER,STEERING STEM
51641-33E00
|
$8.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT,STEERING STEM
51631-33E00
|
$30.52 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER ASSY,STEERING
51750-21H30
Superseded by 51750-21H31
|
$1,333.88 | ||
|
Available to order. Add to View Price |
|||
|
#15
.BEARING (8X17.5X11)
09269-08003
|
$65.37 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (8X35)
09103-08391
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL,PILLOW BALL,DUST
64339-14101
|
$10.56 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
08319-3108A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
