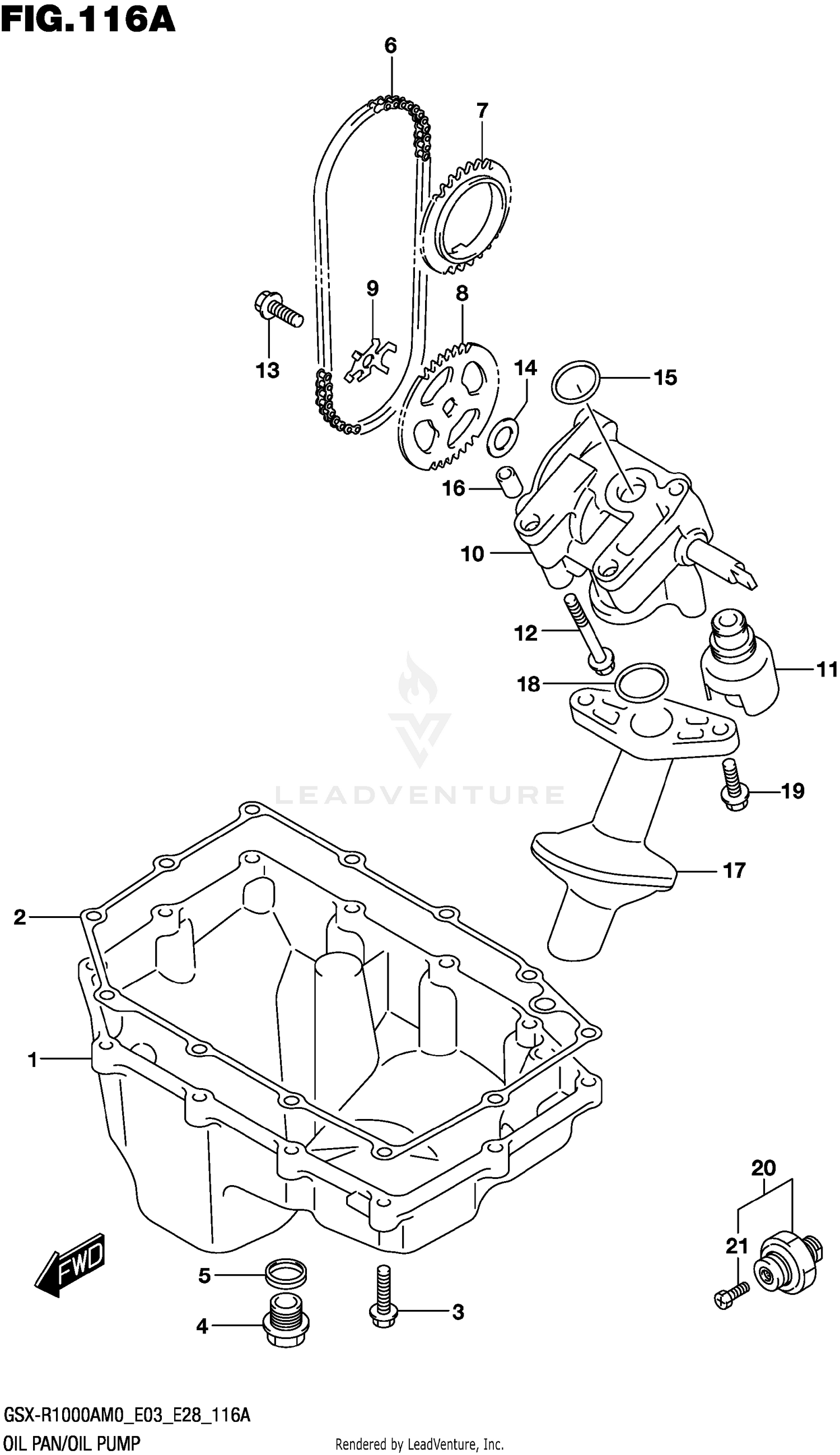

Oil Pan/oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PAN,OIL
11511-17K00
|
$212.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
.GASKET,OIL PAN
11489-17K00
|
$19.68 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
01547-0625A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG,OIL DRAIN (14X20)
11512-17K00
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.83 | ||
|
Unavailable |
|||
|
#6
CHAIN,OIL PUMP DRIVE
16310-47H00
|
$41.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPROCKET,OIL PUMP DRIVE (NT:2
16321-01H00
|
$86.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPROCKET,OIL PUMP DRIVEN (NT:
16331-17K00
|
$24.41 | ||
|
Available to order. Add to View Price |
|||
|
#9
RETAINER,OIL PUMP SPRKT BOLT
16332-17K00
|
$8.41 | ||
|
Available to order. Add to View Price |
|||
|
#10
PUMP ASSY,ENG OIL
16400-17K00
|
$230.83 | ||
|
Available to order. Add to View Price |
|||
|
#11
VALVE ASSY,OIL RELIEF
16440-17K00
|
$84.14 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (6X50)
09103-06206
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
09103-06523
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM (12X20X0.5)
09181-12158
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING (D:2.4,ID:15.8)
09280-15007
|
$2.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PIN
04211-09149
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
STRAINER,ENG OIL
16520-17K00
|
$33.56 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (D:2.62,ID:20.3)
09280-19008
|
$6.90 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT (6X20)
01550-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
SWITCH ASSY,OIL PRESSURE
37820-33D10
Superseded by 37820-33D11
|
$27.59 | ||
|
Unavailable |
|||
|
#21
.BOLT,OIL PRESSURE SWITCH
37822-33D00
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
