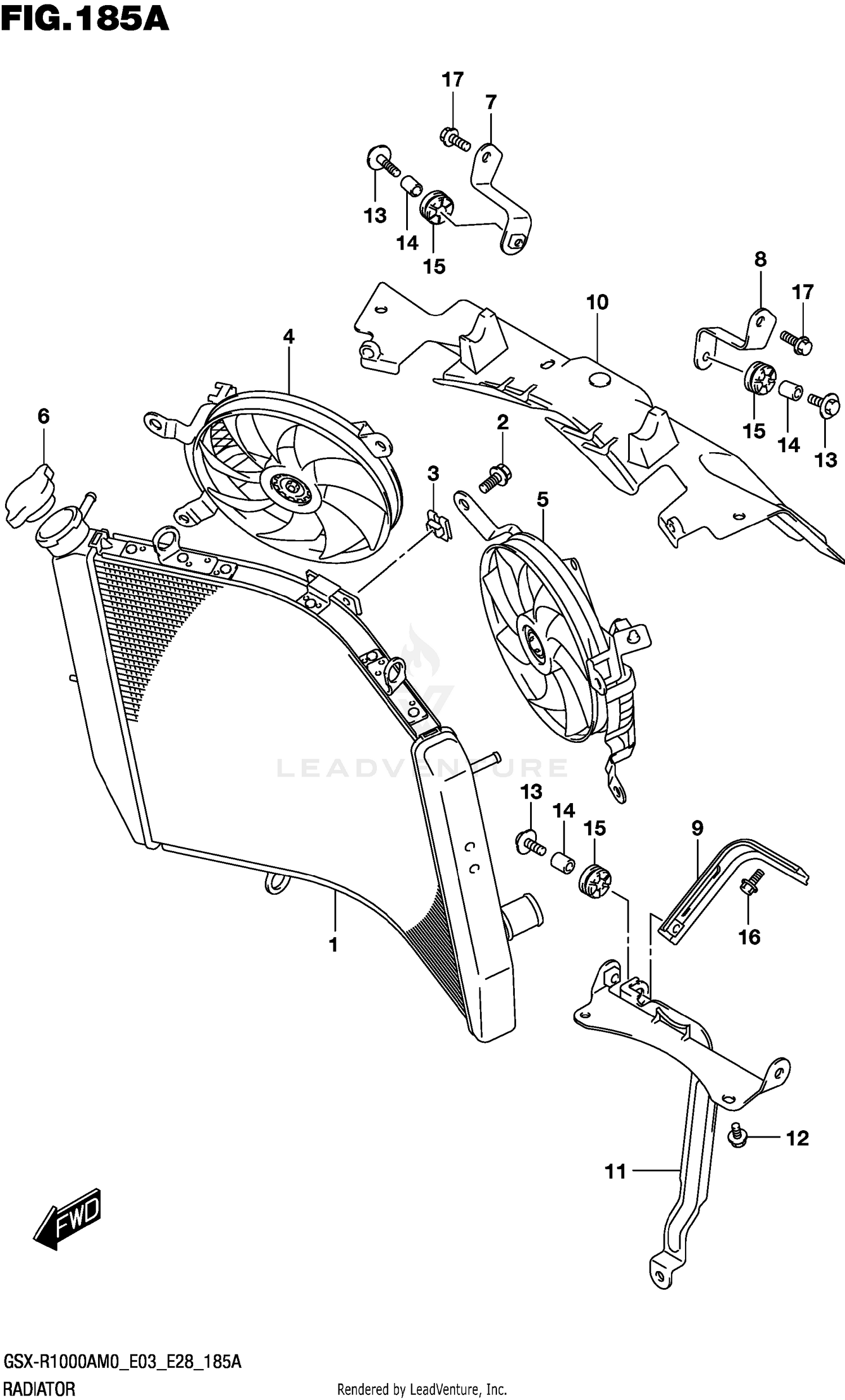

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSY,WATER
17710-17K00
Superseded by 17710-17K01
|
$912.27 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT,FAN ASSY
17711-08J00
|
$6.28 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT,FAN ASSY
17712-40F00
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
FAN ASSY,RADIATOR,R
17810-17K00
|
$320.28 | ||
|
Available to order. Add to View Price |
|||
|
#5
FAN ASSY,RADIATOR,L
17820-17K00
|
$320.28 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP,RADIATOR (1.1)
17730-08J00
|
$54.86 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET,RADIATOR UPPER,R
17741-17K00
|
$14.34 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET,RADIATOR UPPER,L
17742-17K00
|
$14.34 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET,RADIATOR LOWER,R
17750-17K00
|
$20.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIELD,RADIATOR HEAT
17771-17K00
|
$49.77 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET,RDTR SUPPORT
17790-17K00
|
$36.19 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (6X10)
09103-06307
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (6X25)
09118-06097
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER (6.5X10X12)
09180-06290
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION
09320-10051
|
$3.92 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01550-0612A
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT
01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
