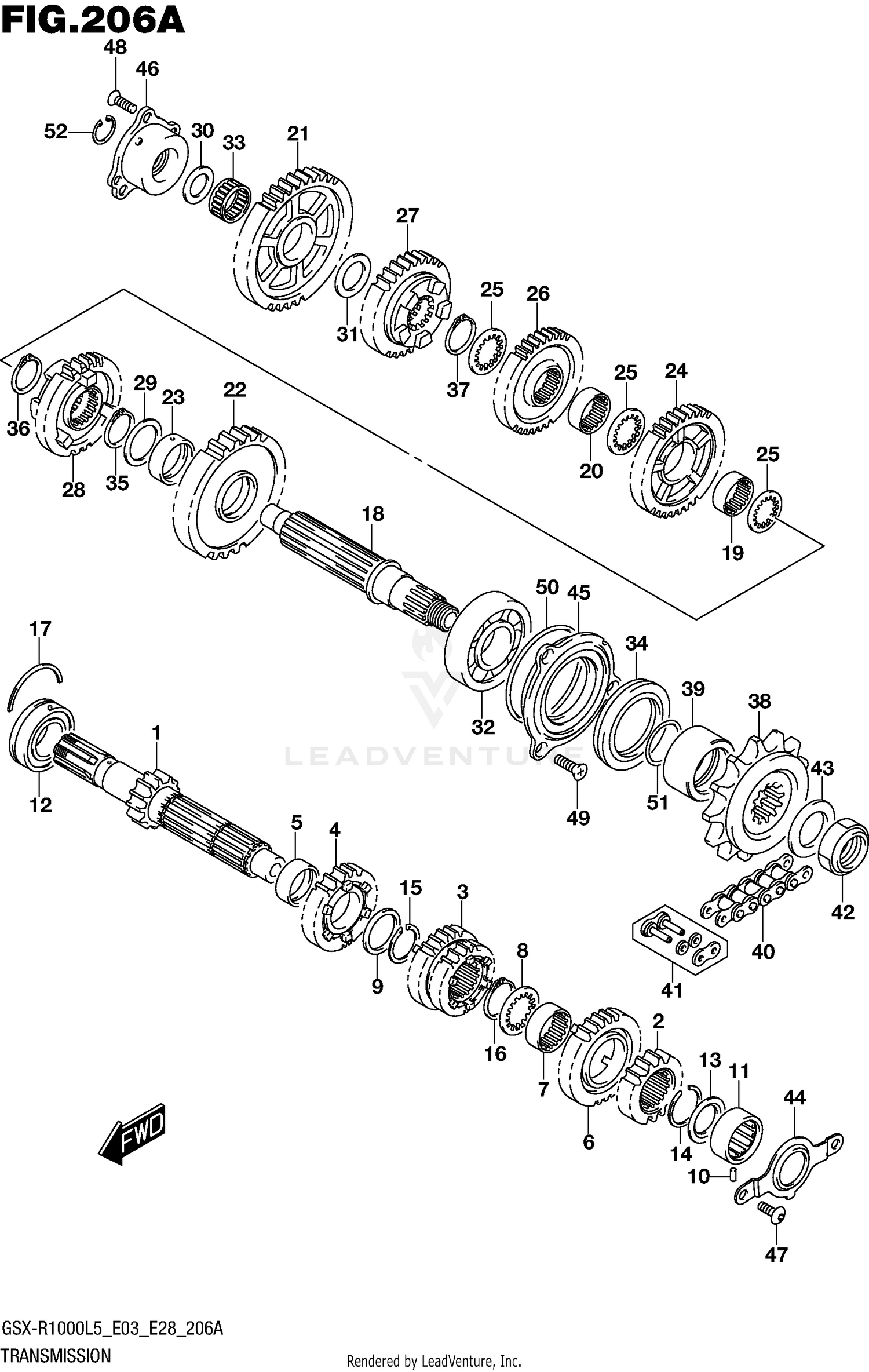

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, CNTR (NT:16)
24120-47H10
Superseded by 24120-47H11
|
$313.10 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, 2ND DRIVE (NT:19)
24221-40F30
|
$132.63 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 3RD & 4TH DRIVE (NT:21/24)
24231-47H00
|
$235.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, 5TH DRIVE (NT:25)
24251-47H00
|
$187.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH, 5TH DRIVE GEAR
24252-24F10
|
$40.03 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 6TH DRIVE (NT:26)
24261-47H00
|
$187.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH,6TH DRIVE GEAR
24262-24F20
|
$41.56 | ||
|
Available to order. Add to View Price |
|||
|
#8
LOCK WASHER
09167-27001
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER (27X36X1)
09160-27008
|
$4.01 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
PIN
04221-07129
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING (20X34X16)
09263-20103
|
$81.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING (25X52X20.6)
09267-25013
|
$115.56 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL (20X31.2X2.7)
09285-20006
|
$8.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CIRCLIP
09380-27004
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
09380-27006
|
$3.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CIRCLIP
09380-27006
|
$3.38 | ||
|
Unavailable |
|||
|
#17
C RING
09390-58001
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHAFT, DRIVE
24131-47H00
Superseded by 24131-47H01
|
$285.50 | ||
|
Available to order. Add to View Price |
|||
|
#19
BUSH, 3RD DRIVEN GEAR
24332-24F20
|
$41.56 | ||
|
Available to order. Add to View Price |
|||
|
#20
BUSH, 4TH DRIVEN GEAR
24332-24F20
|
$41.56 | ||
|
Unavailable |
|||
|
#21
GEAR,1ST DRIVEN (NT:41)
24311-47H00
|
$192.09 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR, 2ND DRIVEN (NT:39)
24321-47H00
|
$190.31 | ||
|
Available to order. Add to View Price |
|||
|
#23
BUSH, 2ND DRIVEN GEAR
24322-24F20
|
$51.43 | ||
|
Available to order. Add to View Price |
|||
|
#24
GEAR, 3RD DRIVEN (NT:36)
24331-47H10
|
$174.92 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, 3RD & 4TH DRIVE
24333-47H00
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#26
GEAR,4TH DRIVEN (NT:36)
24341-47H10
|
$209.27 | ||
|
Available to order. Add to View Price |
|||
|
#27
GEAR,5TH DRIVEN (NT:34)
24351-47H00
|
$192.09 | ||
|
Available to order. Add to View Price |
|||
|
#28
GEAR,6TH DRIVEN (NT:33)
24361-47H00
Superseded by 24361-17K00
|
$145.18 | ||
|
Available to order. Add to View Price |
|||
|
#29
SHIM (30X40X1)
09181-30167
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#30
SHIM (22X34X1)
09181-22223
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#31
SHIM (24X34X1)
09181-24005
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING (30X62X23.8)
09267-30014
|
$163.89 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING (24X28X13)
09263-24030
|
$27.57 | ||
|
Available to order. Add to View Price |
|||
|
#34
OIL SEAL (38X56X7)
09283-38027
|
$42.32 | ||
|
Available to order. Add to View Price |
|||
|
#35
CIRCLIP
09380-30009
|
$4.38 | ||
|
Available to order. Add to View Price |
|||
|
#36
CIRCLIP
09380-30009
|
$4.38 | ||
|
Unavailable |
|||
|
#37
CIRCLIP
09380-30009
|
$4.38 | ||
|
Unavailable |
|||
|
#38
SPROCKET, ENGINE
27510-15H10
|
$173.43 | ||
|
Available to order. Add to View Price |
|||
|
#39
SPACER, ENGINE SPROCKET
27531-47H00
|
$31.90 | ||
|
Available to order. Add to View Price |
|||
|
#40
CHAIN ASSY, DRIVE (DID50VAZ)
27600-40F20-114
|
$481.97 | ||
|
Available to order. Add to View Price |
|||
|
#41
JOINT SET,DRIVE
27620-40F20
Superseded by 27620-40F21
|
$19.74 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT
09159-22008
|
$37.86 | ||
|
Available to order. Add to View Price |
|||
|
#43
SHIM (27X42X1.5)
09181-27016
|
$7.30 | ||
|
Available to order. Add to View Price |
|||
|
#44
RETAINER,CL PUSH ROD OIL SEAL
24741-01H00
|
$9.72 | ||
|
Available to order. Add to View Price |
|||
|
#45
RETAINER, DRIVE SHAFT BRG, L
24751-47H00
|
$119.58 | ||
|
Available to order. Add to View Price |
|||
|
#46
HOUSING, DRIVE SHAFT SET
24771-01820
|
$153.61 | ||
|
Available to order. Add to View Price |
|||
|
#47
SCREW (6X13)
09139-06153
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#48
SCREW (6X20)
09139-06159
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#49
SCREW (6X20)
09139-06159
|
$4.47 | ||
|
Unavailable |
|||
|
#50
O RING (D:1.9,ID:61.5)
09280-62004
|
$22.29 | ||
|
Available to order. Add to View Price |
|||
|
#51
O RING (D:2.4,ID:26.2)
09280-26005
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#52
CIRCLIP
08331-41349
|
$3.07 | ||
|
Available to order. Add to View Price |
|||
