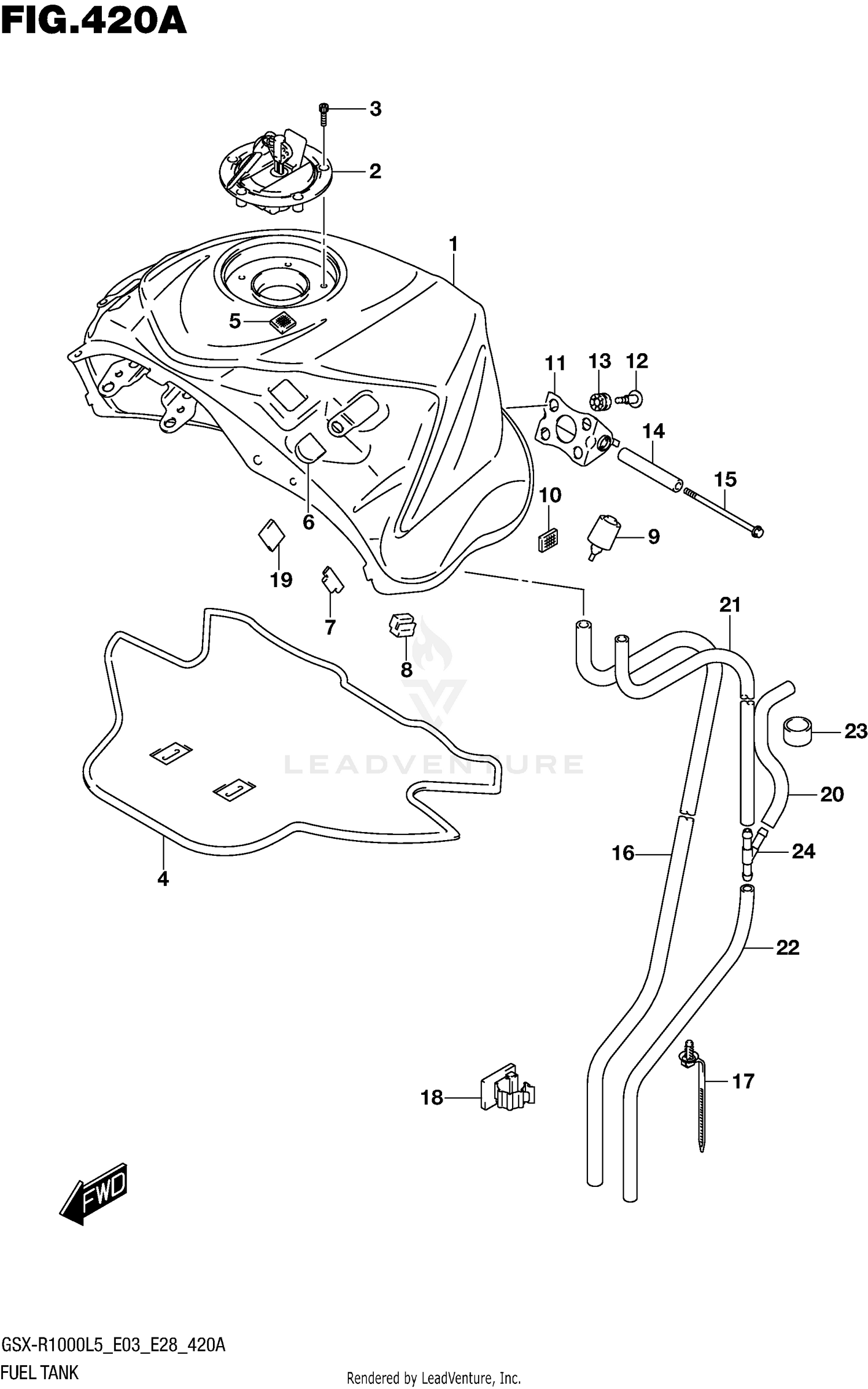

Fuel Tank (gsx-r1000l5 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY, FUEL (BLUE)
44100-47H30-YSF
|
$1,376.74 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY, FUEL (RED)
44100-47H01-YVZ
|
$1,376.74 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY, FUEL (BLACK)
44100-47H01-YVB
|
$1,654.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP SET,FUEL TA
44200-16850
Superseded by 44200-16852
|
$151.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (5X20)
09106-05017
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIELD, FUEL TANK HEAT
44191-47H00
|
$69.90 | ||
|
Available to order. Add to View Price |
|||
|
#5
FASTENER, COVER FRONT
44572-44G00
|
$13.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION
09329-18001
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CUSHION,FUEL TANK COVER
44276-21H00
Superseded by 44276-21H01
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION, FUEL TANK SIDE
44541-41G00
|
$7.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION,FUEL TANK REAR
44542-41G00
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
.FASTENER,FUEL TANK (33X25X3.
44572-13G00
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, REAR
44530-41G00
Superseded by 44530-41G01
|
$45.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW (6X22)
09139-06191
|
$5.12 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION
09320-08071
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER,FUEL TANK REAR
44561-18G00
|
$21.89 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (6X110)
09106-06119
|
$7.23 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE, DRAIN
44423-47H00
|
$18.13 | ||
|
Unavailable |
|||
|
#17
CLAMP (L:154)
09407-17403
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP
09403-14311
|
$6.82 | ||
|
Available to order. Add to View Price |
|||
|
#19
PAD (20X25X2)
61544-94500
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE,FUEL TANK BRTHR NO.3
44424-15H10
Superseded by 44424-15H11
|
$15.50 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE, FUEL TANK BRTHR NO.1
44424-47H00
|
$10.53 | ||
|
Unavailable |
|||
|
#22
HOSE,FUEL TANK
44424-47H10
Superseded by 44424-47H11
|
$9.40 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE (12X16X600)
09352-12163-600
|
$8.81 | ||
|
Unavailable |
|||
|
#24
3 WAY
09367-06007
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
