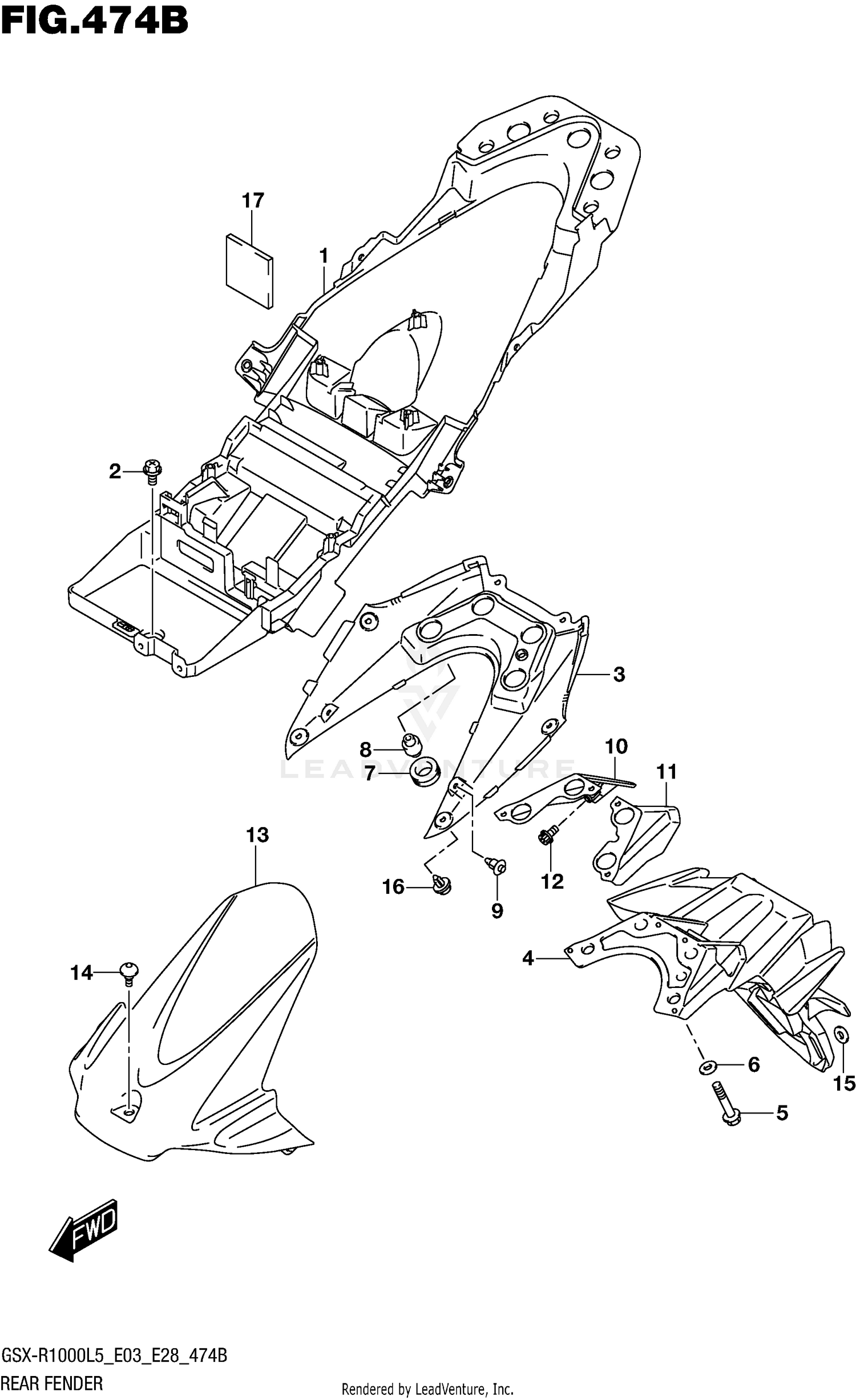

Rear Fender (gsx-r1000l5 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, REAR FRONT
63111-47H10
|
$173.22 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT (6X12)
09111-06107
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
COVER, FENDER FRONT (BLUE)
63112-47H10-YSF
|
$125.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, FENDER FRONT (RED)
63112-47H10-YVZ
|
$146.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, FENDER FRONT (BLACK)
63112-47H10-YVB
|
$128.32 | ||
|
Available to order. Add to View Price |
|||
|
#4
FENDER, REAR
63113-47H00
|
$166.32 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (6X30)
09103-06204
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
.WASHER (6.5X18X1.0)
09160-06028
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION (20X32X9)
09320-20010
Superseded by 09320-20011
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER
63147-47H00
|
$27.32 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP (BLACK)
09409-06314-5PK
|
$3.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
COVER, FENDER REAR RH (SILVER)
63170-47H00-YUS
|
$95.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, FENDER REAR LH (SILVER)
63180-47H00-YUS
|
$81.56 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
07120-0510B
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
FENDER, REAR LOWER
63114-47H00
|
$61.18 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW (6X16)
09139-06169
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
08322-0106A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP
09409-06328
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
CUSHION, TOOL BAG
33652-20C00
|
$3.86 | ||
|
Available to order. Add to View Price |
|||
