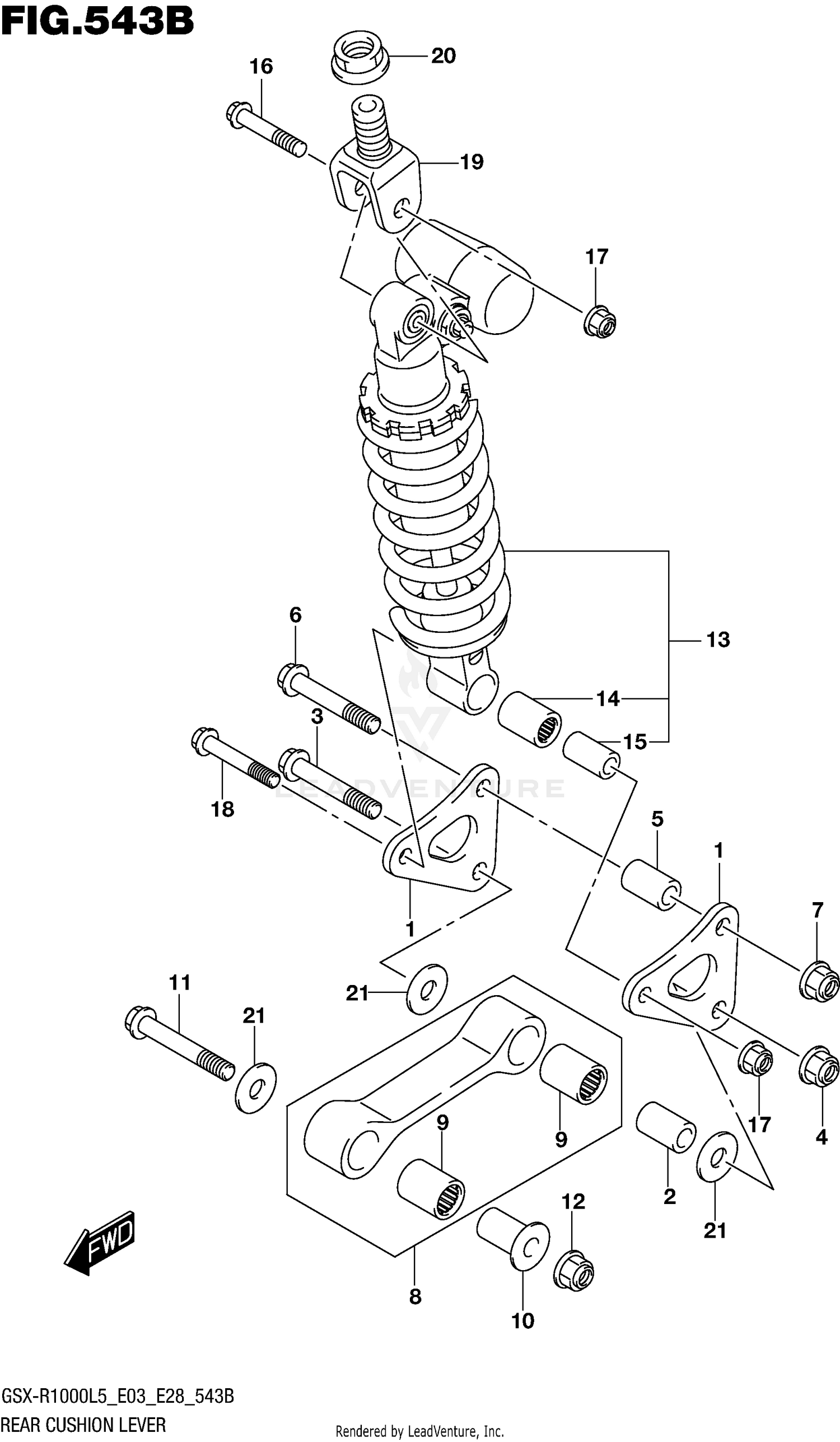

Rear Cushion Lever (gsx-r1000l5 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER, REAR CUSHION
62611-47H00
|
$36.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER,RR CUSHION LEVER,FR (1
62317-27C10
|
$22.26 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, LOWER
62658-47H00
|
$12.14 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
09159-12056
|
$9.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER,RR CUSH LVR,FR
62317-44B00
|
$23.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, UPPER
62658-47H00
|
$12.14 | ||
|
Unavailable |
|||
|
#7
NUT
09159-12056
|
$9.25 | ||
|
Unavailable |
|||
|
#8
ROD SET,RR CUSH
62600-47810
Superseded by 62600-47811
|
$174.97 | ||
|
Available to order. Add to View Price |
|||
|
#9
.BEARING
09263-20074
Superseded by 09263-20116
|
$39.26 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER, FRONT
62647-47H00
|
$39.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT,RR CUSHION ROD
62621-47H00
|
$16.12 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
09159-12056
|
$9.25 | ||
|
Unavailable |
|||
|
#13
ABSORBER ASSY, REAR SHOCK (BLACK)
62100-47Y10-019
|
$1,600.85 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING (17X24X32)
09263-17046
|
$45.06 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER,RR SHOCK ABS LOWER
62317-47H00
|
$23.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (10X55)
09103-10143
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
09159-10115
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT,RR SHOCK ABS LOWER (10X5
62313-47H00
|
$13.50 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET,RR SHOCK ABS UPPER
62993-47H00
|
$152.77 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT RR SHOCK ABS BRACKET
62994-47H00
|
$55.79 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER (12X34X1)
09160-12037
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
