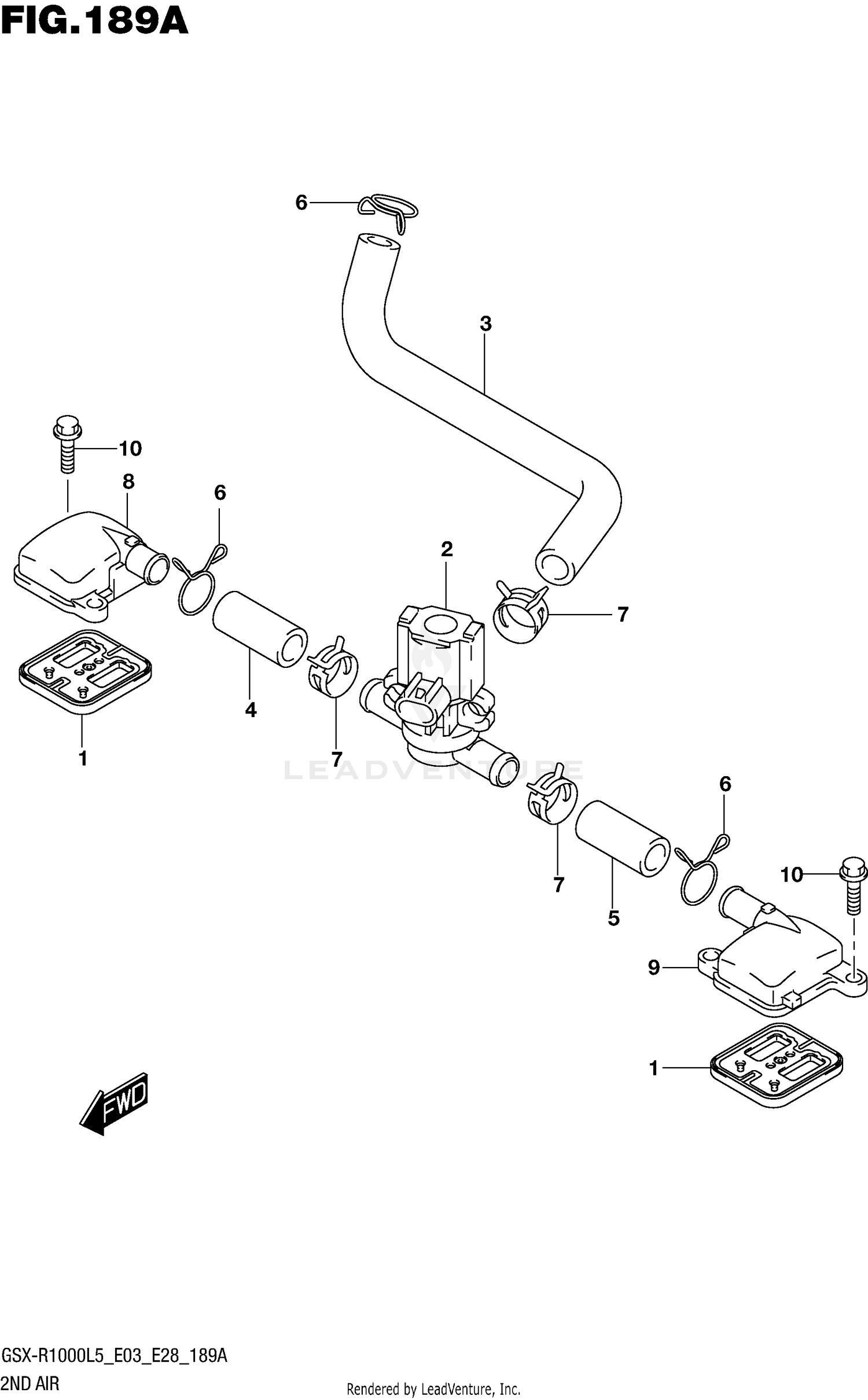

2nd Air Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
VALVE ASSY,2ND AIR REED
18450-35F11
|
$112.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE ASSY, AIR CUT
18510-29G40
|
$144.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE, 2ND AIR CLEANER
18711-47H00
|
$26.50 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE, 2ND AIR VALVE, RH
18461-47H00
|
$9.12 | ||
|
Unavailable |
|||
|
#5
HOSE, 2ND AIR VALVE, LH
18471-47H00
|
$9.12 | ||
|
Unavailable |
|||
|
#6
CLIP
09401-17201
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP
09401-17401
|
$3.37 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, 2ND AIR REED VALVE RH
18531-47H00
|
$32.82 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, 2ND AIR REED VALVE LH
18532-47H00
|
$32.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (6X20)
09103-06201
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
