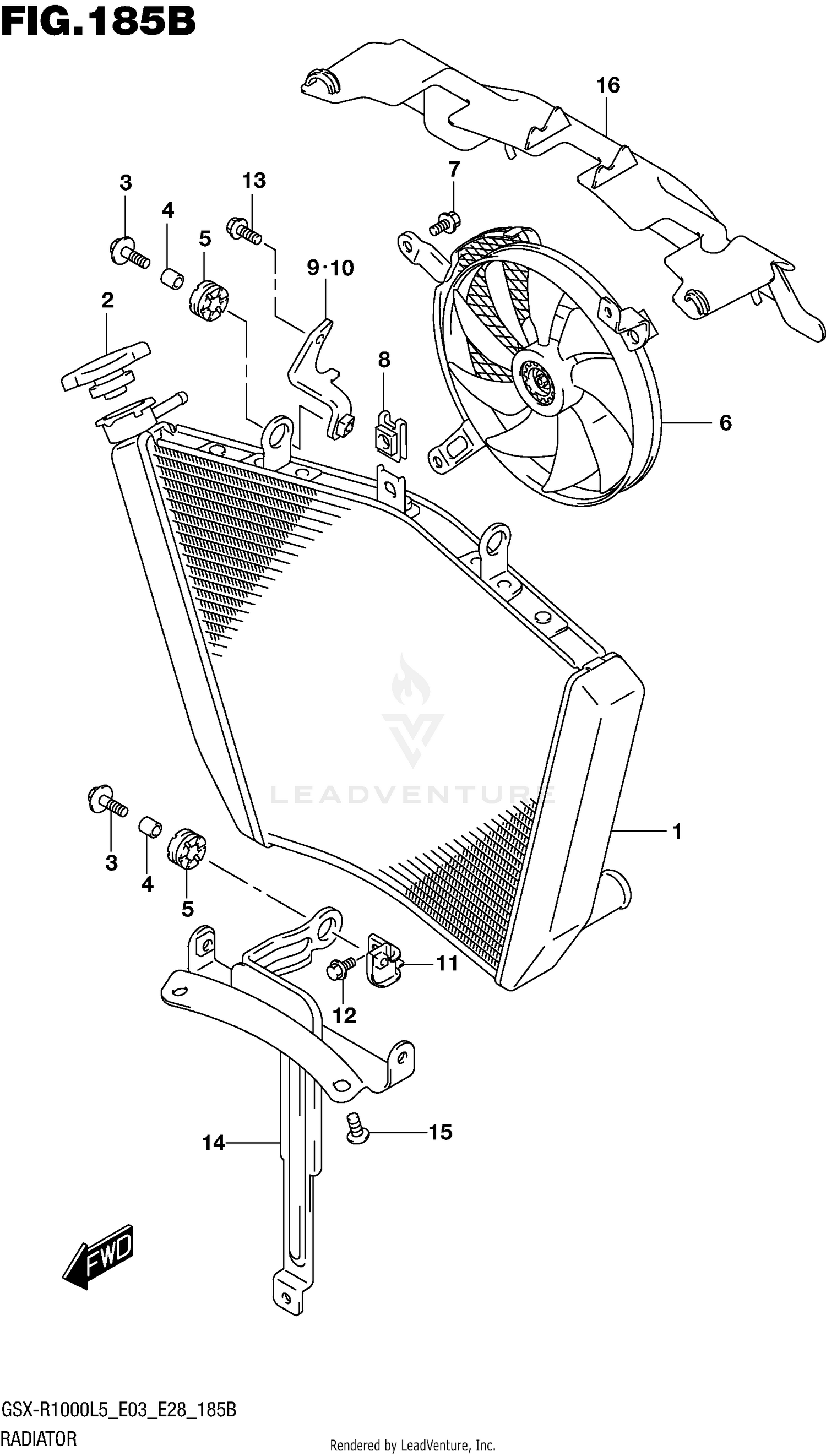

Radiator (gsx-r1000l5 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSY, WATER
17710-47H10
|
$1,263.88 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP,RADIATOR (1.1)
17730-08J00
|
$54.86 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (6X25)
09118-06097
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER (6.5X10X12)
09180-06290
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION
09320-10051
|
$3.92 | ||
|
Available to order. Add to View Price |
|||
|
#6
FAN ASSY, RADIATOR
17800-47H00
|
$777.16 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT,FAN ASSY
17711-08J00
|
$6.28 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT,FAN ASSY
17712-40F00
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, RADIATOR RH
17741-47H00
|
$19.32 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, RADIATOR LH
17742-47H00
|
$19.32 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, RADIATOR & OIL COOLER
17750-47H10
|
$12.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01550-0612A
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT
01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET, RADIATOR SUPPORT
17790-47H00
|
$36.37 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (6X10)
09103-06307
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHIELD, RADIATOR HEAT
17771-47H00
|
$38.73 | ||
|
Available to order. Add to View Price |
|||
