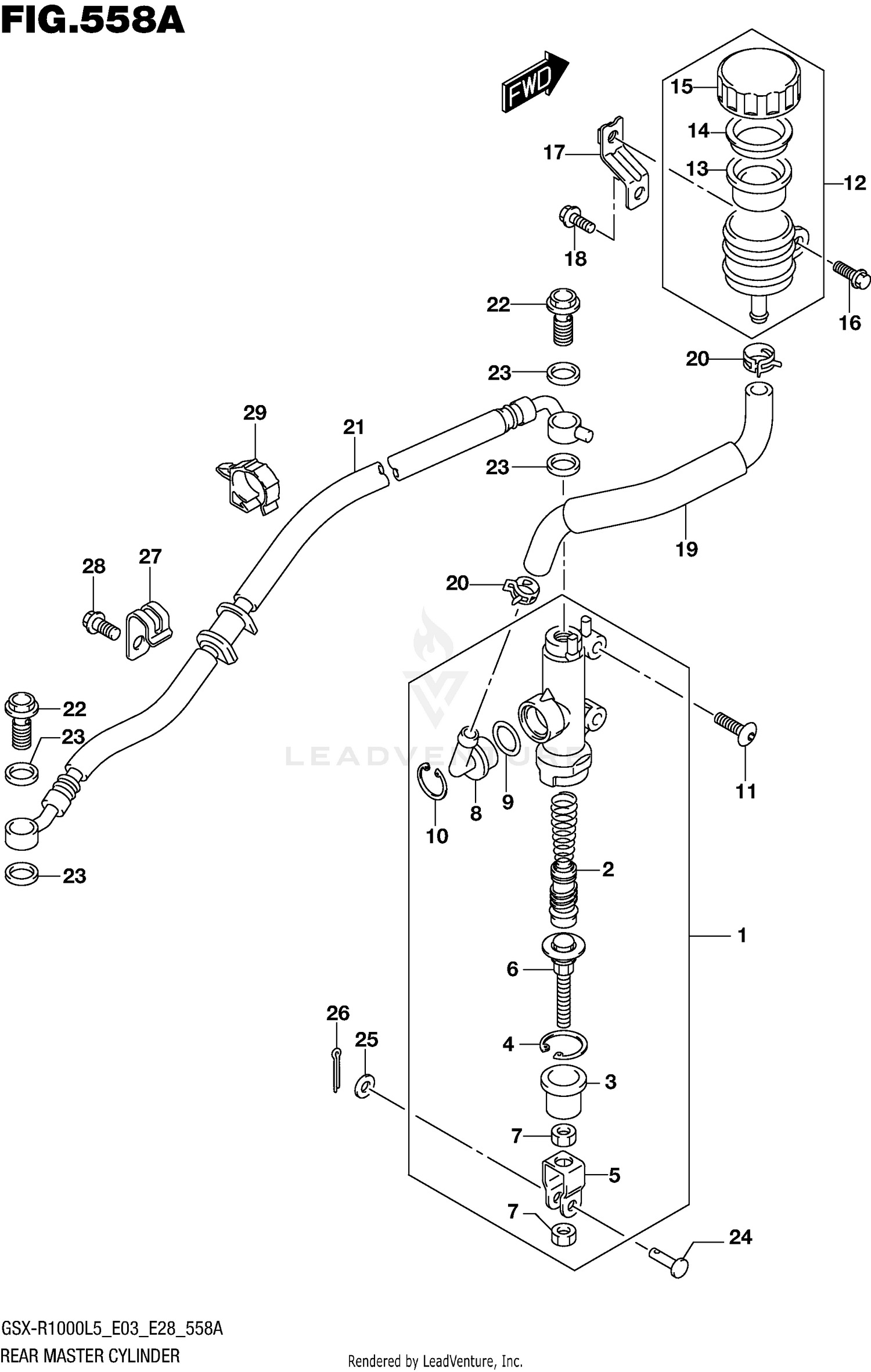

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY, REAR MASTER
69600-47H30
Superseded by 69600-47H31
|
$247.57 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON / CAP SET
69600-34810
|
$63.77 | ||
|
Available to order. Add to View Price |
|||
|
#3
..BOOT
69691-00A00
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
..CIRCLIP
69665-47H00
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
YOKE
69692-47H00
|
$15.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD, PUSH
69670-40A00
|
$28.92 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
69693-47H00
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#8
CONNECTOR
69672-00B20
|
$9.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
O RING
69686-34200
|
$3.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CIRCLIP
69674-00B20
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW (6X20)
09139-06125
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
TANK ASSY,REAR RESERVOIR
69740-47H00
|
$90.32 | ||
|
Available to order. Add to View Price |
|||
|
#13
DIAPHRAGM
69667-00B20
|
$20.82 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE
69668-00B20
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP
69669-47H00
|
$9.72 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01547-0616A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, RR RESERVOIR TANK
69750-47H00
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
01547-0612A
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
HOSE, RR RESERVOIR TANK
69730-47H10
|
$30.30 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP (ID:11.1)
09401-12404
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE,RR BRAKE
69480-47H00
Superseded by 69480-47H01
|
$110.16 | ||
|
Unavailable |
|||
|
#22
UNION
09360-10065
|
$9.71 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER (10X15X1.5)
09161-10009
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN (6X18.2)
09200-06068
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER
08322-0106A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, COTTER
04111-2015A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP, RR BRAKE HOSE
69270-47H00
|
$6.41 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
01547-0612A
|
$2.53 | ||
|
Unavailable |
|||
|
#29
CLAMP
09403-17306
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
