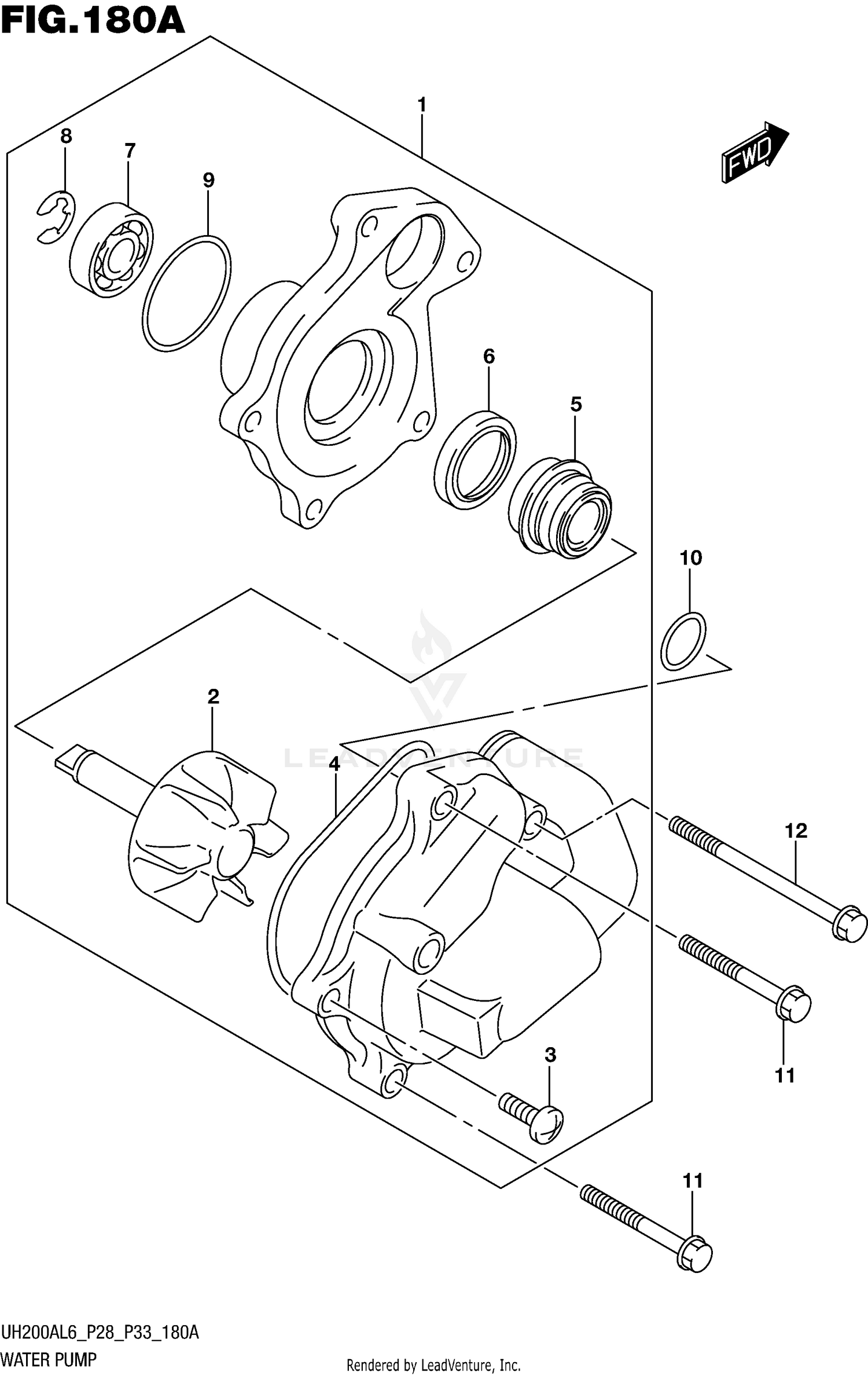

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1-1
PUMP ASSY,WATER
17400-21F30
Superseded by 17400-21F31
|
$194.20 | ||
|
Unavailable |
|||
|
#1-2
PUMP ASSY, WATER
17400-21F40
|
|||
|
Unavailable |
|||
|
#1-2
PUMP ASSY, WATER
17400-21F40
|
|||
|
Unavailable |
|||
|
#2-1
.IMPELLER
17491-21F00
|
$53.27 | ||
|
Available to order. Add to View Price |
|||
|
#2-2
.IMPELLER
17491-21F40
|
|||
|
Unavailable |
|||
|
#2-2
.IMPELLER
17491-21F40
|
|||
|
Unavailable |
|||
|
#3
.SCREW
02112-0616A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
.O RING
17418-14F00
Superseded by 17418-14F01
|
$6.06 | ||
|
Available to order. Add to View Price |
|||
|
#5-1
.SEAL,MECHANICAL
17470-02F00
Superseded by 17470-02F11
|
$37.73 | ||
|
Available to order. Add to View Price |
|||
|
#5-2
.SEAL,MECHANICAL
17470-02F10
Superseded by 17470-02F11
|
$37.73 | ||
|
Unavailable |
|||
|
#5-2
.SEAL,MECHANICAL
17470-02F10
Superseded by 17470-02F11
|
$37.73 | ||
|
Unavailable |
|||
|
#6
.OIL SEAL
17461-01H00
|
$22.72 | ||
|
Available to order. Add to View Price |
|||
|
#7
.BEARING (10X26X8)
09262-10014
|
$20.17 | ||
|
Available to order. Add to View Price |
|||
|
#8
.E RING
08332-1108A
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#9
.O RING
17435-33400
|
$19.74 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING (D:2.4,ID:21.8)
09280-22L01
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
01547-0635A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01547-0655A
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
