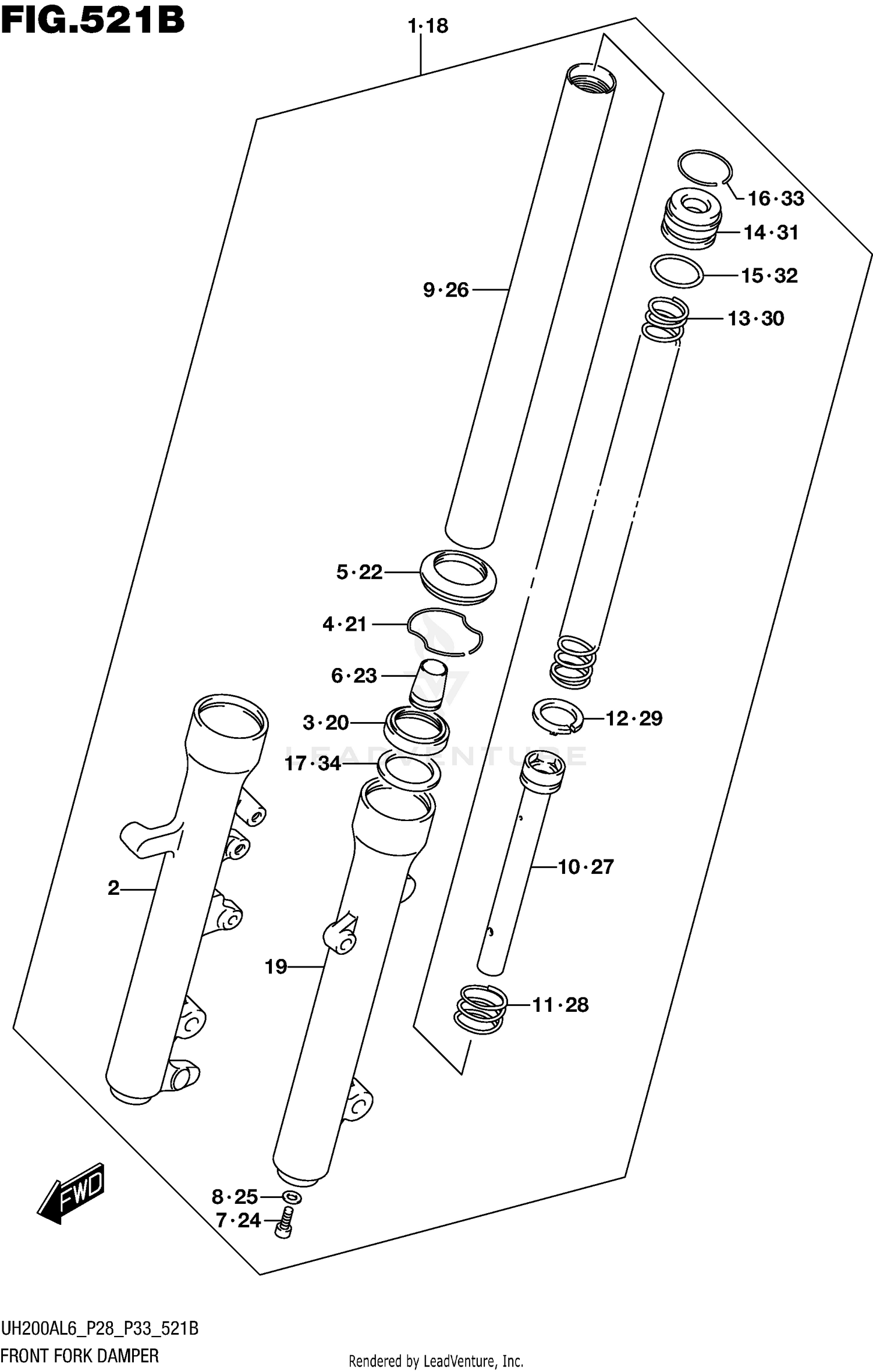

Front Fork Damper (uh200al6 P33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER ASSY, FRONT FORK RH
51103-12J50
|
$459.13 | ||
|
Unavailable |
|||
|
#2
.TUBE, OUTER RH
51131-12J50
|
$243.09 | ||
|
Unavailable |
|||
|
#3
.OIL SEAL
51153-26B00
|
$22.07 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING, OIL SEAL STOPPER
51156-33130
Superseded by 51156-02B00
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#5
.SEAL, DUST
51571-26B00
|
$37.43 | ||
|
Available to order. Add to View Price |
|||
|
#6
.PIECE, OIL LOCK
51195-12J40
|
|||
|
Unavailable |
|||
|
#7
.BOLT (8X27)
51147-48130
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
.GASKET (8.2X13X1.5)
51148-31030
Superseded by 51148-36011
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
.TUBE, INNER
51110-12J40
|
|||
|
Unavailable |
|||
|
#10
.PIPE SEAT
51194-12J40
|
|||
|
Unavailable |
|||
|
#11
.SPRING, REBOUND
51177-15500
|
$2.72 | ||
|
Unavailable |
|||
|
#12
.RING, PISTON
51196-20H00
|
|||
|
Unavailable |
|||
|
#13
.SPRING, FRONT
51171-12J40
|
|||
|
Unavailable |
|||
|
#14
.CAP
51175-12J40
|
|||
|
Unavailable |
|||
|
#15
.O RING
51117-20H00
|
|||
|
Unavailable |
|||
|
#16
.RING, STOPPER
51156-20H00
|
$5.51 | ||
|
Available to order. Add to View Price |
|||
|
#17
.SEAL, SPACER
51168-02B00
|
$4.16 | ||
|
Unavailable |
|||
|
#18
DAMPER ASSY,FRONT FORK LH
51104-12J40
|
$459.13 | ||
|
Unavailable |
|||
|
#19
.TUBE, OUTER LH
51141-12J40
|
|||
|
Unavailable |
|||
|
#20
.OIL SEAL
51153-26B00
|
$22.07 | ||
|
Unavailable |
|||
|
#21
RING, OIL SEAL STOPPER
51156-33130
Superseded by 51156-02B00
|
$7.12 | ||
|
Unavailable |
|||
|
#22
.SEAL, DUST
51571-26B00
|
$37.43 | ||
|
Unavailable |
|||
|
#23
.PIECE, OIL LOCK
51195-12J40
|
|||
|
Unavailable |
|||
|
#24
.BOLT (8X27)
51147-48130
|
$5.60 | ||
|
Unavailable |
|||
|
#25
.GASKET (8.2X13X1.5)
51148-31030
Superseded by 51148-36011
|
$4.60 | ||
|
Unavailable |
|||
|
#26
.TUBE, INNER
51110-12J40
|
|||
|
Unavailable |
|||
|
#27
.PIPE SEAT
51194-12J40
|
|||
|
Unavailable |
|||
|
#28
.SPRING, REBOUND
51177-15500
|
$2.72 | ||
|
Unavailable |
|||
|
#29
.RING, PISTON
51196-20H00
|
|||
|
Unavailable |
|||
|
#30
.SPRING, FRONT
51171-12J40
|
|||
|
Unavailable |
|||
|
#31
.CAP
51175-12J40
|
|||
|
Unavailable |
|||
|
#32
.O RING
51117-20H00
|
|||
|
Unavailable |
|||
|
#33
.RING, SNAP
51156-20H00
|
$5.51 | ||
|
Unavailable |
|||
|
#34
.SEAL, SPACER
51168-02B00
|
$4.16 | ||
|
Unavailable |
|||
