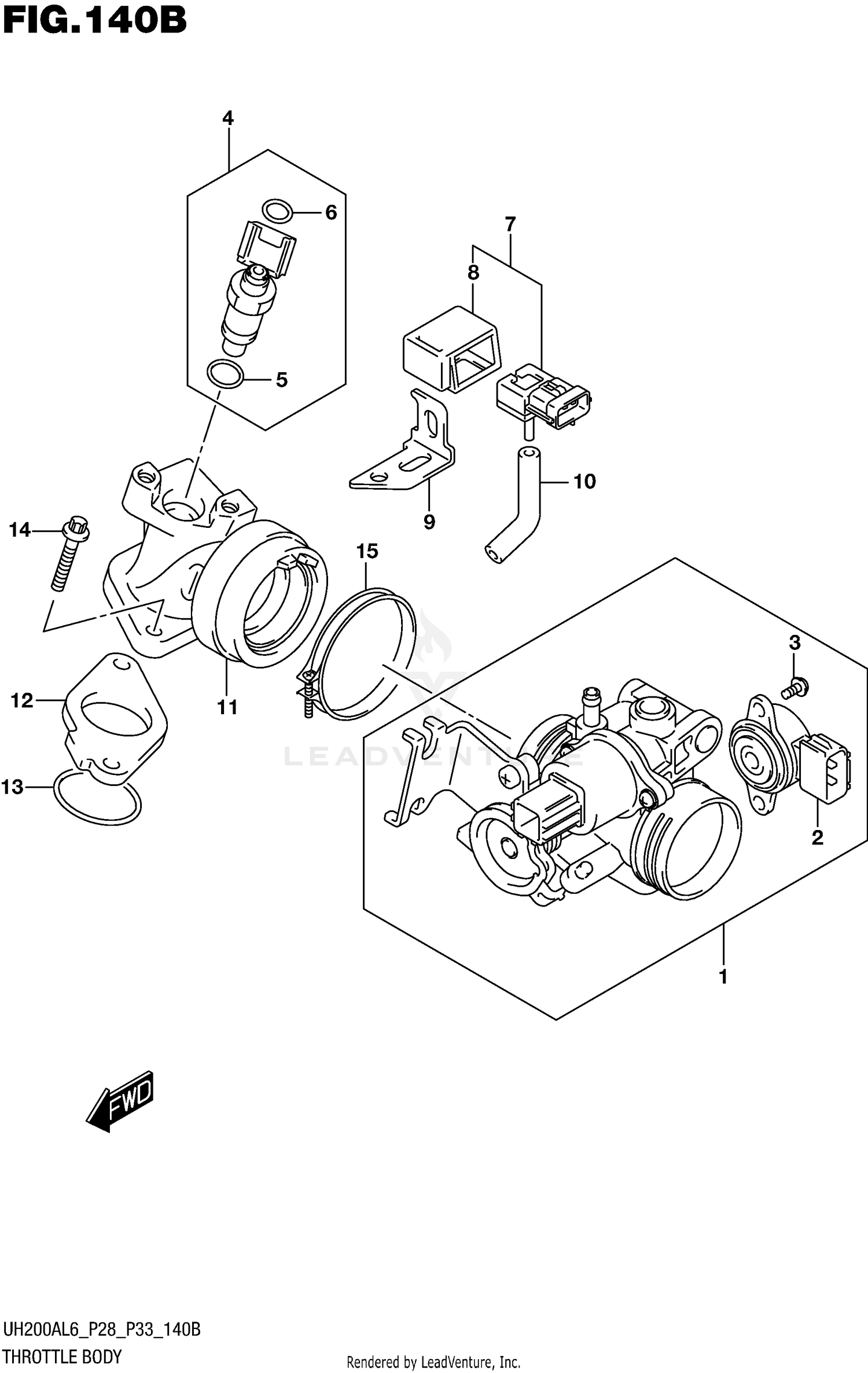

Throttle Body (uh200al6 P33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSY,THROT
13400-03HB0
Superseded by 13400-03HB1
|
$359.02 | ||
|
Unavailable |
|||
|
#2
.SENSOR
13580-03H00
|
$163.37 | ||
|
Available to order. Add to View Price |
|||
|
#3
.SCREW
13602-03H00
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#4
INJECTOR ASSY, FUEL
15710-03H30
|
$332.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
.O RING
15716-03H00
|
$20.17 | ||
|
Available to order. Add to View Price |
|||
|
#6
.O RING
15717-03H00
|
$18.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
SENSOR, BOOST
15630-29G10
|
$304.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
.COVER
15625-29G00
|
$14.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET
15640-03H00
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE
18598-03H00
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIPE, INTAKE
13101-49F60
|
$143.54 | ||
|
Available to order. Add to View Price |
|||
|
#12
INSULATOR,INTAKE PIPE
13128-03H10
|
$10.24 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (D:2.4,ID:33.7)
09280-34004
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01547-0625A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
09402-48208
|
$5.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
